Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Performance BXNUC10I5FNKPA3
Workstation

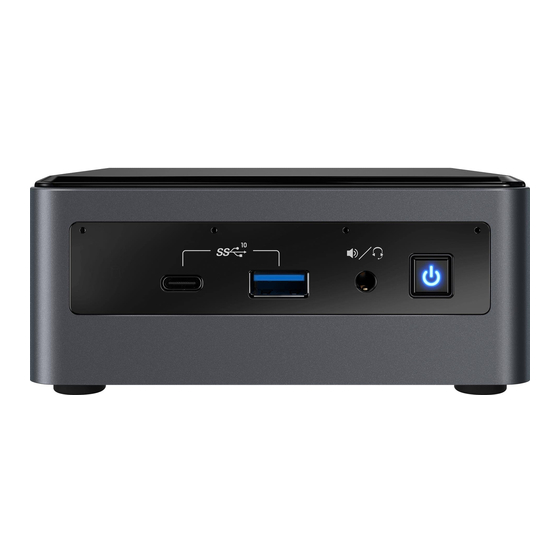

User Guide for NUC10i7FNK, NUC10i5FNK, NUC10i3FNK
Intel® NUC Kit NUC10i7FNK
Intel® NUC Kit NUC10i5FNK
Intel® NUC Kit NUC10i3FNK
User Guide
1
o cerca il tuo prodotto tra le
Intel NUC 10
migliori offerte di PC Desktop e
Advertisement
Related Manuals for Intel NUC 10 Performance
Summary of Contents for Intel NUC 10 Performance
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Intel NUC 10 Performance BXNUC10I5FNKPA3 o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation User Guide for NUC10i7FNK, NUC10i5FNK, NUC10i3FNK Intel® NUC Kit NUC10i7FNK Intel® NUC Kit NUC10i5FNK Intel® NUC Kit NUC10i3FNK User Guide...
-
Page 2: Before You Begin
If such a station isn’t available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: •... -
Page 3: Open The Chassis
Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. Installing and Removing Memory Intel NUC Kits NUC10i7FNK, NUC10i5FNK and NUC10i3FNK have two 260-pin DDR4 SO-DIMM sockets. Memory requirements: • 1.2V low voltage memory •... -
Page 4: Install So-Dimms
User Guide for NUC10i7FNK, NUC10i5FNK, NUC10i3FNK Install SO-DIMMs If you plan to install just one SO-DIMM, install it in the lower memory socket. To install the SO-DIMMs, follow these steps: 1. Observe the precautions in "Before You Begin" on page 2. 2. -
Page 5: Install An M.2 Ssd
• NUC10i3FNK NOTE Before changing the Intel Optane memory module, it needs to be disabled. Follow Removing Intel Optane Memory on this page first, before taking the module out. If you’re installing an 80mm M.2 SSD: 1. Remove the small silver screw from the 80mm (A) and 42mm (B) metal standoff on the motherboard. -
Page 6: Close The Chassis
User Guide for NUC10i7FNK, NUC10i5FNK, NUC10i3FNK Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. Attach and Use the VESA Bracket (Optional) NOTE VESA bracket is not included for Intel®... - Page 7 User Guide for NUC10i7FNK, NUC10i5FNK, NUC10i3FNK 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket.
-
Page 8: Connect Power
Connect Power Country-specific power cords are included in the Intel NUC Kit box. Connect AC power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes Power cord type BXNUC10i7FNK, No power cord included. -
Page 9: Install An Operating System
Install an Operating System Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems and versions of Linux that have been reported as compatible by Intel NUC owners. Refer to Operating System Installation for system requirements and installation steps.
