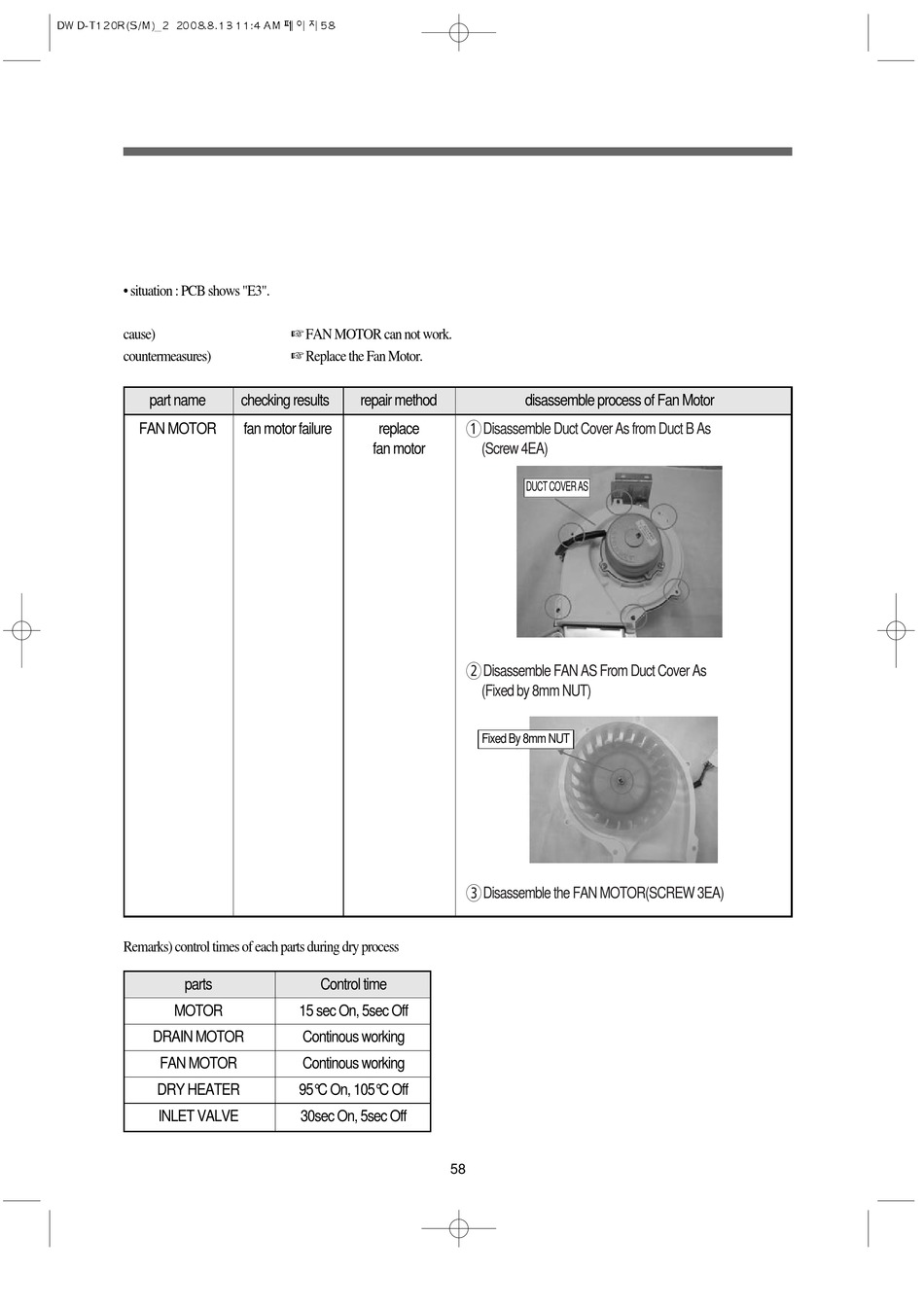

• situation : PCB shows "E3".
cause)
countermeasures)
part name checking results
FAN MOTOR fan motor failure
Remarks) control times of each parts during dry process
parts
MOTOR
DRAIN MOTOR
FAN MOTOR
DRY HEATER
INLET VALVE
FAN MOTOR can not work.
Replace the Fan Motor.
repair method
1Disassemble Duct Cover As from Duct B As
replace
fan motor
2Disassemble FAN AS From Duct Cover As
3Disassemble the FAN MOTOR(SCREW 3EA)
Control time
15 sec On, 5sec Off
Continous working
Continous working
95°C On, 105°C Off
30sec On, 5sec Off
58
disassemble process of Fan Motor
(Screw 4EA)
DUCT COVER AS
(Fixed by 8mm NUT)
Fixed By 8mm NUT
