- Page 1 3 IN 1- 2” FLOORING STAPLER/ CLEAT NAILER KIT performance performance plus plus MODEL: 8266FSN-3 INSTRUCTION MANUAL COPYRIGHT © 2011 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information

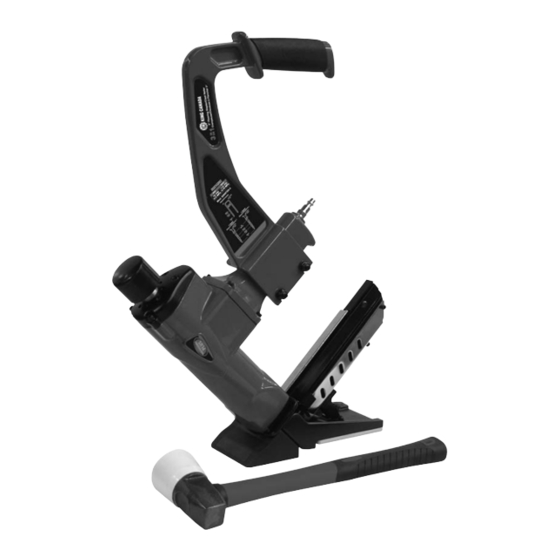

LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 GETTING TO KNOW YOUR 3 IN 1 FLOORING STAPLER/NAILER 1/4” Air inlet Magazine rear cover Staple/Cleat Nail insert area Pusher lock/ release button Staple/Cleat Nail Magazine driving cap Pusher Adjustable front block Non-marring base (1 of 2) Staple/Cleat (5/8” and 3/4”) nail driving mallet SPECIFICATIONS...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this flooring stapler/nailer. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the flooring stapler/nailer. Use filtered, lubricated and regulated compressed air only. - Page 5 LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your flooring stapler/nailer needs to be lubicated before and after the first time you use it. • Disconnect the air supply from the flooring stapler/nailer before lubricating. • Turn the flooring stapler/nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet.
- Page 6 LOADING FLOORING STAPLER/NAILER & CLEARING JAMS LOADING FLOORING STAPLER/NAILER MAGAZINE Loading Cleat Nails • Disconnect the air hose from the flooring stapler/nailer air inlet. • Pull all the way back on the pusher (A) to the end of the magazine. Lock pusher in place using the lock button (B).
-
Page 7: Adjustments And Operation
ADJUSTMENTS AND OPERATION ADJUSTMENTS Changing Non-Marring Bases This flooring stapler/nailer comes with 2 non-marring bases (3/4” & 5/8”). These bases reduce scratches and damage but they also allow you to set the height at which the staple/cleat nail penetrates your workpiece depending on the thickness of the floor and the position of the tongue. -
Page 8: Maintenance And Troubleshooting
& tear. To repair, a complete Driver, Bumper & O-ring Replacement Accessory Kit (model: KW-138) is available for your flooring stapler/nailer. Contact your local King Canada distributor for more information. A replacement nylon-fibreglass mallet (model: KW-139) is also available. Contact your local King Canada distributor for more information.
