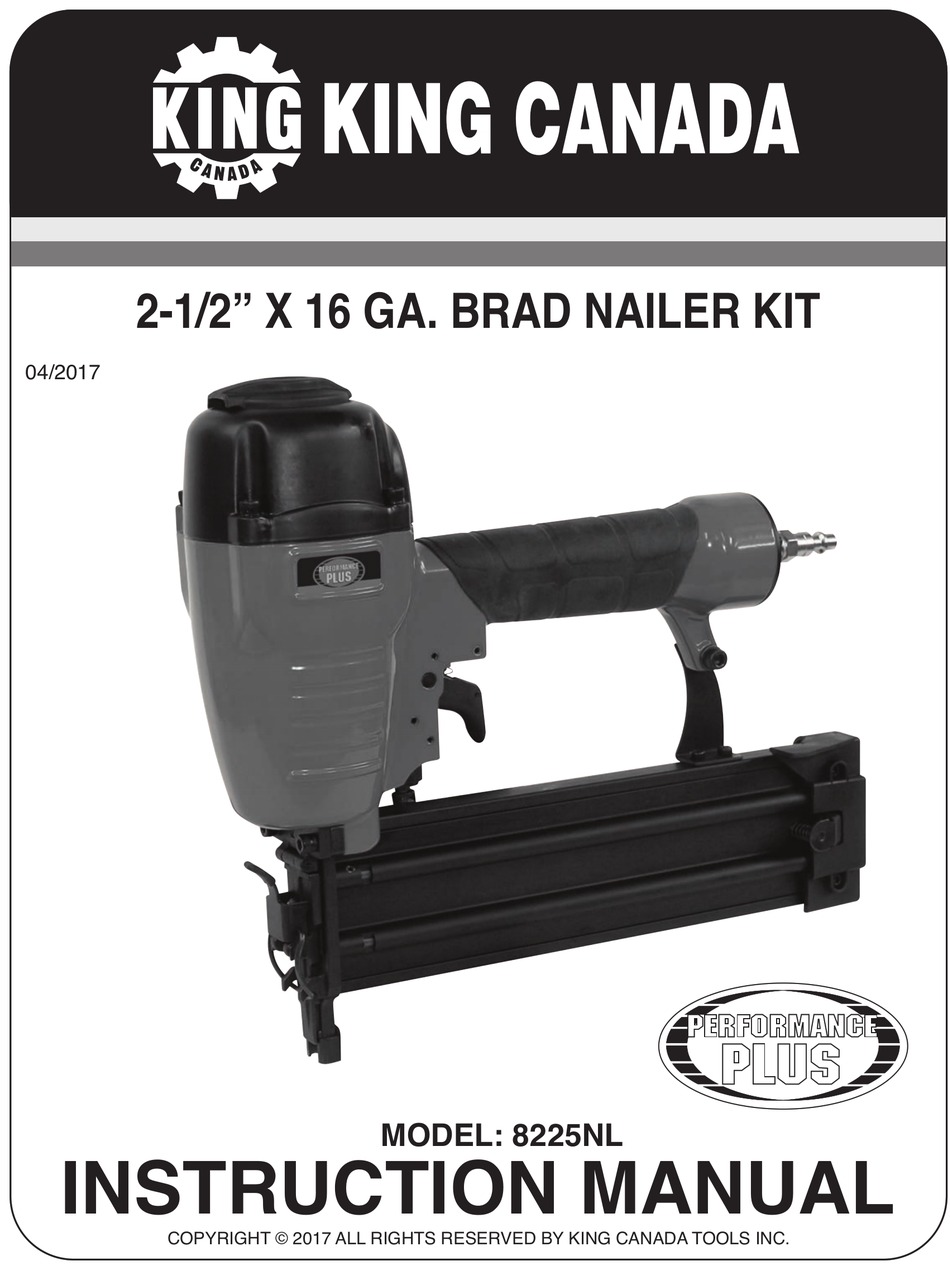

- Page 1 2-1/2” X 16 GA. BRAD NAILER KIT 04/2017 INSTRUCTION MANUAL MODEL: 8225NL COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Proof Of Purchase
King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. - Page 3 Magazine Nail discharge area Nail loading area Safety release SPECIFICATIONS Model......................................8225NL Air inlet ......................................1/4” NPT Compressed air: Maximum permissible operating pressure........................120 PSI (8.3 bar) Recommended operating pressure range ..........................70-120 PSI Nail range ..........................3/4” to 2-1/2” 16 Ga. brad head finish nails Nail capacity ................................100 16 Ga.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this nailer. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the nailer. Use filtered, lubricated and regulated compressed air only. - Page 5 LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your nailer needs to be lubricated before and after the first time you use it. • Disconnect the air supply from the nailer before lubricating. • Turn the nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet.
-
Page 6: Operational Modes
OPERATIONAL MODES (SEQUENTIAL AND BUMP FIRE MODE) OPERATIONAL MODES This brad nailer may be operated in either “sequential” or “bump fire” mode. This brad nailer is shipped with a black trigger installed, this black trigger allows “sequential” firing. A separate red trigger for “bump fire” mode is included and needs to be installed to use. - Page 7 LOADING NAILER & CLEARING JAMS LOADING NAILER MAGAZINE • Disconnect the air hose from the nailer air inlet. • Depress the magazine latch, pull back on the magazine cover. • Insert a stick of nails into the magazine. Make sure the pointed ends of the nails are as close to the bottom edge of the magazine as possible, ensuring the head of the nail is aligned with the appropriate machined groove in the magazine.
- Page 8 OPERATING YOUR NAILER OPERATING YOUR NAILER WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing protection. Employers are responsible for ensuring the user or anyone near the nailer wears the above mentioned safety protection. WARNING! Check and replace any damaged or worn components.
-
Page 9: Maintenance And Troubleshooting
After prolonged use of your Nailer, the internal O-rings, Bumper & Driver may have to be replaced due to wear & tear. To repair, a complete Driver, Bumper & O-ring Replacement Accessory Kit is available for your Nailer (model: KW-158). Contact your local King Canada distributor for more information.
