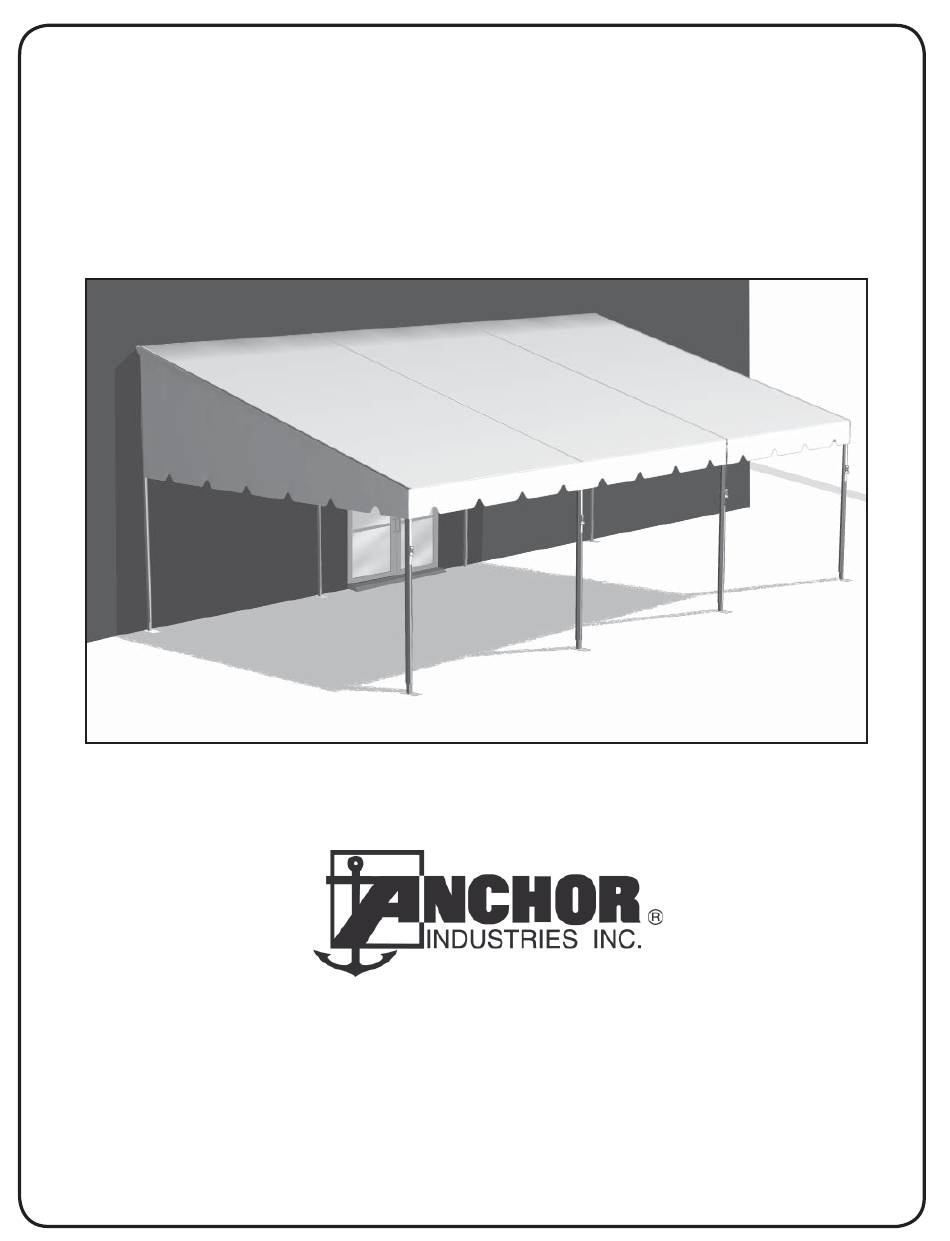

Installation Instructions
Navi-Trac
Please read all assembly / installation instructions before the installation or removal of this product.
EC 3597
LT/CS Pavilion
®
12' to 24' Projection
7701 Highway 41 N
Evansville, IN 47725
Phone: 812-867-2421
Fax: 812-867-1429
1-800-544-4445
email: tents@anchorinc.com
www.anchorinc.com
NTLTPAV 0211
Rev 717
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anchor Navi-Trac LT/CS
Summary of Contents for Anchor Navi-Trac LT/CS
- Page 1 Installation Instructions Navi-Trac LT/CS Pavilion ® 12’ to 24’ Projection Please read all assembly / installation instructions before the installation or removal of this product. 7701 Highway 41 N Evansville, IN 47725 Phone: 812-867-2421 Fax: 812-867-1429 1-800-544-4445 email: tents@anchorinc.com www.anchorinc.com NTLTPAV 0211 EC 3597 Rev 717...
- Page 2 The installation method described here requires coordination of tasks between workers. A safe installation is dependent on that coordination. Please work cooperatively as a team. Anchor recommends a factor of safety of at least 2X be used to resist all loads.
-
Page 3: Parts List
Parts List NAVI-TRAC LT/CS PAVILION 10X20 10X10 12X20 12X10 14X20 14X10 16X20 16X10 18X20 18X10 20X20 20X10 22X20 22X10 24X20 24X10 COMPONENT DESCRIPTION ALUMINUM EXTRUSION ANODIZED W/5 CHANNEL OPENINGS #1417C #1418C #1403 #1404 #1405 #1406 #1407 #1408 #1409 #1410 #1411... -
Page 4: Parts Illustrations
PARTS ILLUSTRATIONS EPL - LEFT EAVE END R/L (OPPOSITE RIDGE WELDMENT WELDMENT SHOWN) (RIGHT SHOWN) EAVE WELDMENT BASE PLATE BASE PLATE ADJUSTABLE ADJUSTABLE 2-HOLE 4-HOLE EYE NUT AND BOLT TENSION LOCK END UPRIGHT EAVE WELDMENT RAFTER “X” CABLE FRAME ATTACHING BRACKET PARTS SHOWN ARE NOT TO SCALE. - Page 5 ASSEMBLED FRAME ILLUSTRATIONS RAFTER - 12’ PROJECTION (1) FRAME ATTACHING RP-12 BRACKET ASSY SUP- RIDGE PLIED FOR EACH UPRIGHT REAR EAVE, REAR UPPER SPLICE FOR DROP-IN ATTACHMENT TO EXIST. EE-10 RAFTER “X” CABLES BUILDING. END LEFT WELDMENT RIDGE WELDMENT ASSY NOTE: UPRIGHTS ARE 8’...
- Page 6 PLAN VIEW OF 3 BAY STRUCTURE (22’ Projection shown) Point B Point C BACK OF PAVILION C L Uprights C L Uprights Upright centered on end required only on structures above 20’ projection. (2) Hole Base Plate required at this position only.
-
Page 7: Step 1 - Parts Layout
Step 1 - Parts Layout Ridge 22’ Projection Frame Shown • Follow the directions on the previ- Weldment ous page for squaring and marking Rafter Splice for the frame. Projection Rafter Upright • Lay out the parts neatly in their ap- Rear proximate location, as if the frame Eave End... - Page 8 Step 3 - Raising the Beam Arches • Raise fi rst beam. Tie off securely or hold up using adequate installation personnel. Note: There are no stakes or guys included with this frame, however, the installation kit (sold separately) includes eye bolt and eye nut for attaching to frame along with safety webs that may be used to stake or tie-off frame to stabilize the fi...
- Page 9 Before placing frame in fi nal position, attach frame attaching bracket to upright rear upper splice on each rear upright. • Remove stablizer plate, washer and hex nut from rod U-Shaped stabilizer may not on bracket. be used at corner uprights •...
- Page 10 Step 4 - Joining Beam Arches Join in the order listed: (Figure 4a) • Front Eave - slide one end of front eave tube onto end eave weldment with bottom channel down. Align holes and pin with one of the pins attached to the weldment. Figure 4b. •...
- Page 11 Curved hook end Square hook end Purlin Ridge Weldment Ridge Rafter Figure 4e Rafter Purlin Figure 4d Figure 4f Step 4 - Cont’d Continue raising beams and attaching them until frame is completely assembled. Connect all cables and tighten. Measure to be sure frame is square and in proper position.
- Page 12 Step 6 - Fabric End Fabric Ends Installation Rafter • With one installer at top of the end rafter, feed eave end of kedar into top chan- nel opening of ridge weldment and down into rafter until end of kedar reaches the end of the rafter.
- Page 13 Step 7 - Fabric Tensioning • At back of pavilion, snap buckles of back-end straps to corresponding buckles at bottom of mids. Insert bottom hook into slot at back of upright. Tighten just enough so that hook does not fall out of slot. (Figure 7a) •...
- Page 14 Step 8 - Fastening Frame to Existing Building • At back of pavilion, adjust the frame attaching bracket so that is is fi tted up to existing building. • Customer must determine and install the type of device that is best suited to attach frame to existing building. U-Shaped stabilizer may not be used at corner uprights due to fabric interference.
- Page 15 Notes:...
-
Page 16: Phone Number
Regardless of the number of stakes we suggest, we make no representation or warranty as to whether this specifi c number of stakes will meet the local tent code. Anchor does not, nor can it make any suggestions, representation, or warranties about the adequate staking required at each specifi...
