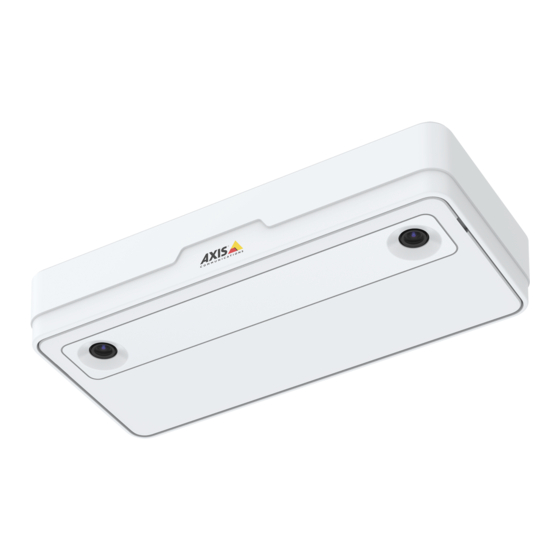

Axis P8815-2 User Manual

3d people counter
Hide thumbs Also See for P8815-2:
Table of Contents

Advertisement

Quick Links

Download this manual
AXIS People Counter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P8815-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P8815-2

Summary of Contents for Axis P8815-2

  • Page 1 AXIS People Counter User Manual...

  • Page 2: Table Of Contents

    AXIS People Counter ........

  • Page 3: Solution Overview

    AXIS People Counter AXIS People Counter is an analytic application that you can install on a network camera. You can use the application to count how many people pass through an entrance, in what direction they pass, and if more than one person passes during a predefined interval.

  • Page 4: What's The Difference Between Axis People Counter And Axis P8815-2 3D People Counter

    • AXIS People Counter recognizes objects that move in the field of view and identifies them as people based on their overall size and movement. AXIS People Counter is suitable for most scenarios, covering single as well as double door entrances.

  • Page 5: Get Started

    • As a rule-of-thumb, the camera covers an area as wide as the camera’s mounting height. For details about a specific camera model, see the Camera selector for AXIS People Counter • After installation, the covered area can be increased depending on the camera’s zoom setting.
  • Page 6 AXIS People Counter Get started • If you install the application before you install the camera, you can use the counting area indicated in the live view to position the camera. The counting area should go from left to right, perpendicular to the path where people cross.

  • Page 7: Find The Device On The Network

    Loitering people or large objects that sway slightly could interfere with the counting. Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 8: Secure Passwords

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
  • Page 9 1. Go to www.axis.com/applications 2. Go to License key registration. You need the license code and the Axis device serial number. 3. Save the license key file on the computer and select the file when the application asks for it.

  • Page 10: Configure The Application

    2. For more information about user accounts, click Set up the counter To check if the application is calibrated for your camera, go to the Camera selector for AXIS People Counter tool. To watch this video, go to the web version of this document.

  • Page 11: Adjust The Counting Area

    If you need to cover a wide entrance with several counters you can set up multiple cameras, also called Neighbor counters. To calculate how many cameras are needed to cover the entire width of the entrance, use the Camera selector for AXIS People Counter.
  • Page 12 5. Go back to the primary camera’s webpage and paste the credentials into the form under Neighbor counters. 6. If the cameras are configured to send data to AXIS Store Data Manager, make sure that only the primary camera is connected.

  • Page 13: Set Up A Schedule

    AXIS People Counter Configure the application Primary camera view Secondary camera view Reference object 10. Once the calibration is done, go to Live view in the primary camera to view all of the secondary cameras. If you can’t see the video stream from the secondary cameras in the primary camera, make sure that there are no other connections to the secondary cameras running.

  • Page 14: Copy The Application Settings To Another Camera

    For areas with more than one entrance, you need to install cameras with AXIS People Counter installed at each one. You connect the cameras to each other, and assign the primary occupancy role to one of them and the secondary occupancy role to the other ones.
  • Page 15 The occupancy application automatically detects when the occupancy area is open or closed by observing the flow of visitors. Consequently, full-day analysis also means that the primary camera only sends statistical data once a day to AXIS Store Data Manager. Smart and naive occupancy mode You can run the occupancy estimation in either smart or naive mode.
  • Page 16 AXIS People Counter Configure the application Naive occupancy mode If you select the naive occupancy mode, the application estimates the occupancy by counting “people coming in” minus “people coming out”. This estimation is not as sophisticated as the smart occupancy mode, and the occupancy error accumulates over time.

  • Page 17: Set Up Rules And Alerts

    AXIS People Counter Configure the application Set up rules and alerts Send an email when the occupancy level exceeds the limit This example explains how to set up a rule to send an email when the number of people inside the premises exceeds a limit. In the example, the limit is 200.

  • Page 18: Validate The System

    AXIS People Counter Validate the system Validate the system Note Before you validate the system, make sure you have mounted the camera according to the recommendations. See Mount the camera on page 5 . When you have installed and set up all cameras in the building, we recommend that you validate the accuracy and fine-tune the system.

  • Page 19: Statistics

    Library. • Use AXIS Store Data Manager, a software package that acts as a central point to store and manage data collected from all devices. See Connect a camera to a folder in AXIS Store Data Manager on page 19.

  • Page 20: Download Statistics

    AXIS People Counter Statistics Download statistics 1. Go to Statistics > Download statistics. 2. Select the file format: If you select .xml, .csv or .json format you can also select the time interval. File format .cnt is a proprietary, binary format, available for compatibility reasons.

  • Page 21: Troubleshooting

    Troubleshooting Troubleshooting Issue Action The software doesn’t upload to AXIS Store Data Manager. The most common reason is network communication problems. Run the connection test under Settings > Reporting to get information about the root cause for the problem. The software doesn’t count.

  • Page 22: Generate A Log Report

    AXIS People Counter Troubleshooting Generate a log report If you have any trouble with your device you can generate a log report. 1. Go to Maintenance > Logs. 2. Click Generate logs. 3. The browser saves the file on the default download browser on the computer.

  • Page 23: The Light Web Interface

    There is a light-weight version of the web interface at the URL http://<servername>/people-counter/lite/index.html. These pages can for instance be used to embed the application into systems, for example AXIS Camera Station or Milestone's XProtect Smart Client. There are four pages available: •...

  • Page 24: Api Information

    AXIS People Counter API information API information ® You can find the API documentation for AXIS People Counter in VAPIX Library, under Applications > People counting apps API...
  • Page 25 User Manual Ver. M10.2 AXIS People Counter Date: August 2021 © Axis Communications AB, 2017 - 2021 Part No. T10098452...
