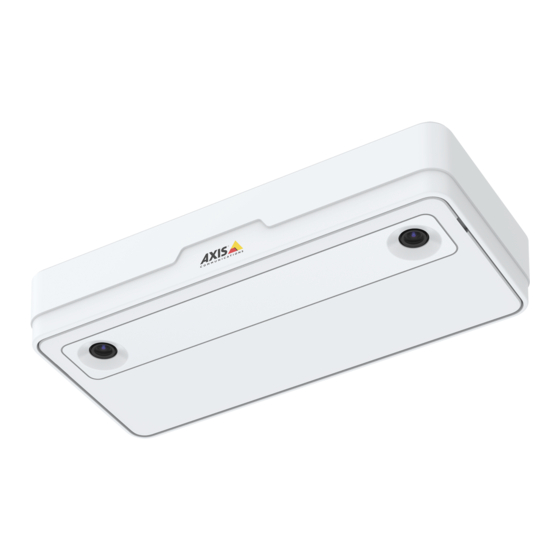

- Page 1 AXIS P8815-2 3D People Counter User Manual...
- Page 2 AXIS 3D People Counter AXIS 3D People Counter is an analytic application that is embedded in the device. This means that you don’t need a dedicated computer to run the application. AXIS 3D People Counter is intended for indoor use in, for example, retail environments like stores or...
- Page 3 • AXIS People Counter recognizes objects that move in the field of view and identifies them as people based on their overall size and movement. AXIS People Counter is suitable for most scenarios, covering single as well as double door entrances.
- Page 4 • AXIS 3D People Counter calculates the depth within the maximum counting area in order to measure the height and the size of the object. AXIS 3D People Counter is suitable for crowded scenarios and scenes with challenging light conditions...
- Page 5 Get started Get started To get started with AXIS 3D People Counter: 1. Connect, find, and access the device: Connect the device to the network on page 5 , Find the device on the network on page 6 , Access the device on page 6 2.
- Page 6 Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
- Page 7 AXIS P8815-2 3D People Counter Get started The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we strongly recommend that you: •...
- Page 8 AXIS P8815-2 3D People Counter Get started • Make sure the device is facing straight down, in line with the ceiling. It’s important that both the ceiling and the floor are level. • Make sure there is sufficient white light on site.
- Page 9 AXIS P8815-2 3D People Counter Get started • Loitering people or large objects that sway slightly could interfere with the counting. Mounting height and coverage The table shows the maximum width and depth that can be covered by a single device at a given mounting height. The mounting height is the distance from the floor to the back of the device.
- Page 10 AXIS P8815-2 3D People Counter Configure the counter Configure the counter If the area of interest can be covered by a single device, follow the instructions in Configure a single device on page 10 If the area of interest is too wide to be covered by a single device, you can connect multiple devices to increase the width of the counting area.
- Page 11 AXIS P8815-2 3D People Counter Configure the counter 6. Click Save. 7. Go to Advanced > Troubleshooting and turn off Application in test mode. Configure multiple devices Important For reporting of statistics to work, the date and time must be synchronized between the devices. We recommend you to use an NTP server to keep the devices synchronized.
- Page 12 AXIS P8815-2 3D People Counter Configure the counter Primary device’s view Secondary device’s view Reference object 17. To change which side of the counting area is the entrance and exit, click Reverse in/out direction under Counting area. 18. Click Save.
- Page 13 AXIS P8815-2 3D People Counter Additional settings Additional settings Create a user account You can create user accounts with different privileges, so that unauthorized personnel can view statistics but not change any settings of the counter. To create a user account: 1.
- Page 14 15. • Use AXIS Store Data Manager, a software package that acts as a central point to store and manage data collected from all devices. See Connect the device to a folder in AXIS Store Data Manager on page 15.
- Page 15 Download statistics to your computer, see Download statistics on page 16. Connect the device to a folder in AXIS Store Data Manager 1. In AXIS Store Data Manager, go to Sources and get the Folder connection identifier and the Folder connection password for the folder you want to connect to.
- Page 16 AXIS P8815-2 3D People Counter Integration Download statistics 1. Go to Statistics. 2. Click Export data. A comma-delimited (.csv) file with all statistics data from the device is saved locally.
- Page 17 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...
- Page 18 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).
- Page 19 Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.
- Page 20 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Need more help? Useful links •...
- Page 21 AXIS P8815-2 3D People Counter Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Product overview Control button Status LED Fastening point for safety wire, M4 Fastening point for camera stand, 1/4”–20 UNC...
- Page 22 AXIS P8815-2 3D People Counter Specifications Connectors Network connector RJ45 Ethernet connector with Power over Ethernet (PoE).
- Page 23 User Manual Ver. M3.7 AXIS P8815-2 3D People Counter Date: September 2020 © Axis Communications AB, 2019 - 2020 Part No. T10145094...
