Summary of Contents for Smeg SEIM562B
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg SEIM562B cerca il tuo prodotto tra le migliori offerte di Cucine e Piani cottura...
- Page 3 ENGLISH Installation Page 8 Instructions for use Page DEUTSCH Installation Seite 17 Bedienungsanleitung Seite FRANÇAIS Installation Page 27 Mode d’emploi Page NEDERLANDS Installatie Pagina 35 Gebruiksaanwijzing Pagina ESPAÑOL Instalación Página 44 Instrucciones de uso Página PORTUGUÊS Instalação Página 53 Instruções de utilização Página ITALIANO Installazione...
- Page 4 R = Min. 6,5 mm Max. 8 mm Min. 50 mm 483 mm...
- Page 5 Min. 10 cm Min. 5 mm Min. 5 mm Min. 3 cm Max. 6 cm...
-
Page 6: Important Safety Instructions
ENGLISH Installation Page Instructions for use Page IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety messages, to be read and always observed. This is the danger symbol, regarding safety, warning of potential risks to users and others. All safety messages will be preceded by the danger symbol and the following words: DANGER Indicates a hazardous situation which, if not avoided, will result in serious injury. -
Page 7: Safeguarding The Environment
- Do not place flammable materials on or near the appliance. - Overheated oils and fats catch fire easily. Pay attention when cooking food products rich in fat and oil. - A separator panel (not supplied) must be installed in the compartment under the appliance. - If the surface is cracked, switch off the appliance to avoid the possibility of electric shock (only for appliances with glass surface). -
Page 8: Recommended Pot Bottom Widths
EXISTING POTS AND PANS Use a magnet to check if the pot is suitable for the induction hob: pots and pans are unsuitable if not magnetically detectable. Make sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes. Never place hot pots or pans on the surface of the hob’s control panel. -
Page 9: Electrical Connection
ELECTRICAL CONNECTION Disconnect the appliance from the power supply. WARNING Installation must be carried out by qualified personnel who know the current safety and installation regulations. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the regulations provided in this chapter. - Page 10 INSTRUCTIONS FOR USE Control Panel Description Control panel Eco-logic step 1 On/Off Timer Control panel lock/Special function/ Eco-logic step 1 Eco-logic step 2 and 4 Cooking zone controls and corresponding display Switching the hob ON/OFF To switch the hob on, press the button for approx.
- Page 11 Control panel warnings. Special functions (If available) Some models have special functions: Residual heat indicator. The hob is fitted with a residual heat indicator for each cooking zone. These indicators alert the user when cooking zones are still hot. If the display shows , the cooking zone is still hot. If the residual heat indicator of a given cooking zone is lit, that zone can be used, for example, to keep a dish warm or to melt butter.

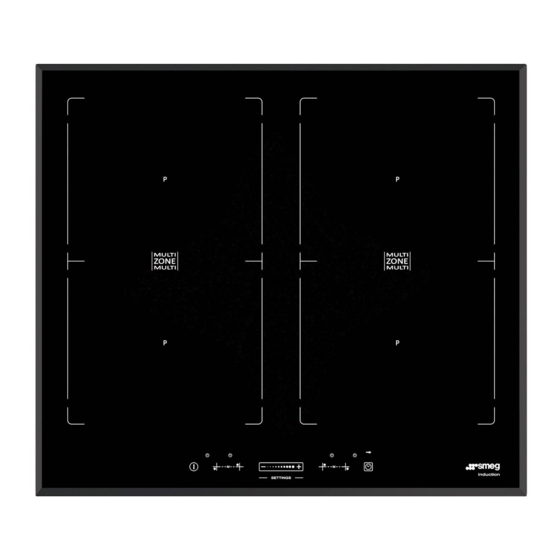

- Page 12 Multizone Where present, this function allows the cooking zone to be used as two separate zones or as a single extra large zone. It is perfect for oval, rectangular and elongated pans (with maximum base dimensions of 38x23 cm) or more than one standard pan in the same time. In order to activate the Multizone function, switch on the hob, press simultaneously the 2 selecting buttons of the zones as shown in the picture below: the two cooking zone displays show level “0”;...
-
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE • Read and follow the instructions given in the section “Instructions for use”. • Check that the electricity supply has not been shut off. • Dry the hob thoroughly after cleaning it. • If, when the hob is switched on, alphanumeric codes appear on the display, consult the following table for instructions. •... -
Page 14: Power Level Table
POWER LEVEL TABLE Power level Type of cooking Level use (indicating cooking experience and habits) Ideal for rapidly increasing the temperature of food to fast boiling in the case of water or rapidly Boost Fast heating heating cooking liquids Max. power Ideal for browning, starting to cook, frying deep frozen products, fast boiling Frying - boiling Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time,... - Page 18 06/12 400010730817...
