Grosvenor BP-001-DG Installation Manual

Version 1.1 August 2020

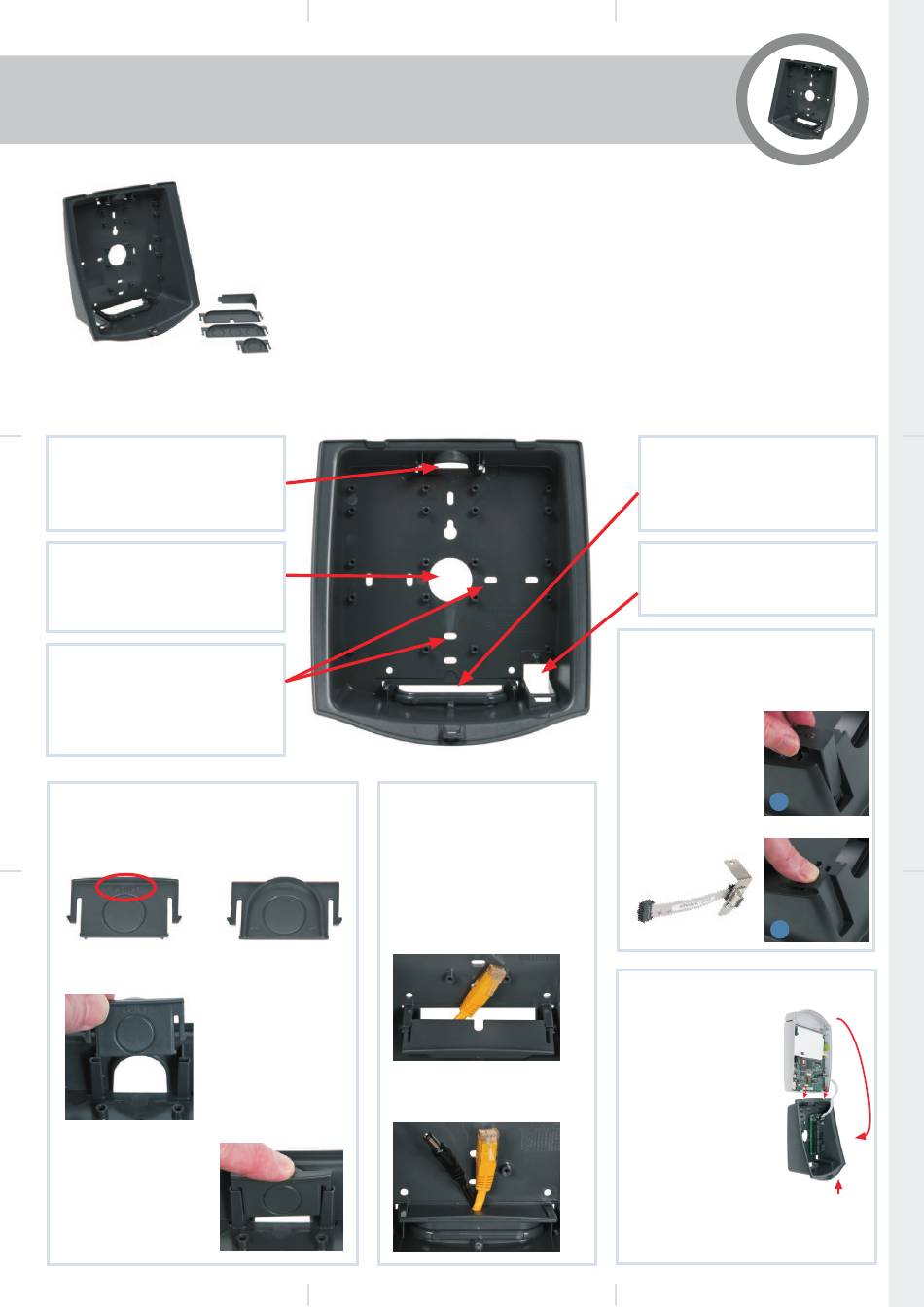

Back Panel
Installation Guide
BP-001-DG
Top Cable Entry
Blanking plate
Conduit entry
Option pod fitting
Rear Cable Entry
For concealed wiring
When mounted directly to a
back box
Fixing Holes
Variety of back box fixing
centres
Keyhole for easy wall fitting
Pips on back for uneven walls

Fitting Blanking Plates

Correctly orientate blanking plate - the embossed
number faces inwards
Faces Inside
Locate barbs in Back
Panel grooves
Push home until it clicks
IT31, IT51, RS21
and GT4

General

The BP-001-DG is a durable moulded
Back Panel for the:
RS21
IT31
IT51
GT4
The Back Panel provides a variety
of mounting options and cable entry
schemes to facilitate both flexibility and
speedy installation.

Mousehole Blanking Plate

The Mousehole Blanking
Plate allows cables with large
connectors to be inserted without
the need for removal.
Pass the connector through the
large lower aperture and then clip
the Mousehole Plate into place.
Faces Outside
The Mousehole can accommodate
CAT5 cable plus flat power cable.
Interchangeable clip-in blanking
plates for conduit/gland cable entry or
quick install 'Mousehole' plate
Clip in top-entry blanking plate /
accessory mounting
External connector mounting position
e.g. for barcode wand with clip-in
blanking plate
Mounting positions for Extension
Modules, Power Supply and Battery
Backup options
Bottom Cable Entry
Blanking plate
Conduit entry
Mousehole plate
External Connector Aperture
Blanking plate
External connector adapter

External Connector Blanking Plate

The Back Panel is supplied with a clip-in
blanking plate for the External Connector
aperture.
1. Locate tongue in
Back Panel slot.
2. Press home until
it clicks
1
External Connector
Adapter may be fitted
here using screw
provided.
2

Fitting the front Panel

Once the Back Panel
is secured, any option
modules fitted and wiring
installed then the Front
Panel can be fitted.
Plug-in any cables to the
Front Panel then hooking
the tabs on the top of
the Front Panel into the
locating points in the Back
Panel hinge down the
Front Panel into its final
position.
Secure with single screw at
bottom of Front Panel
Front Panel
fixing screw
location
