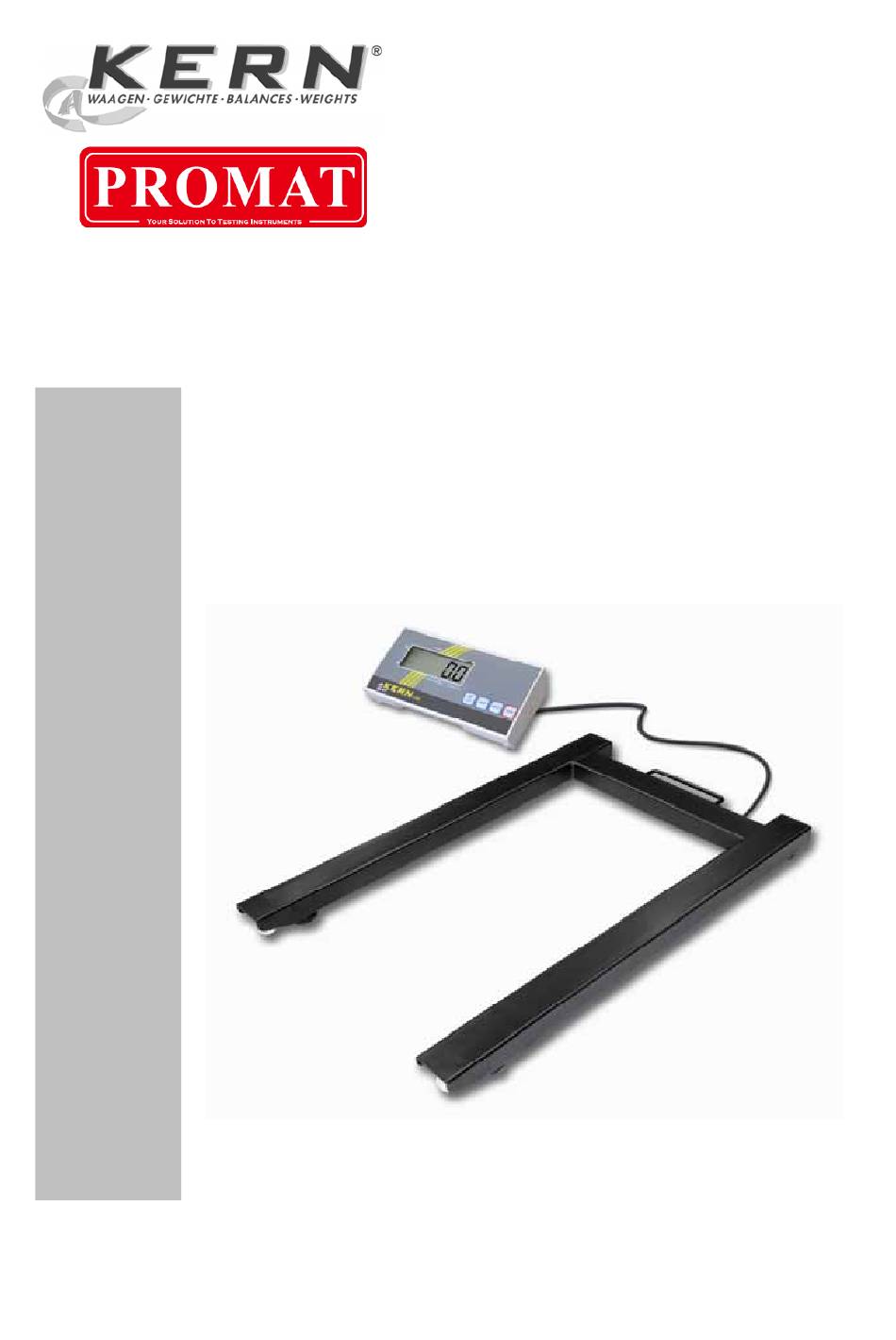

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating Manual Pallet scales KERN UOB Version 1.3 05/2009 UOB-BA-e-0913...
-
Page 2: Table Of Contents
KERN UOB Version 1.3 05/2009 Operating Manual Pallet scales Table of Contents Technical Data__________________________________________________ 4 Declaration of conformity ________________________________________ 5 Appliance overview _____________________________________________ 6 Basic Information (General)_______________________________________ 6 Proper use _______________________________________________________ 6 Improper Use ____________________________________________________ 6 Warranty ________________________________________________________ 7 Monitoring of Test Resources _______________________________________ 7... - Page 3 Load or unload the pallet scales ____________________________________ 17 Weighing _______________________________________________________ 17 Taring (TARE button) _____________________________________________ 18 Hold function (animal weighing function) ____________________________ 19 Weight units ____________________________________________________ 19 Service, maintenance, disposal___________________________________ 20 Cleaning _______________________________________________________ 20 Service, maintenance _____________________________________________ 20 Disposal________________________________________________________ 20 Instant help _________________________________________________ 21 UOB-BA-e-0913...
-
Page 4: Technical Data
1 Technical Data KERN 600K200 1.5T0.5 Readability (d) 200 g 0.5 kg Weighing range (max) 600 kg 1500 kg Reproducibility 300 g 0.5 kg Linearity 400 g 1 kg Recommended 500 kg 1000 kg adjustment weight, not (M2) (M2) added (class) Stabilization time (typical) 3 sec. -
Page 5: Declaration Of Conformity
Standards 2004/108/EC EN 61000-6-1 : 2007 EN 61000-3-2 : 2006 61000-3-3 : 1995+A1 : 2001+A2:2005 EN 61000-6-3 :2007 Date: 27.10.2008 Signature: Gottl. KERN & Sohn GmbH Management Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149 UOB-BA-e-0913... -
Page 6: Appliance Overview
The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. UOB-BA-e-0913... -
Page 7: Warranty
Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be... -
Page 8: Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 5.2 Personnel training The appliance may only be operated and maintained by trained personnel. -
Page 9: Unpacking, Setup And Commissioning
7 Unpacking, Setup and Commissioning 7.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: •... -
Page 10: Unpacking
Make sure that the balance and the weighing terminal are not damaged during transport. 7.2.1 Scope of delivery Serial accessories: KERN UOB • Platform (varnished metal) and display equipment • 4 x adjustable feet • Mains power supply • Wall fixture (with fixing screws) •... -
Page 11: Assembly Instructions For The Use Of The Wall Fixture
7.4 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. 7.5 Battery operation Remove battery cover from under the display unit. Connect 6 x 1.5V mignon cells. -
Page 12: Initial Commissioning
7.6 Initial Commissioning A warming up time of 5 minutes after switching on stabilizes the measuring values. The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment. 7.7 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). - Page 13 Procedure when adjusting: Observe stable environmental conditions. A short warming up time of ca. 5 minutes is recommended for stabilization. Operation Display Use the button to switch the balance on. UNIT SETUP Keep button depressed for approx. 3 sec until "SETUP" is displayed followed by "UNIT" UNKT Press the button as often as required until...
- Page 14 CAL 5 Press button Press button . Enter the required size of the adjustment weight (See Section 1, "Technical Data"): u000 Press the button to select the item to be (Example) changed and press the button to select the numerical value. UNIT Confirm with button...
-
Page 15: Operation
Operation 8.1 Overview of display 0.000 Max 1500 kg d = 0.5 kg UNIT Display Description Balance zero display: [→0←] Should the balance not display exactly zero despite an empty scale pan, press the [→0←] button. Your balance will be set to zero after a short standby time. [ο] Stability display: If the display shows the stability display [ο] the balance... -
Page 16: Keyboard Overview
8.2 Keyboard overview Description Turn on/off balance Set balance to zero UNIT Hold/ animal weighing function Tare balance 8.3 Operation limits The pallet scales is designed for an even distributed load. • Avoid falling load, shock loads and impacts from the side. •... -
Page 17: Load Or Unload The Pallet Scales
8.4 Load or unload the pallet scales • Place the load on the scales using a pallet lifting truck, a crane or a forklift truck. Ensure that the load is not swinging when it is placed onto the scales. • Lift the load first vertically at least 10 cm above the scales before it is removed or newly placed. -
Page 18: Taring (Tare Button)
8.6 Taring (TARE button) Operation Display Switch-on the balance using the key and wait for the „0“ display. Place the tare vessel on the weighing plate and press the button. The balance display goes to „0“. The weight of the container is now internally saved. If one after finishing the weighing process presses again the TARE button, „0“... -
Page 19: Hold Function (Animal Weighing Function)
8.7 Hold function (animal weighing function) The balance has an integrated animal weighing function (mean value calculation). Using this function it is possible to weigh domestic or small animals exactly (min. load 1% of the max. one), although they do not stand quiet on the weighing plate. There is no average value calculation in the event of too much movement (heavy display oscillation). -
Page 20: Service, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 9.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 9.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 21: Instant Help
10 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Help: Fault Possible cause • The balance is not switched on. The displayed weight does not glow.
