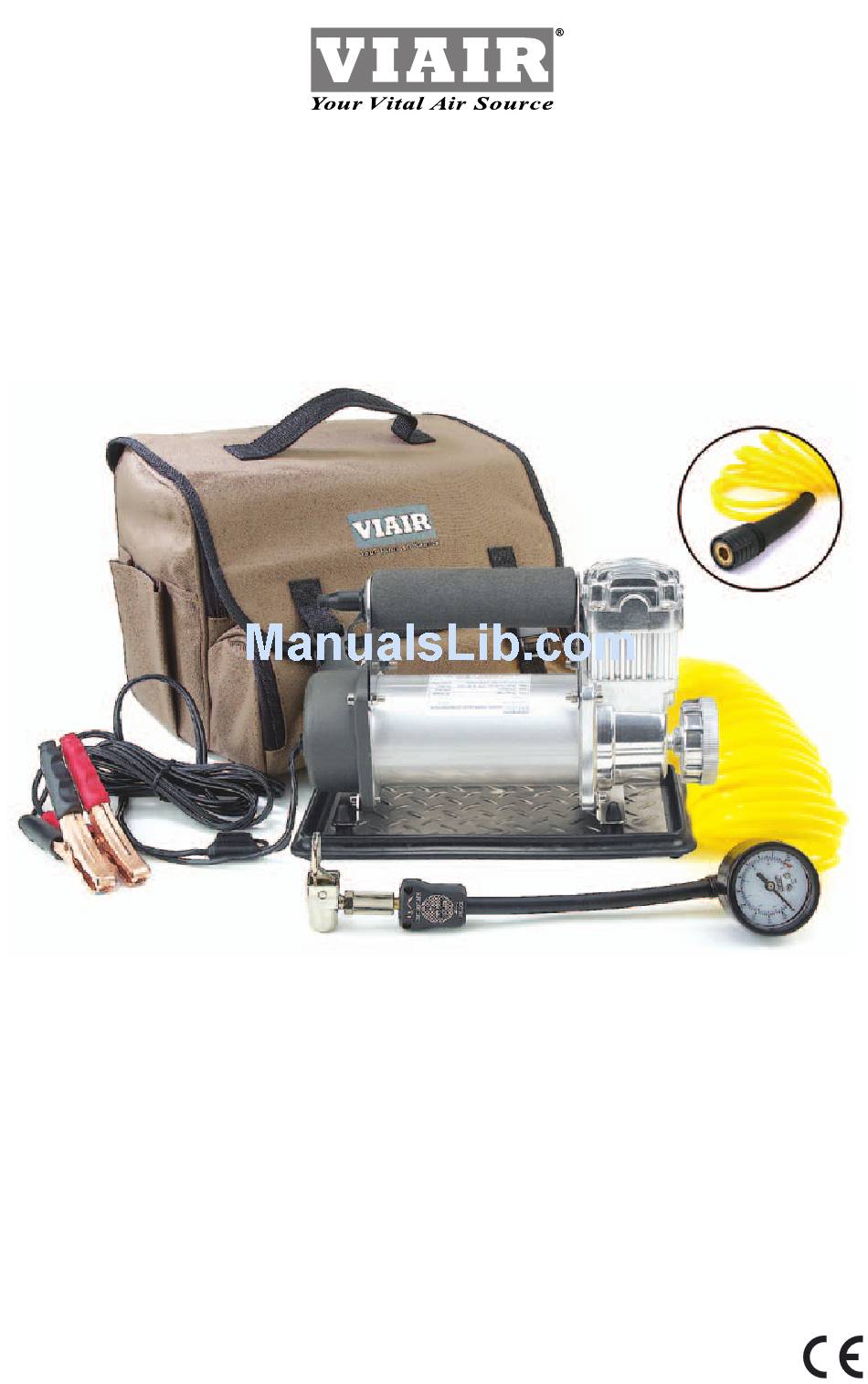

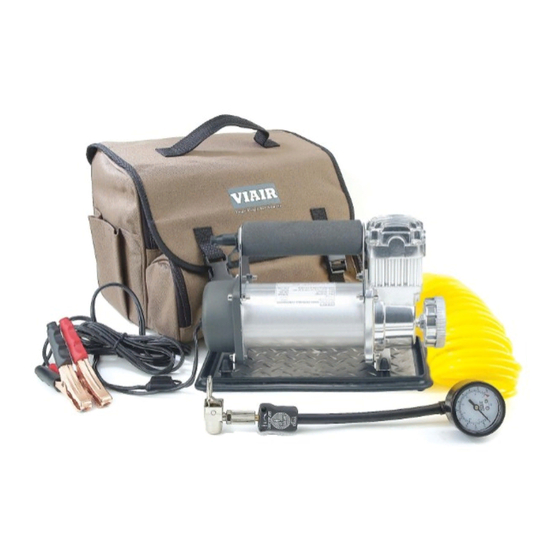

400P PORTABLE COMPRESSOR
HEAVYWEIGHT SERIES
PART NO. 40043
IMPORTANT:
It is essential that you and any other operator of this
product read and understand the contents of this manual
before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
USER MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIAIR 40043
Summary of Contents for VIAIR 40043
- Page 1 400P PORTABLE COMPRESSOR HEAVYWEIGHT SERIES PART NO. 40043 IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Important Safety Instructions
400P PORTABLE COMPRESSOR IMPORTANT SAFETY INSTRUCTIONS: CAUTION: To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in or area where it can fall or be pulled into water or other liquids. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-volt DC systems only. - Page 3 400P PORTABLE COMPRESSOR OPERATING INSTRUCTIONS (cont’d): IMPORTANT: Engine must be running while using this compressor. Before attaching air compressor’s power cord to power source, check to make sure that the ON/OFF switch of your compressor is in the OFF position. Attach the Positive battery clamp (Red) to the Positive terminal of the battery and the Negative battery clamp (Black) to the Negative terminal of the battery. CAUTION: Your Portable Air Compressor is Moisture and Dust Resistant, but NOT WATER OR DUST PROOF. Never place compressor in soft sand while running the compressor. Vibration from the compressor will cause the compressor to settle into soft sand, resulting in compressor drawing in foreign particles. Never expose compressor to water while running the compressor. This air compressor comes with ¼” quick connect stud. Your Inline Deflator comes with extension coil hose with ¼”...
-
Page 4: Safety Precautions
6. The use of a close-ended tire chuck will cause excessive pressure buildup if tire chuck is not attached to tire valve stem while air compressor is in operation. IMPORTANT: Always use an Open-Ended tire chuck such as the tire chuck equipped on the Deflator/Inflator Coil Hose for tire inflation when using a compressor without an air tank. CAUTION: The extension hose and fittings connected extension hose will become very HOT during and after use. If necessary, wear heat resistant gloves to remove hose from the compressor quick connect stud. MAINTENANCE & REPAIRS: Your air compressor is equipped with permanently lubricated, maintenance-free motor. Never try to lubricate the compressor. Regularly clean dust and dirt from compressor cooling fins and motor housing. All repairs should be performed by Manufacturer or Manufacturer authorized service agencies only. MODEL 400P SPECIFICATIONS: Part Number: 40043 / 400P Motor Voltage: 12-volt Motor Type: Permanent Magnetic Max. Intermittent Pressure: 150 PSI Max. Duty Cycle: 33% (15 on / 30 off) (Min. On/Off @ 72ºF & 100 PSI) Continuous Use @ 72ºF & 30 PSI: Approx. 40 Minutes Max. Current Consumption: 30 Amps Fuse:...
