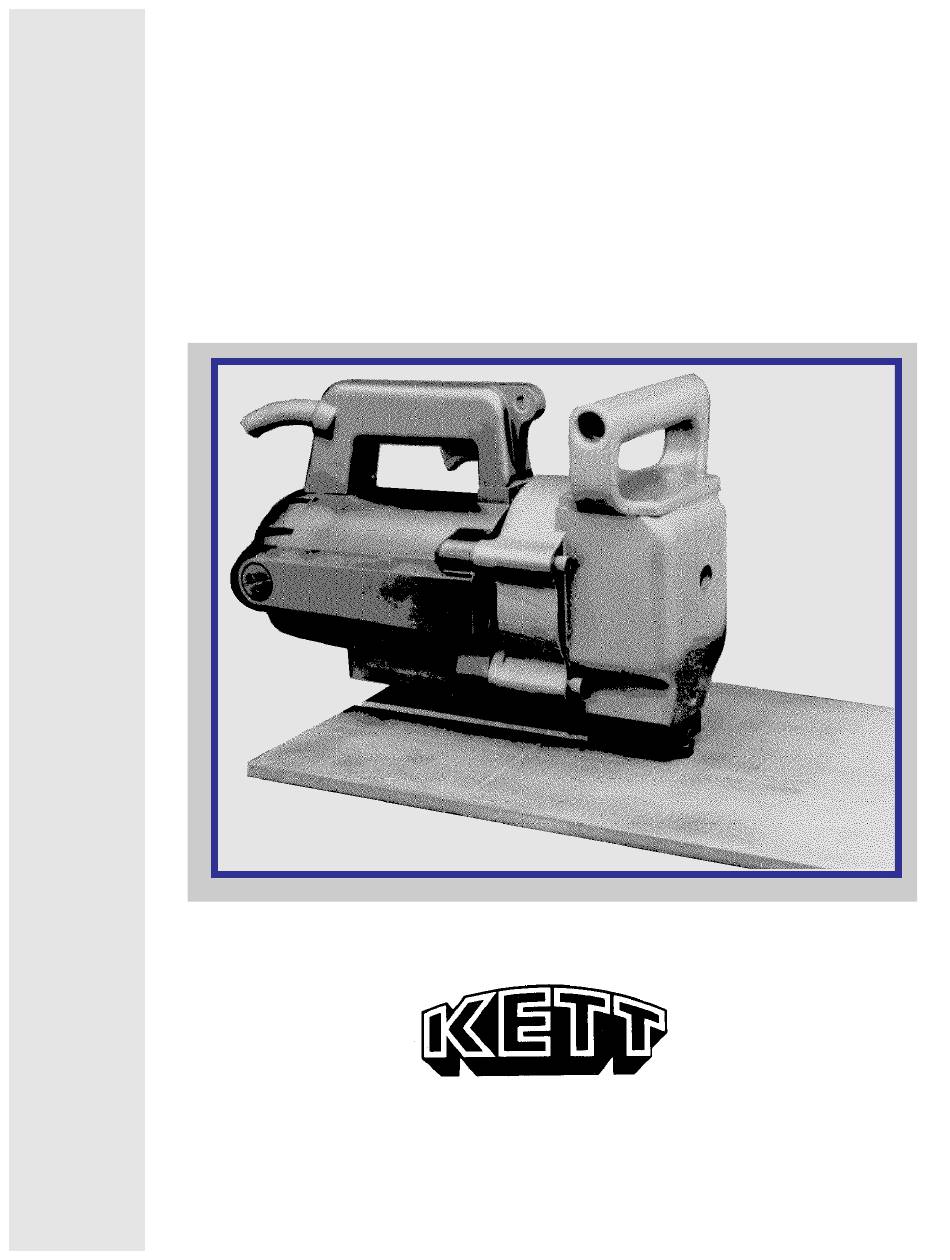

- Page 1 SUPER MODEL NIBBLER SUPER HEAVY DUTY 3/8" CAPACITY KETT TOOL COMPANY 5055 MADISON ROAD CINCINNATI, OHIO 45227-1494 513/271-0333 FAX 513/271-5318 MADE IN U.S.A.
- Page 2 11 Always make frequent checks on motor brushes, replacing if worn. 12. Your KETT / FENWAY model "SUPER" motor body is provided with four 5/16 -18 tapped holes on a 3 inch square bolt pattern. When bench mounted, your "SUPER" Nibbler becomes a handy tool for shaping small metal parts up to 3/8 inch thick, which may be fed into punch by hand with ease.
- Page 3 REPLACEMENT PARTS When servicing, use only original KETT / FENWAY replacement parts. FOR ALL TOOLS - GROUNDED AND DOUBLE INSULATED DISCONNECT TOOLS When not in use; before servicing, when changing accessories such as punch, die, brushes, etc. KEEP WORK AREA CLEAN Cluttered areas and benches invite accidents.
- Page 4 Field Spring "T" WRENCH N3048 Rear Armature Bearing N7044 Carbon Brush N3059 Button Plug CARTRIDGE PAK LUBRICANT * Includes: N7026 N0109 N7035 ** Includes: N7001, N3002, N3003, N3004, N3016, N3017, SHIM N3012, N3013, N5032, N7026 KETT / Fenway Super Nibbler 4...
- Page 5 Figure 2 Figure 3 NOTE: ENGINEERING CHANGE NEW DIE HOLDER (21) IS SELF ALIGNING AND DOES NOT REQUIRE DIE ADJUSTING BLOCK (9) KETT / Fenway Super Nibbler 5...
- Page 6 Reassemble and turn nibbler over with "T" wrench before connecting power. NOTE: FURTHER DISASSEMBLY REQUIRES SPECIAL TOOLING AND PROCEDURE AND MAY RESULT IN DAMAGE WHICH WILL NOT BE REPAIRED UNDER WARRANTY. RETURN TOOL TO AUTHORIZED KETT/FENWAY SERVICE FACILITY IF FURTHER DISASSEMBLY IS NECESSARY. KETT / Fenway Super Nibbler 6...
