AMG Systems AMG5424R Instruction Manual

Dual system with 2x independent channels

Advertisement

Quick Links

Dual System with 2x Independent Channels each of:
[Receive Unit with one Bi-directional Data Channel and one
Bi-directional Alarm for a Multimode Fibre Link]
The AMG5424R is a DUAL rackmount data receive unit which provides two independent channels,
each designed to transmit and receive 1 bi-directional alarm and transmit and receive 1 data signal
over one Multimode optical fibre.
The AMG5424R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a
19" rack system.
The AMG5424R is designed to operate with two AMG5413 single channel or one AMG5423 /
AMG5424R dual channel transmit units in a point to point configuration. The R suffix in the partno.
indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5424R
Instruction Manual
Page 1 of 8
AMG5424R Instruction Sheet D17406-
00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG5424R and is the answer not in the manual?

Questions and answers

Summary of Contents for AMG Systems AMG5424R

  • Page 1 1 bi-directional alarm and transmit and receive 1 data signal over one Multimode optical fibre. The AMG5424R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a 19" rack system.
  • Page 2: Table Of Contents

    Removal / replacement from / to the Case ..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5424R Instruction Sheet D17406- document without notice. The information herein is believed to...
  • Page 3: Introduction

    Optical Connection The AMG5424R connections are illustrated in the following example which shows two AMG5413 single channel transmit units together with an AMG5424R configured as a dual channel point to point system. AMG Systems Ltd. reserves the right to make changes to this...
  • Page 4: Connections

    RS-422 – Switch Position - Middle RS-232 – Switch Position - Bottom Alarm Output ........Solid-state Relay, maximum 150mA at 125Vac/dc, Ron < 6.5Ω AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5424R Instruction Sheet D17406- document without notice.
  • Page 5: Front Panel Indicators

    ALARM 2 OUT........Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5424R Instruction Sheet D17406- document without notice. The information herein is believed to...
  • Page 6: Data And Alarm Channel Configuration

    Data and Alarm Channel Configuration The AMG5424R sends and receives data to/from up to two AMG5413 single channel or one AMG5423 or AMG5423R rackmount equivalent dual channel transmit units. Each physical data interface RS-485, RS-422 or RS-232 is individually selectable by the user with the corresponding slide switch mounted on the main PCB inside the enclosure.
  • Page 7: Data Interface Connections

    Note: (A) or (B) in brackets in the above table refers to RS-485 / RS-422 data specification. Alarm Channel Configuration The AMG5424R provides one bi-directional alarm output / contact closure input per channel. The alarm input is typically connected to a contact closure switch. An ALARM IN+ input incorporates a 330R pull-up resistor to the internal +3V3 supply.

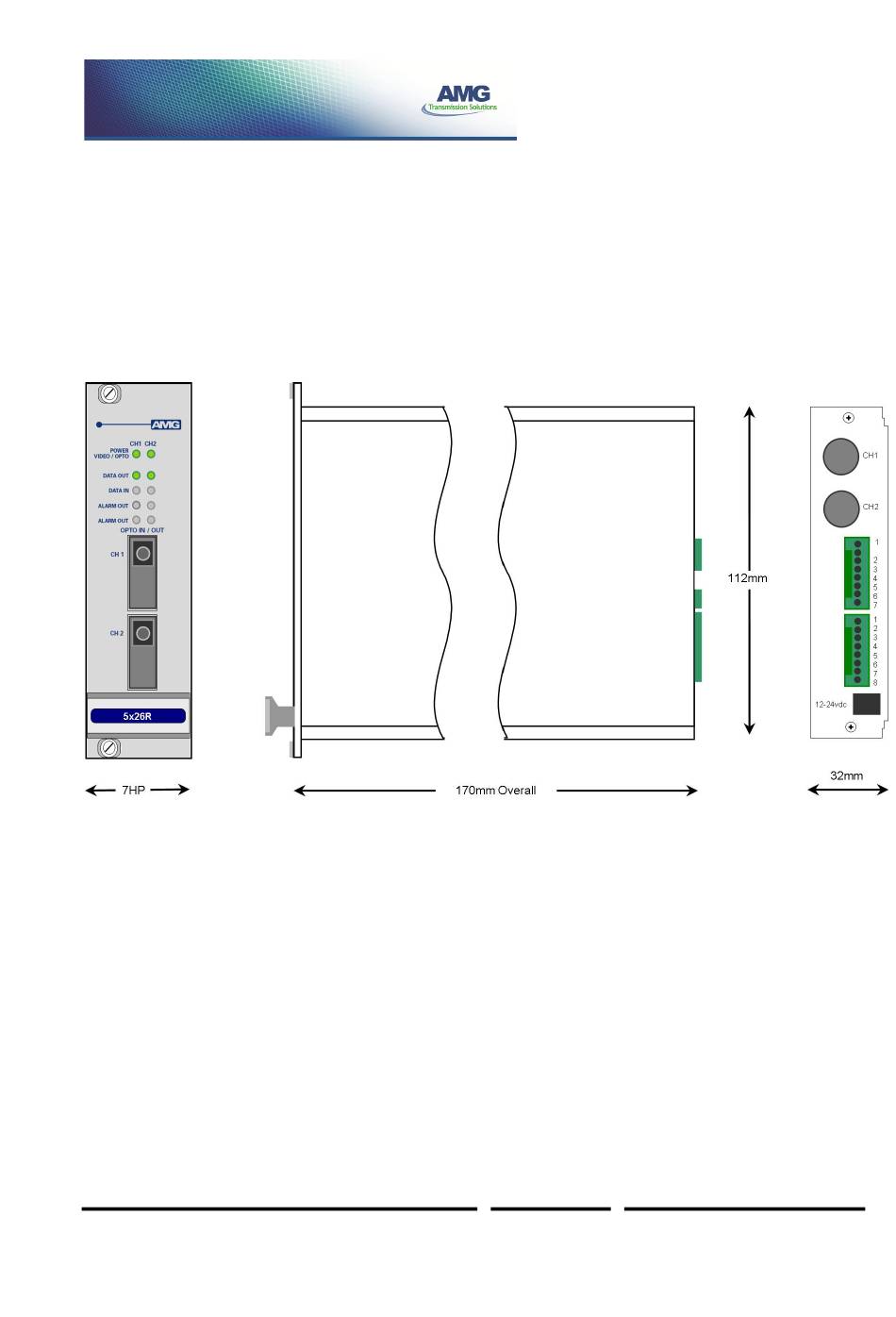

  • Page 8: Physical Information

    There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
