AMG Systems AMG2747-SF Instruction Manual

4 Channel Video TX Unit with 4 bi-directional data

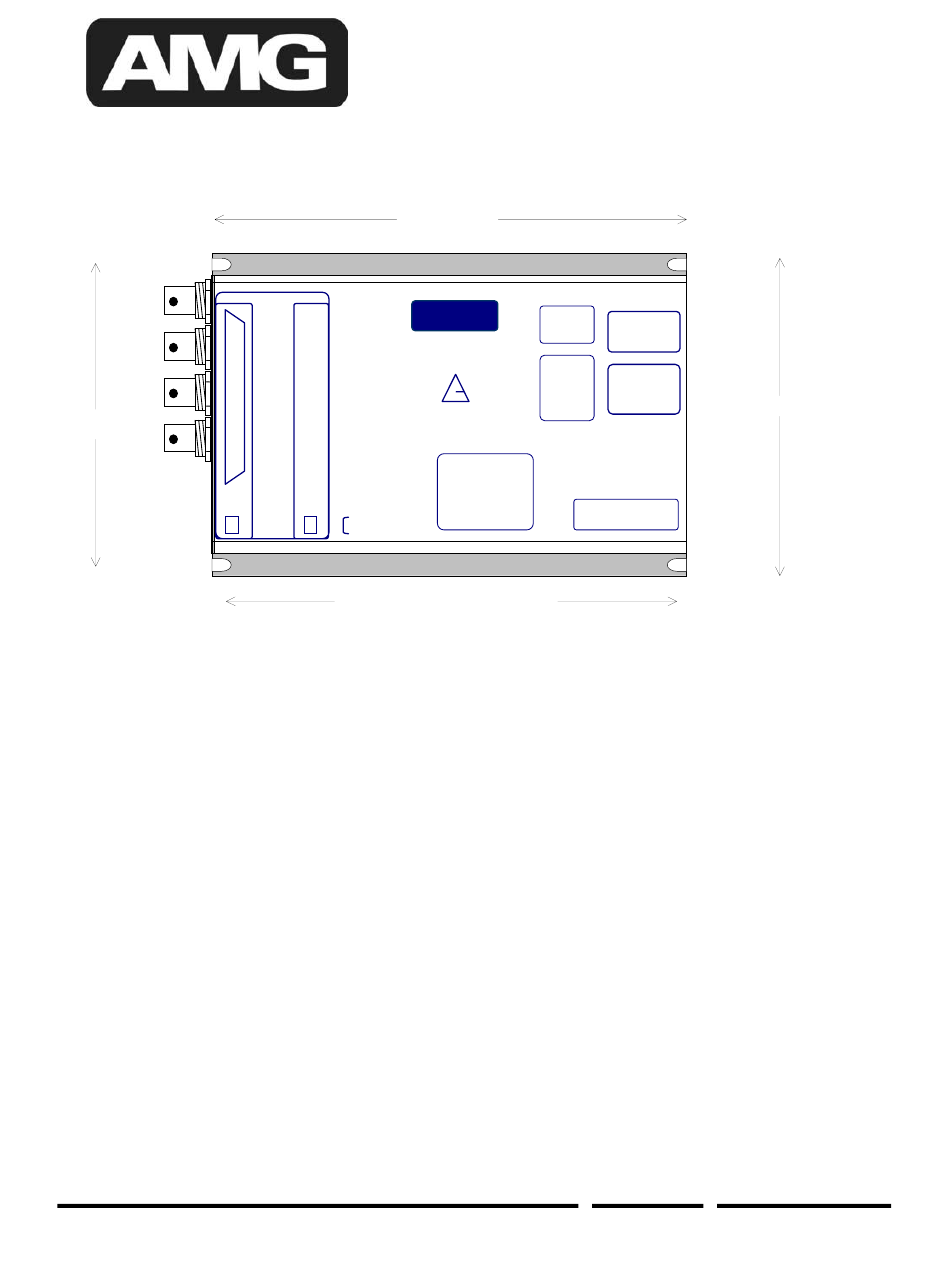

REAR PANEL CONNECTIONS
Data
122mm Between
Slot Centres
POWER
The AMG2747-SF is a four channel video transmit unit. It also has the capacity to transmit and receive
four data and four audio signals. The data and audio interfaces are enabled by fitting data and audio
interface daughter boards. All the signals are transmitted and received over one single mode optical fibre.
The AMG2747-SF is a standalone unit.
The AMG2747-SF is designed to operate with AMG2748R-SF four channel video receive unit with four
channels of bi-directional audio and with four channels of bi-directional data.

Connections

Video Output Connections
No of Channels....................................4
Connectors .........................................75 ohm BNC Socket.
Input Impedance..................................75 ohm terminated.
Input Level ...........................................1 volt p-p nominal
Frequency Response ..........................10Hz to 5.75MHz min.
Data And Audio Connections
No. of Data Channels ..........................4
No. of Audio Channels.........................4
Connector ...........................................All on one 37 way D-Type female connector - shielded.
Connections.........................................See below for connection and configuration
AMG Systems Ltd. reserve the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
and 4 bi-directional audio
167mm Overalll
VIDEO
AMG
CH 1
CH 2
OPTO
IN
CH 3
OPTO
OUT
DATA
CH 4
CONNECTIONS
See instruction
sheet
POWER
GND
+12-16 Volts dc
155mm between mounting slot centres
(4mm slots)
AMG2747-SF
Instruction Manual
FRONT PANEL INDICATORS
OPTO SYNC
DATA CHANNELS
TX O O RX
CH1
CH2
VIDEO PRESENT
AUDIO CHANNELS
CH 1 CH2
CH1
O O
* CH2
CH 3 CH4
CH3
O O
CH4
2747-SF
4 CHANNEL VIDEO
TRANSMIT
+
4 BI-DIRECTIONAL
POWER
DATA/AUDIO O
Page 1 of 6
O O
RX RX
CH3
O O
TX TX
O O
RX RX
CH4
O O
TX TX
O O
TX RX
O O
TX RX
O O
TX RX
O O 132mm Overall
TX RX
O
AMG2747-SF Instruction
Sheet D15743-00
