Receive Unit with one Bi-directional Highs Speed Data
Channel and one Bi-directional Alarm for a Multimode Fibre

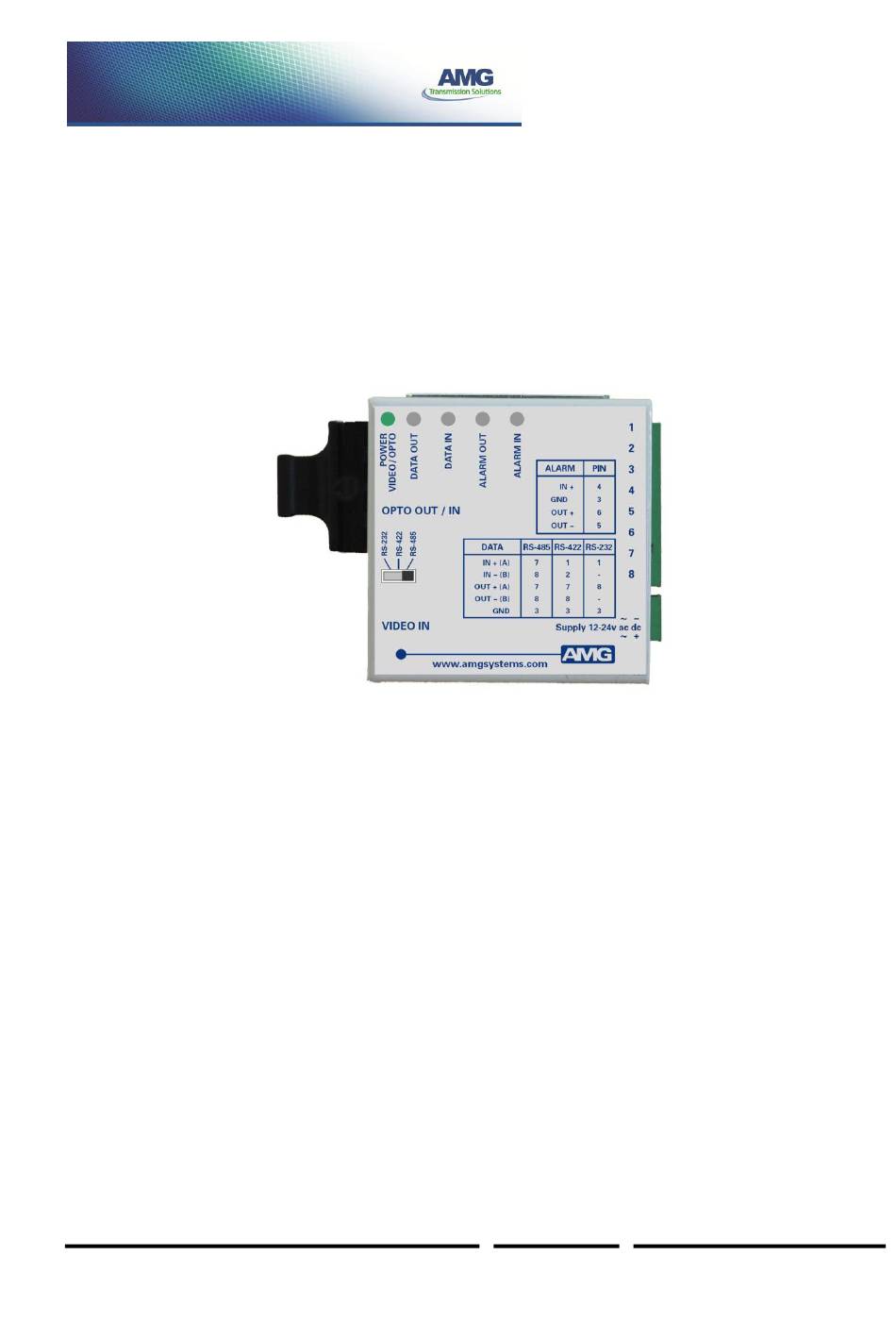

The AMG5414-HS is a compact standalone receive unit designed to transmit and receive 1 data
signal plus 1 Bi-directional alarm over one Multimode optical fibre.
The AMG5414-HS is designed to be powered using an AMG2001 standalone power supply.
The AMG5414-HS is designed to operate with an AMG5413-HS / AMG5413R-HS single channel or
AMG5423-HS / AMG5423R-HS dual channel transmit unit in a point to point configuration. The R
suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Instruction Manual
Link
Page 1 of 8
AMG5414-HS
AMG5414-HS Instruction Sheet
D17397-00.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG5414-HS
Summary of Contents for AMG Systems AMG5414-HS
- Page 1 Channel and one Bi-directional Alarm for a Multimode Fibre Link The AMG5414-HS is a compact standalone receive unit designed to transmit and receive 1 data signal plus 1 Bi-directional alarm over one Multimode optical fibre. The AMG5414-HS is designed to be powered using an AMG2001 standalone power supply.
- Page 2 Physical Information Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5414-HS Instruction Sheet document without notice. The information herein is believed to D17397-00.doc...
- Page 3 Optical Connection The AMG5414-HS connections are illustrated in the following example which shows an AMG5413-HS transmit unit together with an AMG5414-HS receive unit configured as a single channel point to point system. AMG Systems Ltd. reserves the right to make changes to this...
- Page 4 Alarm Input .......... Contact Closure pull-up is 330R to +3V3 Alarm Output ........Solid-state Relay, maximum 150mA at 125Vac/dc, Ron < 6.5Ω AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5414-HS Instruction Sheet document without notice.
- Page 5 ALARM OUT ........Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5414-HS Instruction Sheet document without notice. The information herein is believed to D17397-00.doc...
- Page 6 IN/OUT - (B) OUT - (B) Note: (A) or (B) in brackets in the above table refers to RS-485 / RS-422 data specification. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG5414-HS Instruction Sheet document without notice.
- Page 7 Alarm Channel Configuration The AMG5414-HS provides 1 Bi-directional alarm output / contact closure input. The alarm input is typically connected to a contact closure switch. An ALARM IN+ input incorporates a 330R pull-up resistor to the internal +3V3 supply. The alarm output can receive an on/off signal from an AMG5413-HS and is typically used to convey contact closure status.
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
