Single Channel Video Insert Unit with Bi-directional Data
AM G
PRIMARY OPTO SYNC
SECONDARY OPTO SYNC
O
O
TX O
RX
TX O
RX
VIDEO PRESENT
CH1 O
O
CH1 O
RX
DATA PRESENT
-------------------------
1 CH VIDEO INSERT
+
DATA TX/RX
POWER
POWER
O
O
2783R-1-DR-SF

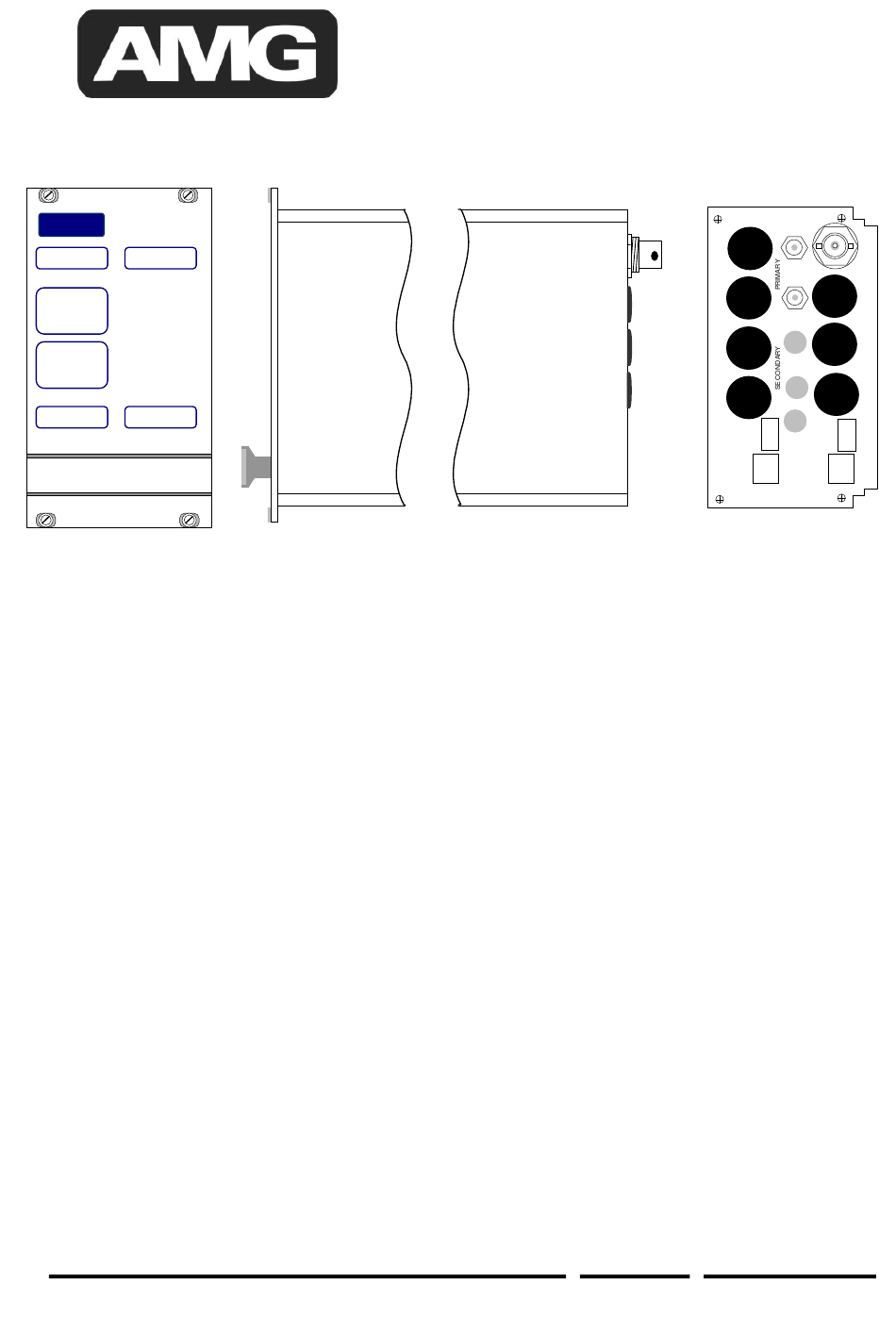

The AMG2783R-1-DR-SF is a single channel video insert unit designed to transmit a video signal on
to a single dual redundant optical fibre ring. It also provides a RS485/RS422 bi-directional data
channel. It is designed to be mounted in an AMG2005 19" rackmount subrack.
The AMG2783R-1-DR-SF is designed to operate with the AMG2784RN-DR-SF eight channel video
and data receiver. Each receiver will 'drop off' up to eight video channels that are being transmitted
around the single fibre ring.
Index
Introduction .......................................................................................................... 2
Connections ......................................................................................................... 4
Indicators ........................................................................................................... 6
Physical Information ........................................................................................... 6
Configuration of the RS422/RS485 Data Channel ............................................ 7
Video Input Channel Configuration ................................................................... 7
SW1 Switch Settings ........................................................................................... 8
Removal from the Case ....................................................................................... 9
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
Dual Redundant on a single fibre ring
Unit Functional Schematic................................................................. 2
Optical System Connection ............................................................... 2
Dual Redundant Operation................................................................ 3
Video Input connection...................................................................... 4
Optical Connections .......................................................................... 4
Power Connections ........................................................................... 4
Data Connections.............................................................................. 5
Dimensions........................................................................................ 6
Mounting Details................................................................................ 6
........................................................................................................... 9
AMG2783R-1-DR-SF
Instruction Manual
Page 1 of 8
OPTO
IN
CH 1
CH 5
OPTO
OUT
CH 2
CH 6
CH 3
CH 7
CH 4
CH 8
D
D
A
A
T
T
A
A
Page No.
AMG2783R-1-DR-SF
Instruction Sheet D15680-
00
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG2783R-1-DR-SF
Summary of Contents for AMG Systems AMG2783R-1-DR-SF
- Page 1 POWER 2783R-1-DR-SF The AMG2783R-1-DR-SF is a single channel video insert unit designed to transmit a video signal on to a single dual redundant optical fibre ring. It also provides a RS485/RS422 bi-directional data channel. It is designed to be mounted in an AMG2005 19” rackmount subrack.
- Page 2 This signal will be repeated around the ring to get back to this AMG2783R-1-DR-SF on the secondary optical route. As the primary optical input is not present on this unit, the data signal will now be taken from the secondary optical input.
- Page 3 Secondary Optical Route Note that where necessary repeaters can be added at nodes to increase the average distance between nodes. AMG Systems Ltd. reserves the right to make changes to this document without Page 3 of 8 AMG2783R-1-DR-SF notice. The information herein is believed to be accurate. No responsibility is Instruction Sheet D15680- assumed by AMG for its use.
- Page 4 Pin 3 – No Connection Pin 2 – Data In/Out- Pin 1 – Data In/Out + AMG Systems Ltd. reserves the right to make changes to this document without Page 4 of 8 AMG2783R-1-DR-SF notice. The information herein is believed to be accurate. No responsibility is Instruction Sheet D15680- assumed by AMG for its use.
- Page 5 – tri-state present on the corresponding data output This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this document without Page 5 of 8 AMG2783R-1-DR-SF notice. The information herein is believed to be accurate. No responsibility is Instruction Sheet D15680- assumed by AMG for its use.
- Page 6 RS-232 Point to Point Note: - the data channel is set at Mode 1 – RS485 operation at the factory unless otherwise requested. AMG Systems Ltd. reserves the right to make changes to this document without Page 6 of 8 AMG2783R-1-DR-SF notice.
- Page 7 On board data / Separate data card RS232 Select RS232 Select AMG Systems Ltd. reserves the right to make changes to this document without Page 7 of 8 AMG2783R-1-DR-SF notice. The information herein is believed to be accurate. No responsibility is Instruction Sheet D15680- assumed by AMG for its use.
- Page 8 60825-2:2000 or your local safety officer. There are no user serviceable parts within the AMG2700 products. In case of problem or failure contact your local support centre or AMG Systems Ltd, Technical Support Department on tel. +44 (0) 1767 600777.
