Connectors

Buttons &
Switches
VIDEO OUT : Connects PC VGA to TV Video Converter - View 2000 EX
to the VIDEO
input of TV/VCR or Video Projector.
S-VIDEO OUT: Connects PC VGA to TV Video Converter - View 2000 EX
to your TV/VCR /Video Projector supporting the S-VIDEO input.
RGB/Y.Cb.Cr OUT: Connects PC VGA to TV Video Converter - View
2000 EX to the VIDEO input of TV/VCR or Video Projector.
SCAN CNVTR: Connects H cable to PC, PC VGA to TV Video Converter
- View 2000 EX and monitor.
DC IN : Plug with power cable (USB or PS/2 type).
SIZE: Switch between UNDERSCAN and OVERSCAN.
ZOOM:Toggle between Zoom and Normal display.

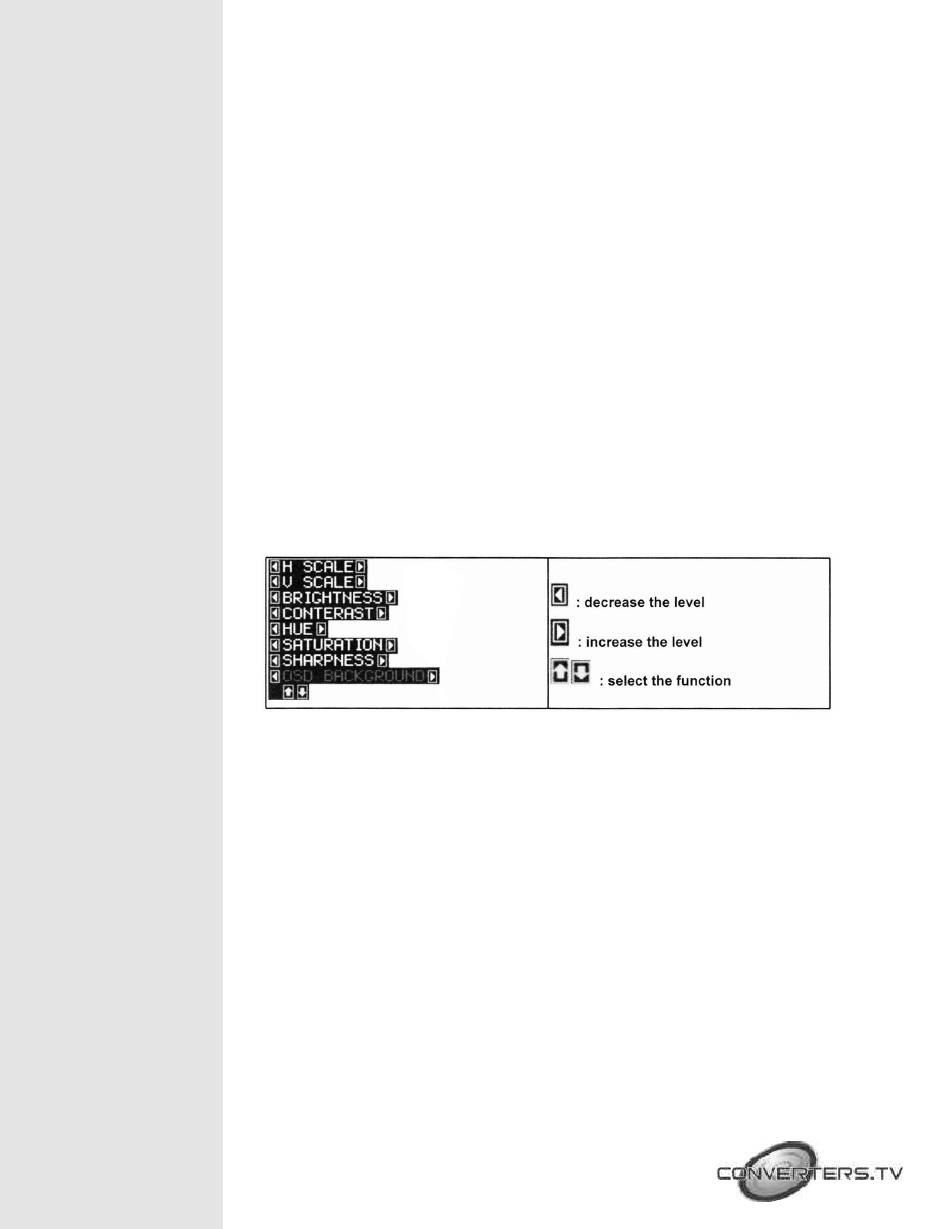

MENU: Press button to cyclically activate the functions. The functions
are
HSCALE,VSCALE, BRIGHTNESS, CONTRAST, HUE,
SATURATION,SHARPNESS & OSD BACKGROUND.
↓:
Press the MENU button then press "
the menu.
↑:
Press the MENU button then press "
the menu.
← :
Select the function then press "
→ :
Select the function then press "
TV system switch Selects the desired video standard output.
↓"
to select the function in
↑"
to select the function in
←"
to decrease the level.
→"
to increase the level.
