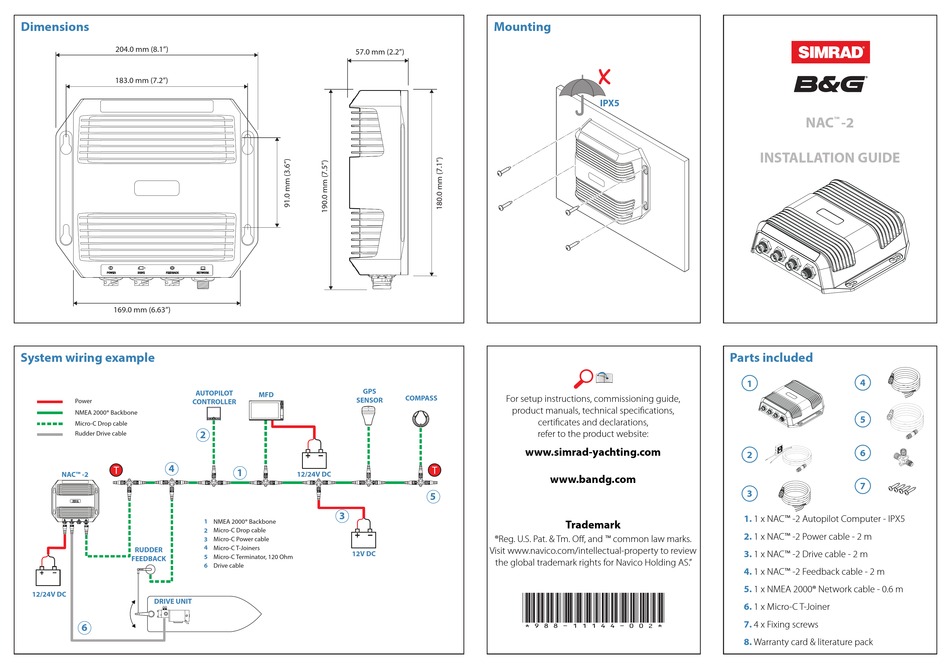

Simrad B&G NAC-2 Installation Manual

Dimensions
204.0 mm (8.1")
183.0 mm (7.2")
169.0 mm (6.63")
System wiring example
AUTOPILOT
Power CONTROLLER
NMEA 2000® Backbone
Micro-C Drop cable
Rudder Drive cable
4
T
NAC™ -2
RUDDER
FEEDBACK
12/24V DC
DRIVE UNIT
6
57.0 mm (2.2")
GPS
MFD
SENSOR
2
1
12/24V DC
3
1 NMEA 2000® Backbone
2 Micro-C Drop cable
3 Micro-C Power cable
4
Micro-C T-Joiners
12V DC
5 Micro-C Terminator, 120 Ohm
6
Drive cable
Mounting
COMPASS For setup instructions, commissioning guide,
product manuals, technical specifications,
certificates and declarations,
refer to the product website:
www.simrad-yachting.com
T
www.bandg.com
5
Trademark
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks.
Visit www.navico.com/intellectual-property to review
the global trademark rights for Navico Holding AS. "
*988-11144-002*
IPX5
INSTALLATION GUIDE
Parts included
1
2
3
1.
1 x NAC™ -2 Autopilot Computer - IPX5
2.
1 x NAC™ -2 Power cable - 2 m
3.
1 x NAC™ -2 Drive cable - 2 m
4.
1 x NAC™ -2 Feedback cable - 2 m
5.
1 x NMEA 2000® Network cable - 0.6 m
6.
1 x Micro-C T-Joiner
7.
4 x Fixing screws
8.
Warranty card & literature pack
NAC -2
™
4
5
6
7
