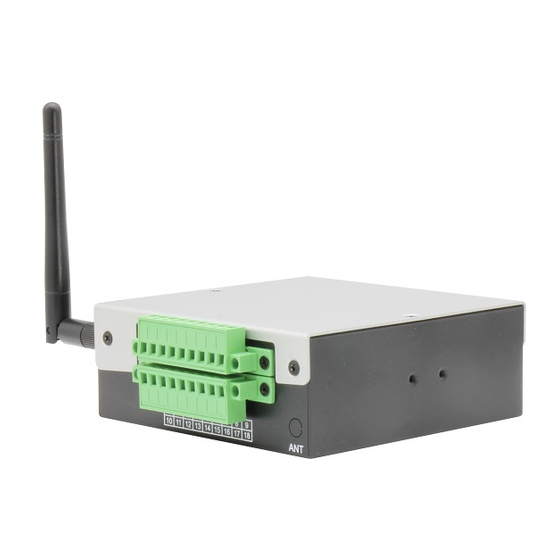

SRG-ADIO
IoT Gateway System
User's Manual 1
Ed
st
Last Updated: September 22, 2021

Advertisement

Table of Contents
loading

Summary of Contents for Asus AAEON SRG-ADIO

  • Page 1 SRG-ADIO IoT Gateway System User’s Manual 1 Last Updated: September 22, 2021...
  • Page 2 Copyright Notice This document is copyrighted, 2021. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.
  • Page 3 Acknowledgements All other products’ name or trademarks are properties of their respective owners. Microsoft Windows is a registered trademark of Microsoft Corp. ⚫ Intel® is a registered trademark of Intel Corporation ⚫ ARM, Cortex, and Cortex-A8 are registered trademarks of Arm Limited (or its ⚫...
  • Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity SRG-ADIO ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately. Preface...
  • Page 5 About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document.
  • Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. All cables and adapters supplied by AAEON are certified and in accordance with the material safety laws and regulations of the country of sale.
  • Page 7 As most electronic components are sensitive to static electrical charge, be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and contain all electronic components in any static-shielded containers. If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii.
  • Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
  • Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯 (Pb) (Hg) (Cd) 醚(PBDE) (Cr(VI)) (PBB) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 外壳 ○...
  • Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control Module Battery This form is prepared in compliance with the provisions of SJ/T 11364.
  • Page 11: Table Of Contents

    Table of Contents Chapter 1 - Product Specifications..................1 Specifications ......................2 Chapter 2 – Hardware Information ..................5 Dimensions ....................... 6 I/O Location ......................7 Wireless Hardware Setup ..................10 2.3.1 Mini Card Installation ................10 2.3.2 SIM Card Installation ................12 Chapter 3 –...
  • Page 12 3.5.8 Check Pared Bluetooth Devices ............26 System Management .................... 27 3.6.1 Check OS Version .................. 27 3.6.2 Check Storage Status ................28 3.6.3 Shut Down the System ................. 28 3.6.4 Set Date and Time ................29 I/O Management ....................30 3.7.1 Control GPIO (LEDs) ................
  • Page 13: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications...
  • Page 14: Specifications

    Specifications General ARM Cortex-A8 800 MHz RISC Processor Memory DDR3L 1GB Storage eMMC 8GB OS Support Debian 10 (Buster) RTC Supported Security TPM 2.0 Interface Ethernet Ports 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) USB Ports 2 x USB2.0 (Type A Connector) Serial Ports 2 x RS485 Terminal Block (optional) Expansion Ports...
  • Page 15 Interface Function Port (Continued) Isolated Digital Output: Channel: 4 Load Voltage: DC 24V Max Load Current: 100 mA per channel Isolation Voltage: 2500 Vrms Radio Frequency Interface Wi-Fi IEEE Std 802.11b/g/n Bluetooth Bluetooth 4.2 and Bluetooth low energy Physical Characteristics Dimensions 4.3”...
  • Page 16 Certification IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 0.15 to 80MHz; 3 Vrms IEC 61000-4-8 PFMF: 50Hz/60Hz, 1 A/m CE Red EMC: EN301489-1/-17...
  • Page 17: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information...
  • Page 18: Dimensions

    Dimensions Chapter 2 – Hardware Information...
  • Page 19: I/O Location

    I/O Location Position Function Antenna Connector Supports 2.4G or LTE antennas Reset Button Reboots the system Debug Port User can login into gateway’s Linux OS via SSH by debug port (Micro-USB port) RS-485 Terminal Resistor Used when there are long distances between the gateway and RS-485 device.
  • Page 20 Gigabit LAN Port Standard RJ-45 LAN jack to connect with Local Area Network (LAN). Function Status Yellow Active Status ON: LAN link is established. OFF: LAN link is not established. Blinking: Data received and transmitted. Orange Link Speed Green: 10/100Mbps. /Green Status Orange: 1000Mbps.
  • Page 21 Mini Card Slot The Mini PCIe slot can support LTE modules (USB signal). Chapter 2 – Hardware Information...
  • Page 22: Wireless Hardware Setup

    Wireless Hardware Setup The SRG-ADIO features both a SIM Card and Mini Card slot for connecting to wireless networks such as 4G. This section details how to install a SIM Card and 4G/LTE module on the mini card slot. 2.3.1 Mini Card Installation Step 1.
  • Page 23 Step 4. Remove the bottom cover and install the 4G/LTE module in the Mini Card slot, and connect the coaxial cable to the 4G/LTE module. Step 5. Place the bottom cover and secure with screws. Step 6. Place the top cover and secure with screws. Chapter 2 –...
  • Page 24: Sim Card Installation

    2.3.2 SIM Card Installation To install a SIM Card (Micro SIM) simply insert the SIM Card into the slot on the side of the system as shown. Take care to make sure the card is oriented correctly. Chapter 2 – Hardware Information...
  • Page 25: Chapter 3 - Gateway Setup And Configuration

    Chapter 3 Chapter 3 – Gateway Setup and Configuration...
  • Page 26: Connecting To System

    Connecting to System When connecting a PC or laptop to the SRG-ADIO system, it is recommended to use PuTTY with Windows 10. Users can download the software from the PuTTY website. https://www.putty.org/ For Windows 7 or older, users must first set up their PC to recognize the system. The following instructions detail how to set up your PC to connect to the SRG-ADIO system by installing the CDC Serial Driver.
  • Page 27 Step 4: Open PuTTY and use the following settings to connect to the system. Serial Port Settings Baud Rate 115200 bps Parity None Data bits Stop bits Flow Control None Click “Open” to connect with the gateway system. Chapter 3 – Gateway Setup and Configuration...
  • Page 28 Step 5: You will see the login prompt once the host PC successfully connects to the gateway. Default login information is: Username: aaeon Password: aaeon Chapter 3 – Gateway Setup and Configuration...
  • Page 29: User Account Management

    User Account Management This section details how to manage user accounts on the system. Add User Account Command Line: ✓ $ sudo useradd -m -G sudo -s /bin/bash USERACCOUNT USERACCOUNT -> Account name you want to add Return (test3 is the account name in this example): ✓...
  • Page 30: Network Settings

    Network Settings This section details how to check and setup the network settings. 3.3.1 Check IP Settings: Check the IP setting by entering the following command into Terminal/Command Line: $ nmcli con show NETWORKPROFILE NETWORKPROFILE refers to one of the system’s network connections as follows: NETWORKPROFILE Port/Hardware Ethernet0...
  • Page 31: Set Static Ip

    3.3.2 Set Static IP Step 1: Enter edit mode with the following command: $ nmcli con edit NETWORKPROFILE See table in 3.3.1 for NETWORKPROFILE values Command should return the following (Ethernet0 used in this example): Step 2: Edit the IP Address with the following commands: $ nmcli>...
  • Page 32: Set Dynamic Ip

    3.3.3 Set Dynamic IP Step 1: Enter edit mode with the following command: $ nmcli con edit NETWORKPROFILE See table in 3.3.1 for NETWORKPROFILE values Command should return the following (Ethernet0 used in this example): Step 2: Edit the IP address with the following commands: $ nmcli>...
  • Page 33: Cellular Network Settings

    Cellular Network Settings This section details how to check and manage the cellular network settings. 3.4.1 Check Cellular Module Status Step 1: To check the status of the cellular module, enter the following command: $ mmcli -m 0 The system should output the following: Chapter 3 –...
  • Page 34: Dial Up Cellular Module

    3.4.2 Dial Up Cellular Module Step 1: Follow the steps in the previous section to check the cellular module status. The system should return a state of “registered” under Status if the module is ready to use. If there is an issue, the state will show “failed” along with a failed reason such as “sim missing”.
  • Page 35: Wi-Fi And Bluetooth Network Settings

    Wi-Fi and Bluetooth Network Settings This section details how to check and setup Wi-Fi and Bluetooth wireless networks. 3.5.1 Scan for Wi-Fi Access Points To scan for Wi-Fi access points, enter the following command: $ nmcli dev wifi The system will return a list of Wi-Fi networks with their name, signal strength and security type.
  • Page 36: Disconnect From Wi-Fi Access Point

    3.5.3 Disconnect from Wi-Fi Access Point To disconnect from a Wi-Fi network, enter the following command: $ sudo nmcli con down id ‘SSID’ SSID is the name of the network you want to disconnect from The system will return the following if successful: 3.5.4 Check Wi-Fi Connection Status To check the status of a Wi-Fi connection, enter the following command:...
  • Page 37: Enter Bluetooth Control Panel

    3.5.5 Enter Bluetooth Control Panel Before managing Bluetooth settings, you must first enter the Bluetooth Control Panel with the following command: $ sudo bluetoothctl The system will return the following: 3.5.6 Scan for Bluetooth Device To scan for a Bluetooth Device, enter the following commands: $ power on This command turns on the Bluetooth module $ scan on...
  • Page 38: Pair Bluetooth Device

    3.5.7 Pair Bluetooth Device To pair a Bluetooth Device, enter the following command while in the control panel: $ pair MAC_ID MAC_ID is the MAC address of the device you wish to connect to. This example is connecting to device E8:6F:38:83:CF:10 3.5.8 Check Pared Bluetooth Devices To check which Bluetooth devices are paired with the system, use the command:...
  • Page 39: System Management

    System Management This section details how to check the OS version, storage device status, shutdown the system and set the date and time. 3.6.1 Check OS Version To check which OS version the system is running, enter the command: $ cat /etc/os-release The system will return the OS information: Chapter 3 –...
  • Page 40: Check Storage Status

    3.6.2 Check Storage Status To check the status of the system storage, enter the following command: $ df -h The system will return a list of storage devices, capacity and usage 3.6.3 Shut Down the System To force the system to shut down, use following command. Note, you may need to enter the user password.
  • Page 41: Set Date And Time

    3.6.4 Set Date and Time Step 1: Check current date and time by issuing the following command: $ timedatectl The system will return the current system clock settings Step 2: Change the date and time by issuing the following command: $ date MMDDhhmmYYYY Command uses the following formatting: MM –...
  • Page 42: I/O Management

    I/O Management This section details how to operate the programable I/O functions; GPIO and Serial Port connectors. 3.7.1 Control GPIO (LEDs) To control the GPIO manually, issue the following commands, this example uses led1: GPIO On: $ echo 1 > /sys/class/leds/srt3352:led1/brightness GPIO Off: $ echo 0 >...
  • Page 43: Rs-485 2-Wire Pin Definition (Srg-3352C)

    3.7.2 RS-485 2-wire Pin Definition (SRG-3352C) Note: This feature is only on the SRG-3352C. Label System Reference COM1 /dev/ttyS4 COM2 /dev/ttyS5 Signal DATA+ DATA- Chapter 3 – Gateway Setup and Configuration...
  • Page 44: Rs-232/422/485, Can Bus Pin Definitions (Srg-Acan)

    3.7.3 RS-232/422/485, CAN Bus Pin Definitions (SRG-ACAN) Note: This feature is only on the SRG-ACAN. There are two versions of SRG-ACAN, which you can verify by checking which interface ports your system has. SRG-ACAN-A10-0001 has one COM port and one CAN Bus Port. SRG-ACAN-A10-0002 has two COM ports only.
  • Page 45 SRG-ACAN-A10-0002 (2 x COM Ports) Label System Reference COM1 /dev/ttyMU0 COM2 /dev/ttyMU1 COM1 Signal COM2 Signal Chapter 3 – Gateway Setup and Configuration...
  • Page 46: Manage Rs-232/422/485 Mode

    3.7.3.1 Manage RS-232/422/485 Mode Check Current Mode by entering the following command: $ sudo uartmode -p PORTNO PORTNO is the label of each port: PORTNO System Name Port Label /dev/ttyMU0 COM1 /dev/ttyMU1 COM2 Example: will return mode for COM1 $ sudo uartmode -p The command will output a single number.
  • Page 47: Can Bus Read/Write

    3.7.3.2 CAN Bus Read/Write To command the CAN Bus to Read or Write, use the following commands: Initialize CAN Bus: $ sudo srg52-initcan CANNO BAUDRATE CAN Bus Read: $ sudo can_read CANNO CAN Bus Write: $ sudo can_write CANNO CANNO variable is either can0 or can1 CANNO System Name...
  • Page 48: Adc, Digital I/O Pin Definitions (Srg-Adio)

    3.7.4 ADC, Digital I/O Pin Definitions (SRG-ADIO) Note: This feature is only on the SRG-ADIO. Definition Definition Upper Row Lower Row DO_VCC+ AI_GND DO_1 AI_4 DO_VCC- DI_3 AI_3 DO_2 DI_2 AI_2 DO_3- DI_1 DI_4 AI_1 DO_4 DI_Common Chapter 3 – Gateway Setup and Configuration...
  • Page 49: Wiring Diagram

    3.7.4.1 Wiring Diagram Analog Input: Digital Input: Chapter 3 – Gateway Setup and Configuration...
  • Page 50 Digital Output Chapter 3 – Gateway Setup and Configuration...
  • Page 51: Manage Digital I/O

    3.7.4.2 Manage Digital I/O Set Digital Output State Use the following command to set digital output state to ON or OFF $ setdo CHANNEL STATE CHANNEL 0, 1, 2, or 3 STATE set to 1 for ON or 0 for OFF Example: Get Digital Input Status Use the following command to check the status of digital input:...
  • Page 52: Manage Analog Input (4Ch Signal End)

    3.7.4.3 Manage Analog Input (4CH Signal End) Enter the following command to view status for all channels: $ rd_exadc -a Config-CH0 Config-CH1 Config-CH2 Config-CH3 Config-CH# for each channel use the following numerical inputs: Voltage Current Disable (no value will be returned) For example: The following command will return voltage values for all four channels: $ rd_exadc -a...
  • Page 53: Manage Analog Input (2Ch Differential)

    3.7.4.4 Manage Analog Input (2CH Differential) To check Group status, use the following command: $ rd_exadc -g GROUP -m 0 GROUP enter 0 for group 0 (ch0 and ch1); enter 1 for group 1 (ch2 and ch3) The system will return the following: Chapter 3 –...
