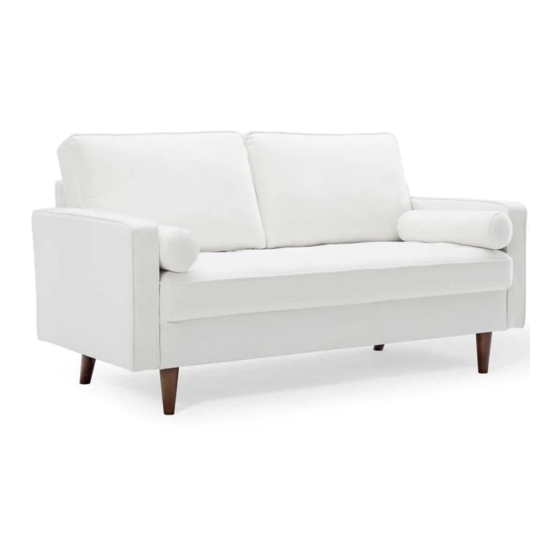

EEI-4004 SOFA
Thank you for purchasing the MODWAY SOFA
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Sofa Seat
x1
5. Back Leg
x2
Customer Service 609-256-9000︱www.modway.com
2. Left Arm
x1
6. Sofa Back
x1
Hardware:
A.
B.
C.
3. Right Arm
x1
7. Back Cushion
Bolt M8x60mm
Flat Washer M8
Allen Wrench M5
x1
4. Front Leg
x2
8. Pillow
Page 1 of 4
x2
x2
x1
x2
x2
Advertisement
Table of Contents
Related Manuals for modway Valour EEI-4004
Summary of Contents for modway Valour EEI-4004
- Page 1 EEI-4004 SOFA Thank you for purchasing the MODWAY SOFA Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 2. Attach 2 pieces of Back Legs (5) to the Sofa Seat (1) by using 2 pieces of Bolts (A) and 2 pieces of Flat Washers (B) as shown with Figure. Use Allen Wrench (C) to tighten all Bolts (A) clockwise until secure. Customer Service 609-256-9000︱www.modway.com Page 2 of 4...
- Page 3 Insert Sofa Back (6) to Left Arm (2) and Right Arm (3) by using the pre-installed Clips on Left Arm (2), Right Arm (3) and Sofa Back (6) to lock each other as shown. Customer Service 609-256-9000︱www.modway.com Page 3 of 4...
- Page 4 Carefully put 2 pieces of Back Cushion (7) and 2 pieces of Pillows (8) to the assembled Sofa Seat (1), Left Arm (2), Right Arm (3) and Sofa Back (6) as shown. Assembly is complete. Your sofa is ready to enjoy now Customer Service 609-256-9000︱www.modway.com Page 4 of 4...
