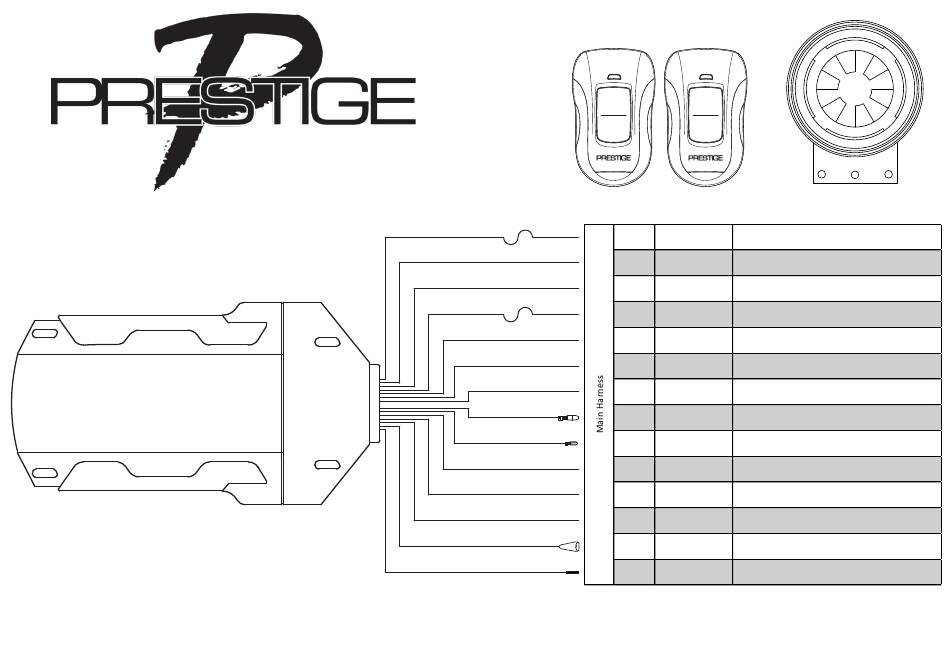

APSPS1 System Layout

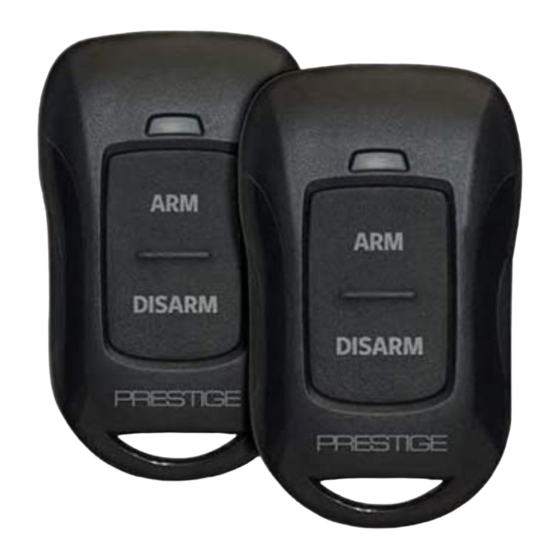

Replacement Part # 4360924
ARM
DISARM
Replacement Part # PEPS2
5A
1
Red
2
Yellow
3
Black
15A
4
White/Red
5
White
6
Black/Yellow
7
Black/Yellow
8
Purple/White
9
Purple/White
10
Lt. Green
11
Dk. Blue
12
White/Black
13
Red/Blue
14
Black/White
ARM
DISARM
Replacement Part # 4360926
Ba�ery 12V Input (+)
Igni�on Input (+)
Ground Input (-)
Parking Light (87) Input
Parking Light (30) Output
Starter Kill (87A) Input
Starter Kill (30) Output
Closed Loop Trigger
Closed Loop Trigger
Addi�onal Sensor Input (-)
Aux Ch.3 Output
Siren / Horn Output (+)
LED Output
Antenna
