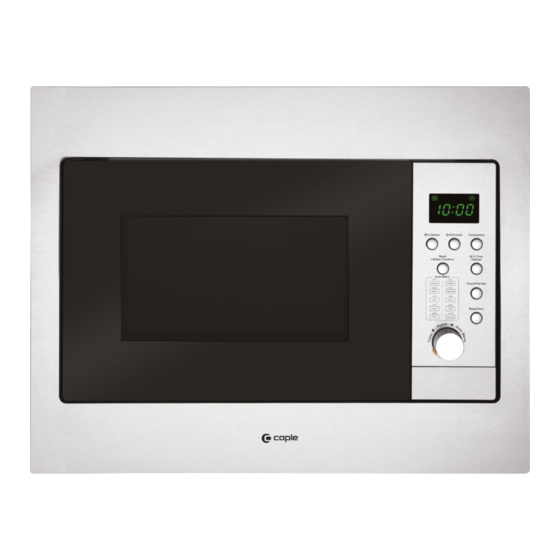

Instruction manual for combi microwave
Model code: CM126
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM126 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple CM126

Summary of Contents for Caple CM126

  • Page 1 Instruction manual for combi microwave Model code: CM126 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...

  • Page 2: Your Microwave

    Read this instruction manual carefully before using your microwave. If you follow the instructions, your appliance will provide you with many years of good service. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE www.caple.co.uk...

  • Page 3: Specifications

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: CM126 Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1450W...

  • Page 4: Important Safety Instructions Warning

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  • Page 5 9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10. Do not overcook food. 11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
  • Page 6 20. Do not let cord hang over edge of table or counter. 21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

  • Page 7: Read Carefully And Keep For Future Reference

    31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.Surface of a storage cabinet can get hot.
  • Page 8 To reduce the risk of injury Gounding Installation DANGER 2)The extension cord must be a grounding- type 3-wire cord. Electric shock hazard 3)The long cord should be arranged so that Touching some of the internal components it will not drape over the counter top or can cause serious personal injury or death.

  • Page 9: Materials You Can Use In A Microwave Oven

    UTENSILS See the instructions on "Materials you can use in a microwave oven or to be avoided in a microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below.

  • Page 10: Setting Up Your Microwave

    Materials to be avoided in a microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food cartons with May cause arcing. Transfer food into microwave-safe dish. metal handles Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing.

  • Page 11: Turntable Installation

    All food and containers of food are always to be placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or Turntable shaft breaks, contact your nearest authorized Caple service center. Turntable ring assembly Installation and connection 1.This appliance is only intended for domestic use.
  • Page 12 Installation Instructions Please Read the Manual Carefully Before Installation Please note Electrical connection The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations.
  • Page 13 B.Prep are the cab i inet 1. Read the instruction on the BOTTOM CANINET TEMPLATE , put the template on the bottom plane of cabinet. CENTER LINE FRONT EDGE 2. Make the marks on the bottom plane of cabinet according to marks"a" of of the template Screw A Bracket...
  • Page 14 C .Install the oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. Screw A 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

  • Page 15: Microwave Cooking

    OPERATION INSTRUCTIONS This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1. Setting the clock When the microwave oven is switched on, the oven will display "0:00", a buzzer will ring once. 1) Press "...

  • Page 16: Grill Cooking

    3. Grill Cooking 1) Press the "GRILL/COMBI. " key once, and "G-1" display. 2) Press " GRILL/COMBI." for times or turn " " to select the grill power. Stop turning when "G-1" displays. 3) Press "START/+30SEC./CONFIRM " to confirm. 4)Turn " "...

  • Page 17: Convection Cooking (Without Pre-Heating Function)

    Press the "CONVECTION " key once, "130" flash. Keep pressing "CONVECTION" or turn " " to select the convection function. Note:the temperature can be selected from 130 degrees to 220 degrees. 3) Press the " START/+30SEC./CONFIRM " to confirm the temperature. 4) Press the "...

  • Page 18: Pre-Set Function

    5) Press "START/+30SEC./CONFIRM" to confirm; 6) Turn " " to adjust the cooking time of 7 minutes; 7) Press "START/+30SEC./CONFIRM" to start cooking. 8. Pre-set Function 1) Set the clock first. (Consult the instructions for setting the clock) 2) Input the cooking program. T wo stage s can be set at most.
  • Page 19 Auto menu Chart Display Menu Power Weight(g) 100% Reheat 1 (about 230g) 2 (about 460g) 100% Potato 3 (about 690g) 100% Meat 100% Vegetable Fish 50(with water 450g) 100(with water 800g) Pasta 150(with water 1200g) 100% Soup A8 Cake Preheat at 180 degrees Pizza Chicken 1000...

  • Page 20: Defrost By Time

    10. Defrost by oeight (W.T) 1) Press "W.T./TIME DEFROST" pad once,the oven will display "dEF1",. " to select the weight of food. At the same time, "g" will illuminate. 2) Turn " The weight should be 100-2000g. 3) Press "START/+30SEC./CONFIRM" key to start defrosting "...
  • Page 21 15. Lock function Lock: In standby mode, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the lock state and " " indicator will illuminate. The LED will display the current time or 0:00. Quitting Lock: In the locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"...

  • Page 22: Troubleshooting

    Trouble shooting You must not run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
  • Page 24 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk PN:261800320131...

  • Page 25: Installation Instructions

    Installation Instructions Please read the manual carefully before installation...
  • Page 26 A. Built-in furniture (45) (45)
  • Page 27 B.Prep are the cab i inet 1. Read the instruction on the BOTTOM CANINET TEMPLATE , put the template on the bottom plane of cabinet. CENTER LINE FRONT EDGE 2. Make the marks on the bottom plane of cabinet according to marks"a" of of the template Screw A Bracket...
  • Page 28 C .Installing the oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. Screw A 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.
