Summary of Contents for Caple CM130

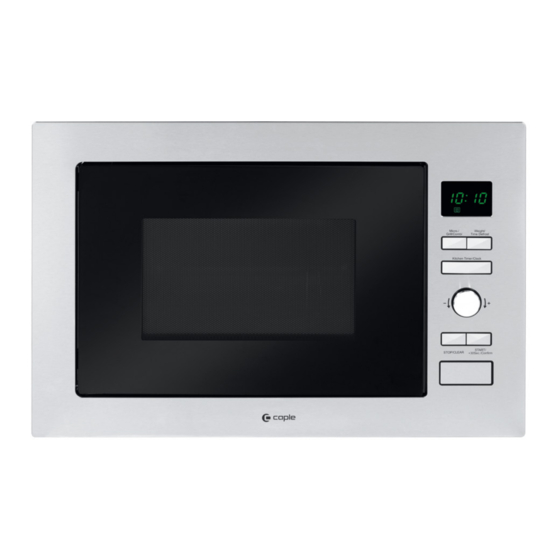

- Page 1 M i c r o w a v e & G r i l l I n s t r u c t i o n M a n u a l CM 1 3 0 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Warnings Environmental Protection Warranty Cleaning Utensils Setting up your Microwave Installation Operation Instructions Troubleshooting Technical Data Caple Contact Details Instruction manual CM130 Please keep this instruction manual for future reference... - Page 3 8 years. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 4: Warnings
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. - The oven should be cleaned regularly and any food deposits removed. Instruction manual CM130 Please keep this instruction manual for future reference... - Page 5 But this is not applicable for appliances with a horizontal bottom hinged door.) - The microwave oven is intended to be used built-in. - Steam cleaner is not to be used. Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 6 Do not disassemble this appliance. Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 7 The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. - Page 9 › Do not use the appliance to heat a room. › When the appliance is not in use, we recommend you turn it off, isolate it from the electrical supply. Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 10: Cleaning
› Cook on maximum power for 1 minute. › Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. › Do not exceed 1 minute cooking time. Instruction manual CM130 Please keep this instruction manual for future reference... -
Page 11: Utensils
T H E R M O M E T E R S Microwave-safe only (meat and candy thermometers). W A X PA P E R Use as a cover to prevent splattering and retain moisture. Instruction manual CM130 Please keep this instruction manual for future reference... - Page 12 P L A S T I C F O A M high temperature.. W O O D Wood will dry out when used in the microwave oven and may split or crack. Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 13: Setting Up Your Microwave
E) Observation window F) Door assembly Grill Rack ( Only to be used in the grill function G) Safety interlock system Instruction manual CM130 and to be placed on the glass tray ) Please keep this instruction manual for future reference... -
Page 14: Installation
› If glass tray or turntable ring assembly cracks or cooking. d. If breaks, contact your nearest authorised Caple c. All food and containers of food must Service centre. Turntable ring assembly urntable shaft always be placed on the glass tray for cooking. - Page 15 WA R N I N G : �� ��� ���� �� ���� ��� ����� ������ Do not trap or bend power cable. Screw A Screw B Bracket Trim-kit plastic cover Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 16 Do not cover ventilation slot or air intake points. » A. Built-in furniture 600mm 560mm 45mm 500mm (min) 380mm 45mm 850mm Instruction manual CM126 Please keep this instruction manual for future reference Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 17 3. Remove the bottom cabinet template and fix the bracket with screw A. Remove the bottom cabinet template and fix the bracket with screw A. Screw A Screw A Screw A Bracket Bracket Bracket Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 18 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole. Then fix the Trim-kit plastic cover to the installation hole. Screw B Installation Hole Screw B Installation Hole Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 19: Operation Instructions
" once, the screen display "P100". Micro./Grill/Combi. 0---1 : 5 seconds Note: the step quantities for the adjustm ple: If you want to use 80% microwave power to cook for 20 minutes, you can Instruction manual CM130 Please keep this instruction manual for future reference... - Page 20 D I S P L AY P O W E R P O W E R O R D E R P100 100% 100% C - 1 C - 2 Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 21 " " again to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps. Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 22 0---1 : 5 seconds 1---5 : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 23 : 30 seconds PA S TA 100g (with 800ml cold water) 10---30 min : 1 minute 200g 30---95 min : 5 minutes A - 5 400g P OTATO 600g Instruction manual CM130 Please keep this instruction manual for future reference...
- Page 24 " once, the screen display "P100". Micro./Grill/Combi. ess " " to confirm, and the screen displays "P 80". Start/+30Sec./Confirm Instruction manual CM130 operate the oven as the following steps. Please keep this instruction manual for future reference 2) Press " " once again or turn"...
- Page 25 " for 3 seconds, there will be a long eased. In locked state, press “Stop/Clear” for 3 seconds, there will be a “beep” denoting that the lock the lock is released. is released. Instruction manual CM130 Please keep this instruction manual for future reference...
-
Page 26: Troubleshooting
Door not closed well. Close door well. Glass turntable makes a Refer to “Maintenance of Dirty roller rest noise when microwave Microwave” to clean oven bottom. oven operates. dirty parts. Instruction manual CM130 Please keep this instruction manual for future reference... -
Page 27: Technical Data
E X T E R N A L 595x400x388mm D I M E N S I O N S N E T W E I G H T 18.5Kg Instruction manual CM130 Please keep this instruction manual for future reference... -
Page 28: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
