Sloan G2 OPTIMA Plus Maintenance Manual

M a i n t e n a n c e
FOR USE WITH SLOAN'S G2 OPTIMA Plus
FLUSHOMETER INTRODUCED MAY, 2003
The Sloan Valve Company introduced its OPTIMA Plus Battery Operated
Sensor Flushometer in 1992 revolutionizing the flushing of water closets
and urinals. In both new construction and retrofit applications the use of the
OPTIMA Plus has become the standard method for many facilities to
improve restroom hygiene and ensure handicap accessibility compliance.
In May, 2003 Sloan introduced the G2 OPTIMA Plus
Original
OPTIMA Plus
Flushometer and
Regal Pro ® OPTIMA
Plus
The G2 OPTIMA Plus builds on the success of the original product and
offers many technological advancements to further improve on
performance and reliability expected of sensor operated plumbing. In
addition to a new aesthetic design, the G2 OPTIMA Plus features a new
state-of-the-art electronic and optical package and a unique Solenoid
Operator.
The G2 OPTIMA Plus replaces the original OPTIMA Plus product, which
was phased out of production in mid 2003.
Use this Maintenance & Repair Guide for G2 OPTIMA Plus Valves
only.
For older OPTIMA Plus Valves (produced from 1992 - 2003) and
Regal Pro OPTIMA Plus Valves use Maintenance and Repair Guide
#0816193.
If further assistance is required, please contact the Sloan Valve
Company Installation Engineering Department at:
Phone: 1-888-SLOAN-14 (1-888-756-2614)
Email: productsupport@sloanvalve.com
G u i d e • S E N S O R O P E R AT E D V A L V E S
The Sloan G2 OPTIMA Plus Automatic Battery Powered Flushometer relies
on an Infrared Sensor to detect a user and activate a flushing cycle. No
physical contact with the Flushometer surface is necessary, assuring
sanitary protection. G2 OPTIMA Plus Flushometers are ADA compliant
devices.
® .

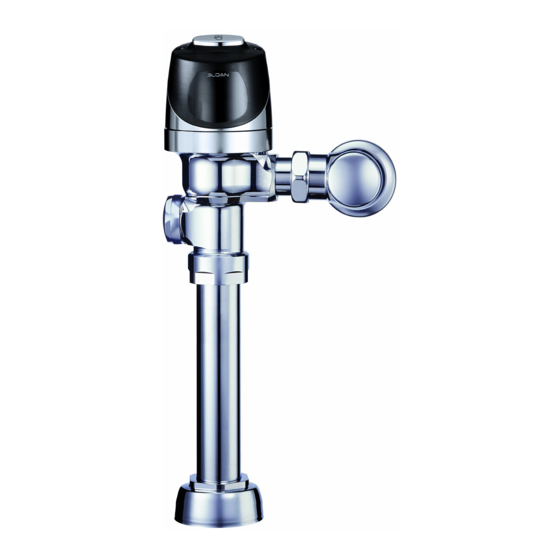

OPTIMA Plus
G2 ®
Flushometer
The Flushometer is triggered by means of an active Infrared Sensor. The
OPTIMA Plus Sensor emits a continuous invisible Light Beam. When a user
enters the Beam's effective range, the Beam is reflected into the OPTIMA
Plus Scanner Window. The user is now detected. After the user moves out
of the effective range of the Sensor, a signal is sent to the Flushometer
Solenoid and, after appropriate arming and/or flush delays, the flush cycle
is initiated.
G2 OPTIMA Plus M.G. – Rev. 1 (09/06)

LIMITED WARRANTY

Sloan Valve Company warrants its Flushometer Products to be made of first
class materials, free from defects of material or workmanship under normal
use and to perform the service for which they are intended in a thoroughly
reliable and efficient manner when properly installed and serviced, for a period
of three years (one year for special finishes) from date of purchase. During
this period, Sloan Valve Company will, at its option, repair or replace any part
or parts which prove to be thus defective if returned to Sloan Valve Company,
at customer's cost, and this shall be the sole remedy available under this
warranty. No claims will be allowed for labor, transportation or other incidental
costs. This warranty extends only to persons or organizations who purchase
Sloan Valve Company's products directly from Sloan Valve Company for
purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE
WHATSOEVER.
®
Code No. 0816456
