INSTALLATION INSTRUCTIONS FOR RETROFIT AND COMPLETE VALVE
INSTALLATION FOR SLOAN SOLIS
AND DUAL FLUSH WATER CLOSETS AND URINALS

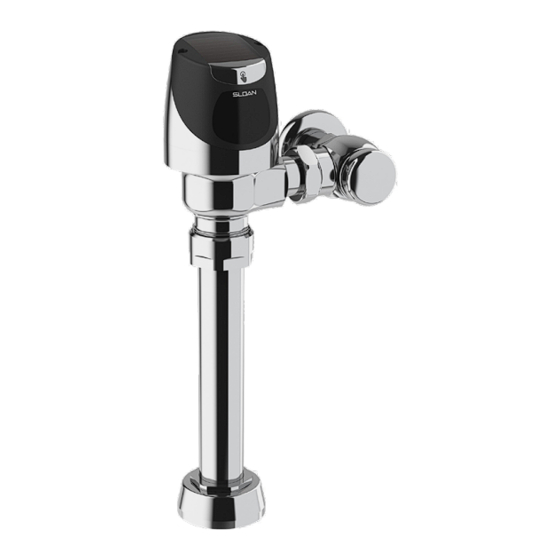

8100 Series Complete Flushometer Models
8100 Series Sloan SOLIS
and ideal for new installations.
Sloan Valve Company ("Sloan"), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan's reasonable control. Instructions
for filing claims can be found in the Limited Warranty which can be obtained at www.sloan.com or by requesting a free copy by telephone at 888.756.2614. Sloan will repair or replace your
defective product, or provide a refund, as your exclusive remedy. This is only a general summary of Sloan's Limited Warranty so it is important to note that the specific terms, conditions,
limitations and exclusions, including the duration of warranty coverage for your particular Sloan product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject
to applicable laws in your country, state, province or other jurisdiction—and disputes arising under the Limited Warranty are to be resolved by binding arbitration unless you provide Sloan
with an opt-out notice no later than 30 days after your purchase date. In case of a conflict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.
PRIOR TO INSTALLING THE SLOAN SOLIS
Please take the time to read this manual to ensure proper product
installation and longevity. Also, please visit our website to
download our most recent documentation for this product.
Prior to installing the Sloan SOLIS
below as illustrated in the rough-in diagram. (New installations only.)
• Closet or Urinal fixture
• Drain line
• Water supply line
IMPORTANT:
• INSTALL ALL PLUMBING IN ACCORDANCE WITH
APPLICABLE CODES AND REGULATIONS.
• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN
ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.
TOOLS REQUIRED FOR INSTALLATION
• Slotted screwdriver to adjust control stop.
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed
spud wrench for couplings.
valves are complete flushometers
®
SLOAN
LIMITED WARRANTY SUMMARY
®
flushometer, install the items listed
®
, SOLAR POWERED, SINGLE FLUSH
®
RESS Series Retrofit Conversion Kit Models
RESS Sloan SOLIS
Flushometers to Solar Powered, Sensor Activated.
Sloan SOLIS
Water Closet Models can be furnished for the following:
®
1.1 gpf / 4.2 Lpf
1.28 gpf/4.8 Lpf
1.6 gpf/6.0 Lpf
1.6 / 1.1 gpf (6.0 / 4.2 Lpf)
Sloan SOLIS
Urinal Models can be furnished for the following:
®
0.125 gpf/0.5 Lpf
0.25 gpf/0.9 Lpf
0.5 gpf/1.9Lpf
1.0 gpf/3.8 Lpf
1.5 gpf/5.7 Lpf
FLUSHOMETER
®
• WHEN INSTALLING A FLUSHOMETER, IT IS
IMPORTANT THAT THE FLUSH MODEL MATCHES THE
REQUIREMENTS OF THE PLUMBING FIXTURE.
• FLUSH ALL WATER LINES PRIOR TO MAKING
CONNECTIONS.
The Sloan SOLIS
is designed to operate with 15 to 80 PSI (104 to 551
®
kPa) of water pressure.
THE MINIMUM PRESSURE REQUIRED
TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE
SELECTED.
Consult fixture manufacturer for pressure requirements.
Most water closets (1.6 gallon/6 liter or lower) require a minimum flowing
pressure of 25 psi (172 kPa); some manufacturers require a higher
minimum flowing pressure.
• Strap wrench (supplied) to install Sloan SOLIS
• 7/64" hex wrench (supplied) to secure Sloan SOLIS
• 5/64" hex wrench to secure water Supply Flange.
Code No. 0816641
Rev. 10 (05/23)
Models are used to convert existing
®
High Efficiency Bowls
High Efficiency Bowls
For Low Consumption Bowls
Dual Flush Models
For High Efficiency Urinals
For High Efficiency Urinals
For High Efficiency Urinals
For Low Consumption Urinals
For Older Siphon Jet Urinals
to valve body.
®
cover to base plate.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLIS 8100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sloan SOLIS 8100 Series

  • Page 1 Sloan Valve Company (“Sloan”), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan’s reasonable control. Instructions for filing claims can be found in the Limited Warranty which can be obtained at www.sloan.com or by requesting a free copy by telephone at 888.756.2614. Sloan will repair or replace your defective product, or provide a refund, as your exclusive remedy.
  • Page 2 TYPICAL URINAL INSTALLATION NOTE Models 8180 & 8186 Maximum adjustment of the Sloan Adjustable Tailpiece is ½” (13 mm) IN or OUT from the Reference for RESS-U Retrofit standard 4¾” (121 mm) ( centerline of Flushometer to centerline of Control Stop ).
  • Page 3 Slide Threaded Adapter fully onto pipe. Sweat solder the Adapter to pipe. NOTE: !!! IMPORTANT !!! SWEAT Use only Sloan SOLDER WITH THE EXCEPTION OF THE CONTROL STOP INLET, sweat adapter fully ADAPTER DO NOT USE PIPE SEALANT OR PLUMBING GREASE ON inserted onto pipe.
  • Page 4 VACUUM BREAKER FLUSH CONNECTION NOTE SUPPLY Maximum adjustment of the Sloan Adjustable Tailpiece is ½” (13 mm) IN or OUT from the standard 4¾” (121 mm) SPUD COUPLING (centerline of Flushometer to centerline of Control Stop). If roughing-in measurement exceeds 5¼” (133 mm), 4-3/4”...
  • Page 5 BLUE light ON pulses for alkaline to complete the routine. Only at this time can the non-permanent objects be present. † The brands and/or products names referenced herein may be subject to trademark rights of their respective owners. Use of the brands and names is for identification purposes only and does not imply affiliation with or endorsement by Sloan.
  • Page 6: Operation

    Install control stop cap onto control stop. For RESS retrofit applications, reuse stop cap from existing valve. In complete valve installations, a new stop cap is provided. Follow the instructions packaged with the free spinning vandal resistant stop cap. OPERATION 1. A continuous, INVISIBLE light beam is emitted from the Sloan SOLIS sensor. CLOSET URINAL ®...
  • Page 7: Care And Cleaning

    TROUBLESHOOTING GUIDE -SMT models require SC Argus Portal equipment and subscription. Please contact your SC Argus Pro Sales Representative or Sloan Technical Support. For Troubleshooting and Replacement of SOLIS -SMT units, please consult the SOLIS Repair Parts & Maintenance Guide.
  • Page 8: Parts List

    Sloan. Parts & Maintenance Guide for replacement part numbers. Manufactured in the U.S.A. by Sloan Valve Company under one or more of the following patents: -BT Sloan Connected Product Models available. U.S. Patents: D598,975; D599,436; 7,124,997. Other Patents Pending. BAK-CHEK ®...
