Sloan 152 Series Installation Instructions Manual

Concealed closet flushometers 1-1/2” rear spud; concealed urinal flushometers 3/4” rear spud
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

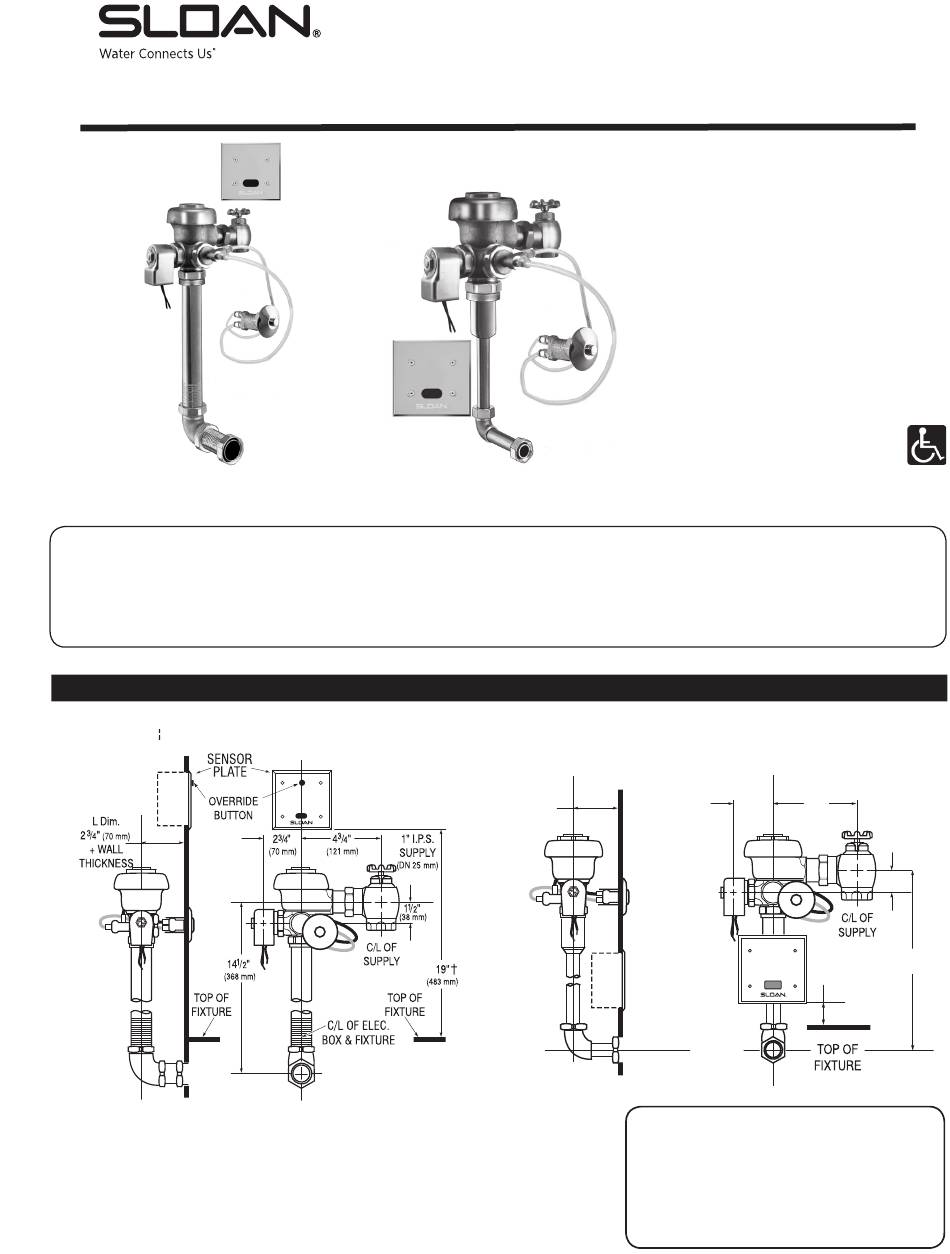

INSTALLATION INSTRUCTIONS FOR OPTIMA
SLOAN
CONCEALED WITH TRUE MECHANICAL OVERRIDE FLUSHOMETERS
®
MODEL 152
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3)
years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or
refund the purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned
to Sloan Valve Company, at customer's cost. No claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's
products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY
CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
ROUGH-IN
MODEL 152
‡ POSITION OF SENSOR BOX CAN BE RAISED OR LOWERED 1" (25 mm) IF IN CONFLICT WITH
HANDICAP GRAB BARS.
SYSTEM SENSOR ACTIVATED
®
MODEL 195
LIMITED WARRANTY
MODEL 195
L DIM. 2¾"
+
(70 mm)
WALL
THICKNESS
Concealed Closet Flushometers
1-1/2" Rear Spud
• Model 152 ES-S TMO
Concealed Urinal Flushometers
3/4" Rear Spud
• Model 195 ES-S TMO
4¾"
2¾"
(121 mm)
(70 mm)
(51 mm)
SENSOR LOCATION & POSITIONING IS
CRITICAL!
Failure to properly position the electrical boxes
to the plumbing rough-in will result in improper
installation and impair product performance.
All tradesmen (plumbers, electricians, tile
setters, etc.) involved with the installation of
this product must coordinate their work to
assure proper product installation.
Code No. 0816674
Rev. 3 (02/17)
¾"
(DN 20 mm)
IPS
SUPPLY
1½"
(38 mm)
13½"
2"
(343 mm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 152 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sloan 152 Series

Summary of Contents for Sloan 152 Series

  • Page 1 Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service.

  • Page 2: Prior To Installation

    CONNECTIONS. actuator • Bore a 2” (51 mm) opening in wall for piping (if required) Sloan flushometers are designed to operate with 15 to 100 psi (104 to • Closet/Urinal fixture 689 kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED •...
  • Page 3 Plastic Tubing !!! IMPORTANT !!! Metal Push MUST USE SLOAN APPROVED TUBING ONLY Button Actuator Assembly † Use spacer sleeve only if wall NOTE thickness is less than 2” (51mm) Wall Observe the “L”...
  • Page 4 NOTE Max. adjustment of Sloan Adjustable Tailpiece is ½” (13 mm) IN or OUT from the standard 4¾” (121 mm) (C L of Valve to C L of Control Stop). If roughing-in measurement exceeds 5¼” (133 mm), consult factory for longer tailpiece.
  • Page 5 7 - ELECTRICAL HOOK-UP Wiring Diagram for One Flush Valve Be certain power is OFF to prevent damage to electrical components. Connect sensor to transformer and solenoid coil EXACTLY as shown. Connect 24 volt source lead to terminal labeled “24 VAC IN” of sensor. SENSOR Connect solenoid lead to terminal labeled “TO VALVE”...

  • Page 6: Operation

    Open control stop COUNTERCLOCKWISE one (1) FULL turn from the closed position. !!! IMPORTANT !!! All Sloan Flushometers are engineered for quiet operation. Excessive water flow creates noise, while too little water flow may not satisfy the needs of the fixture. Proper...

  • Page 7: Troubleshooting Guide

    A. Control stop is not open wide enough. Adjust control stop for desired When further assistance is required, water delivery. please contact Sloan Technical Support at: B. Low consumption unit is installed on water saver or conventional fixture. 1-888-SLOAN-14 (1-888-756-2614) Replace diaphragm component parts of valve with kit that corresponds to appropriate flush volume of fixture.
  • Page 8 The information contained in this document is subject to change without notice. SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131 Phone: +1.800.982.5839 or +1.847.671-4300 • Fax: +1.800-447.8329 or +1.847.671.4380 • www.sloan.com © 2017 SLOAN Code No.0816674 – Rev. 3 (02/17)

This manual is also suitable for:

152 es-s tmo195 series195 es-s tmo
