OWNER'S
MANUAL
MODEL NO.
POL 14560
IMPORTANT
Read and follow all
Safety Precautions and
Instructions before
operating this
equipment.
Rev. 04-296
P.O. BOX 67, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
ONPOL14560
All manuals and user guides at all-guides.com

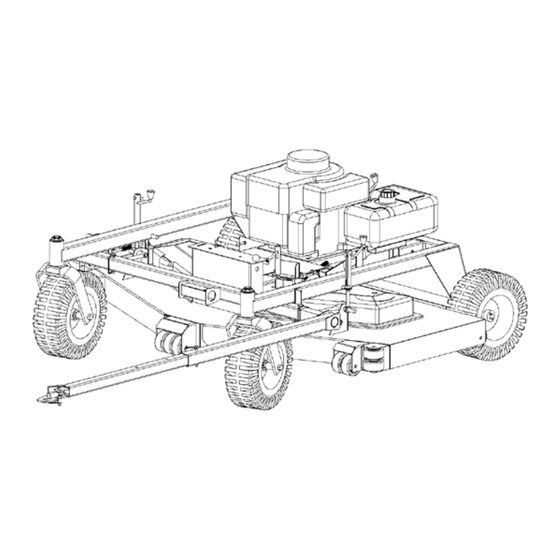

60" UNIVERSAL
Front/Rear Mount
TRAILMOWER
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650
Made In The
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POL 14560 and is the answer not in the manual?

Questions and answers

Related Manuals for Swisher POL 14560

Summary of Contents for Swisher POL 14560

  • Page 1 All manuals and user guides at all-guides.com OWNER’S MANUAL MODEL NO. POL 14560 60” UNIVERSAL Front/Rear Mount TRAILMOWER IMPORTANT Read and follow all Assembly Safety Precautions and Instructions before Operation operating this equipment. Service and Adjustment Rev. 04-296 Repair Parts Made In The P.O.
