INSTALLATION INSTRUCTION
Max VESA:
600X400 mm/24X16"

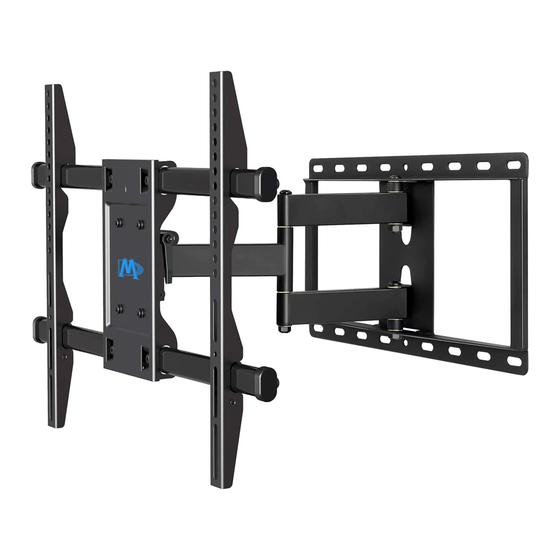

MODEL : MD2295
Please read this instruction carefully before installation .
Fits for most 42-70 inches Plasma, LCD and LED TVs .
Weight capacity: 35.5 kg (78 LBS) .
If you have any questions, please contact us via customerservice@mountingdream.com
or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
For more information,please visit our website:www.mountingdreamonline.com
(B1)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mounting Dream MD2295
Summary of Contents for Mounting Dream MD2295
- Page 1 INSTALLATION INSTRUCTION Max VESA: 600X400 mm/24X16" MODEL : MD2295 Please read this instruction carefully before installation . Fits for most 42-70 inches Plasma, LCD and LED TVs . Weight capacity: 35.5 kg (78 LBS) . If you have any questions, please contact us via customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
- Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD2295, préserver le risque contre vous-même et des tiers et éviter ledommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 200x100mm/8x4in and equal to /less than VESA 600x400mm/24x16"? MAX:600mm/24" Yes --- Perfect! MAX: 400mm/16" No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 78 lbs (35.5kg)? NO --- Perfect!
-
Page 4: Part List
For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arrange d to replace missed or defective parts. Installation tools: 2M 2M Band tape Bubble level Stud finder Pencil Screwdriver Socket wrench 3/8" 7/32"... - Page 5 Wall mounting and TV bracket assembly hardware: --Lag bolt --M8 Washer --4mm Allen key --M6X10 Bolt 4pcs 4pcs 4pcs --M6X15 Bolt 2pcs TV mounting hardware: a--M4X12 bolt b--M6X12 bolt c--M8X25 bolt 4 pcs 4 pcs 4 pcs d--M4X30 bolt e--M6X35 bolt f--M8X45 bolt 4 pcs 4 pcs...
- Page 6 Step 1 Assemble extension arms ( ) as picture shows, align the extension arm holes with the wall plate unit, then fasten it with bolt by using Allen key Step 2 Wall plate installation : Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1.
- Page 7 ③ 16" ④ 7/32" Place Mounting template along the centerlines, Use 7/32" diameter drill bit to drill 4 pilot holes at level it , and use pencil to mark 4 hole locations on marked positions to a depth of 2.5". the wall.
- Page 8 Step 3 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
- Page 9 Step 4 Attach brackets to the back of the TV: ① For the TV with flat back, mount the brackets with bolt/washer/spacer combination. Tips: Make sure the ends of TV brackets with round holes are facing upward. Round hole is for upper VESA hole, and long slot hole for lower VESA hole.
- Page 10 ② For TV with inset mounting holes, mount the brackets with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Tips: Make sure the ends of TV brackets with round holes are facing upward.
- Page 11 Step 5 Hang the pre-assembled TV unit onto the horizontal bars of the wall plate unit. Two people are recommended to hold and position the TV. And cables are recommended to plug in before hanging the TV. Step 6 Fasten the tube clips with brackets by using bolts with a screwdriver.
- Page 12 Step 8 Adjust the tilting angle with spring loaded handle: Hold the TV and adjust it to your desired position, and fasten the handle and the bolt opposite to the handle. Handle Bolt To fasten the handle: Push Pull Step A Step B Step C Step D...
-
Page 13: Product Dimensions
Step 9 Manage TV cables orderly and tie them with velcro cable ties. Product dimensions: 681mm MAX:600mm 430mm +5° MAX: 400mm -15° 376mm 66mm +90°/-90° If you have any questions about the installation,please feel free to contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com .
