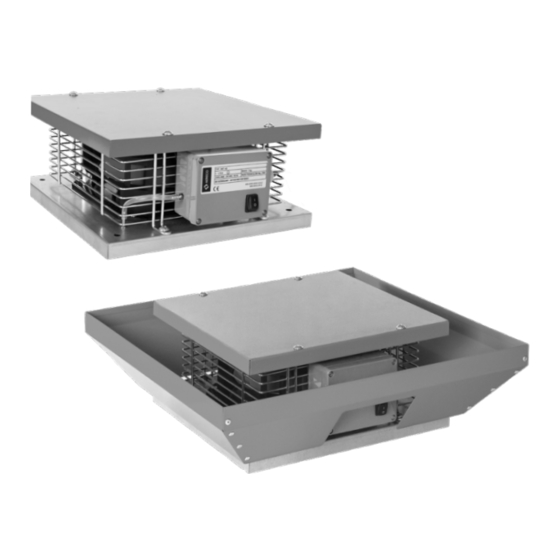

- Page 1 TECHNICAL AND MAINTENANCE DOCUMENTATION HAT FANS FOR MEDIUM-PRESSURE AERECO VENTILATION SYSTEMS HAT-HD...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. General information 2. Fan installation 3. Fan models 4. Electrical specifications and connections 5. Start-up 6. Use 7. Transport and storage... -
Page 4: General Information
Integrated into the HAT fan, the HIGROdynamic automated system adapts the fan speed in tall and short buildings. to the opening degree of the HIGRO AERECO diffusers and grilles. This means that the ® electronic system lowers the fan speed at low flow volumes, adapting to the lower airflow resistance in the ducts, and increases the fan speed at higher airflow volumes caused by the open dampers of the hygroregulated grilles. -
Page 5: Fan Installation
TECHNICAL AND MAINTENANCE DOCUMENTATION HAT 2. FAN INSTALLATION ATTENTION!!! The fans are suitable for outdoor use. • All fans must be placed on AERECO vibration isolators and connected to the system Disconnect the fan from with SAS-1200 silencer. the mains supply before •... -
Page 6: Electrical Specifications And Connections
The power supply for the fan with a HD automated system should be connected as shown in the drawing. ATTENTION!!! Each fan shall have individual overcurrent protection. Power cable Each fan and overcurrent protection shall be identically labelled. Switch brown wire L blue wire N green-yellow wire PE www.aereco.com... - Page 7 The base pressure is preset at the factory. Do not change the default force. connections 4. The automated system is equipped with a switch 5. The switch button is located on the lid of the casing. www.aereco.com...
-
Page 8: Start-Up
· Incorrect start-up can lead to damage of the fan. · The start-up can be carried out by the AERECO service with prior agreement. Start-up must be documented by an entry in the warranty Before applying voltage you have to check that: card. -
Page 9: Use
During transport, the fans should not be thrown, knocked over or additionally weighted. Prior to mounting, the fans should be stored in dry and well-ventilated spaces. AERECO S.A. RESERVES THE RIGHT TO MAKE CHANGES TO THIS TECHNICAL MANUAL WITHOUT NOTICE. - Page 10 NOTES...
- Page 11 Declaration of conformity no 20200401/HAT-HD/ErP Selling company: Aereco S.A. 62 rue de Lamirault – Collégien 77615 – Marne-la-Vallée Cedex 3 France Product name: Fans HAT-HD: - 100-1B; 125-1B; 160-1B; 160-1C; 200-1C; 250-1C; 250-1D - 100-3B; 125-3B; 160-3B; 160-3C; 200-3C; 250-3C; 250-3D...
