Tru-Jump STR-14FT Assembly, Installation, Care, Maintenance And User Instructions page 31

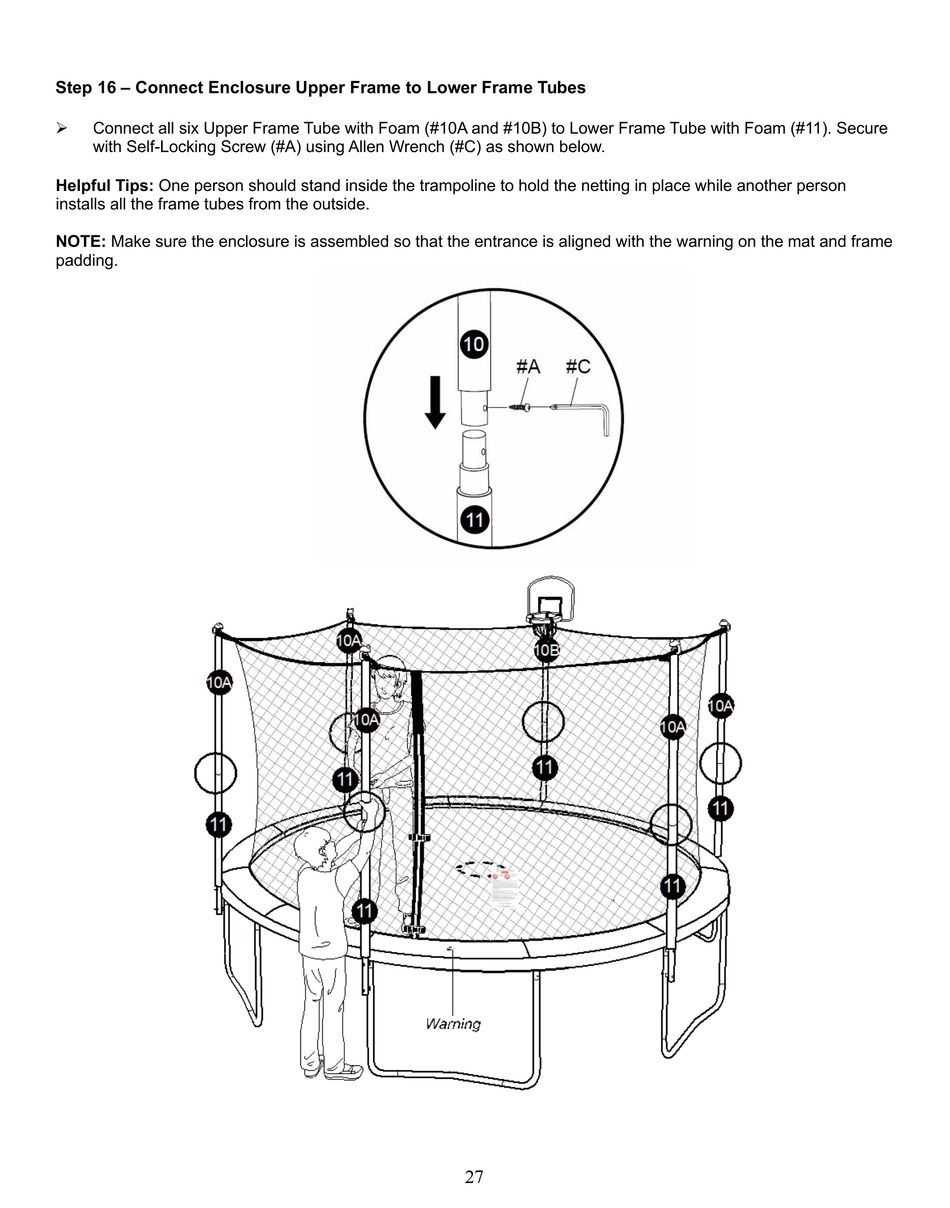

Step 16 – Connect Enclosure Upper Frame to Lower Frame Tubes
Ø Connect all six Upper Frame Tube with Foam (#10A and #10B) to Lower Frame Tube with Foam (#11). Secure
with Self-Locking Screw (#A) using Allen Wrench (#C) as shown below.
Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person
installs all the frame tubes from the outside.
NOTE: Make sure the enclosure is assembled so that the entrance is aligned with the warning on the mat and frame
padding.
27
