Step 6 – Spring Assembly
Ø

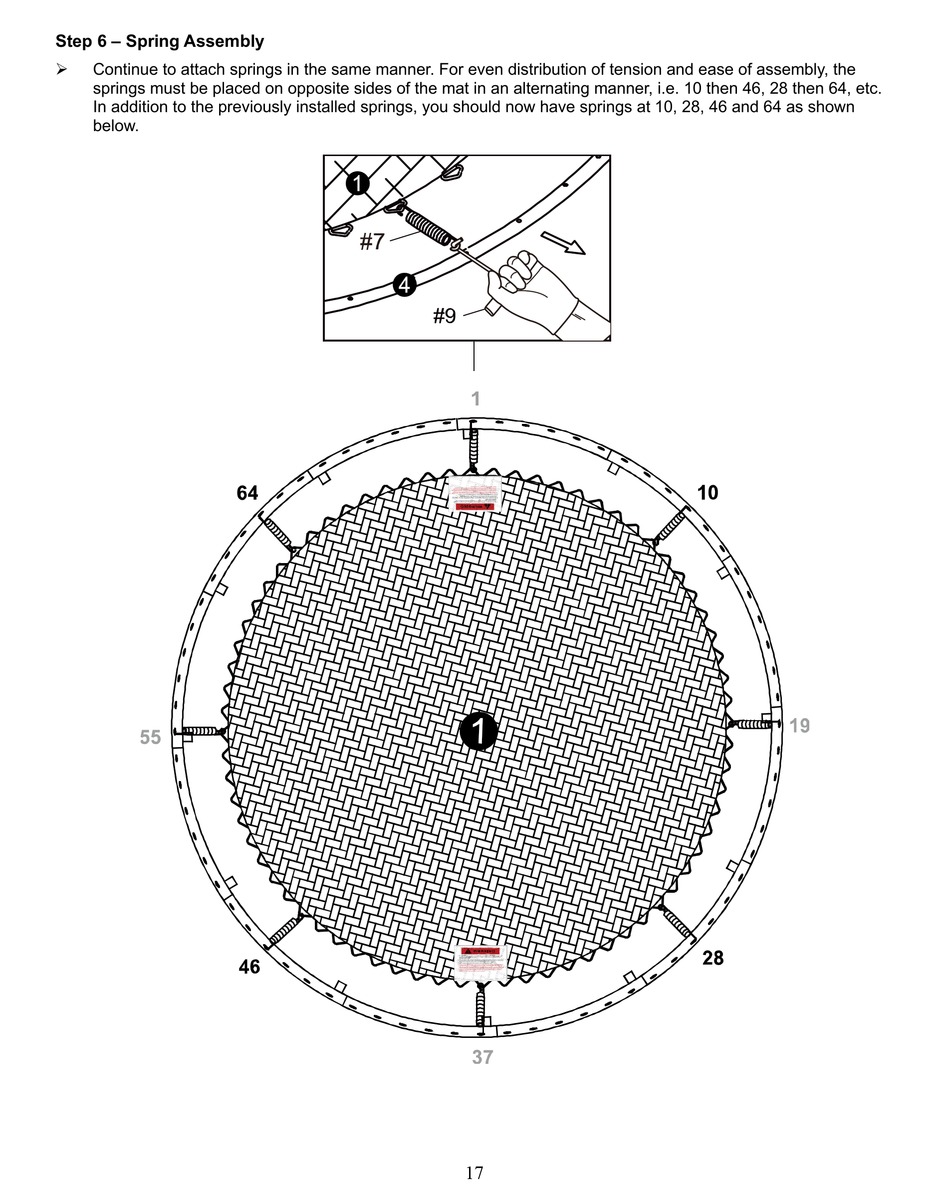

Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the
springs must be placed on opposite sides of the mat in an alternating manner, i.e. 10 then 46, 28 then 64, etc.
In addition to the previously installed springs, you should now have springs at 10, 28, 46 and 64 as shown
below.
17
