Tru-Jump STR-14FT Assembly, Installation, Care, Maintenance And User Instructions page 17

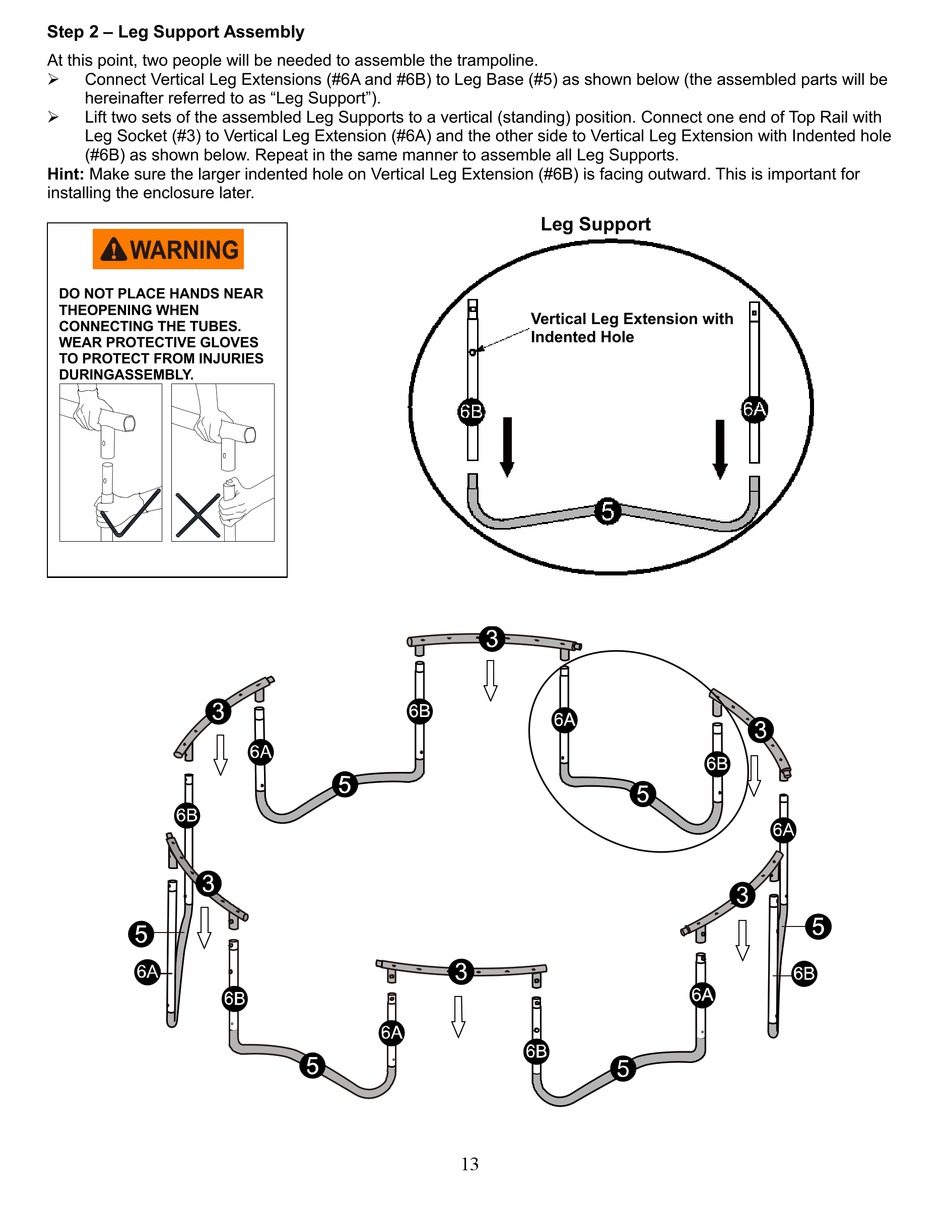

Step 2 – Leg Support Assembly
At this point, two people will be needed to assemble the trampoline.
Ø Connect Vertical Leg Extensions (#6A and #6B) to Leg Base (#5) as shown below (the assembled parts will be
hereinafter referred to as "Leg Support").
Lift two sets of the assembled Leg Supports to a vertical (standing) position. Connect one end of Top Rail with
Ø
Leg Socket (#3) to Vertical Leg Extension (#6A) and the other side to Vertical Leg Extension with Indented hole
(#6B) as shown below. Repeat in the same manner to assemble all Leg Supports.
Hint: Make sure the larger indented hole on Vertical Leg Extension (#6B) is facing outward. This is important for
installing the enclosure later.
DO NOT PLACE HANDS NEAR
THEOPENING WHEN
CONNECTING THE TUBES.
WEAR PROTECTIVE GLOVES
TO PROTECT FROM INJURIES
DURINGASSEMBLY.
Leg Support
Vertical Leg Extension with
Indented Hole
13
