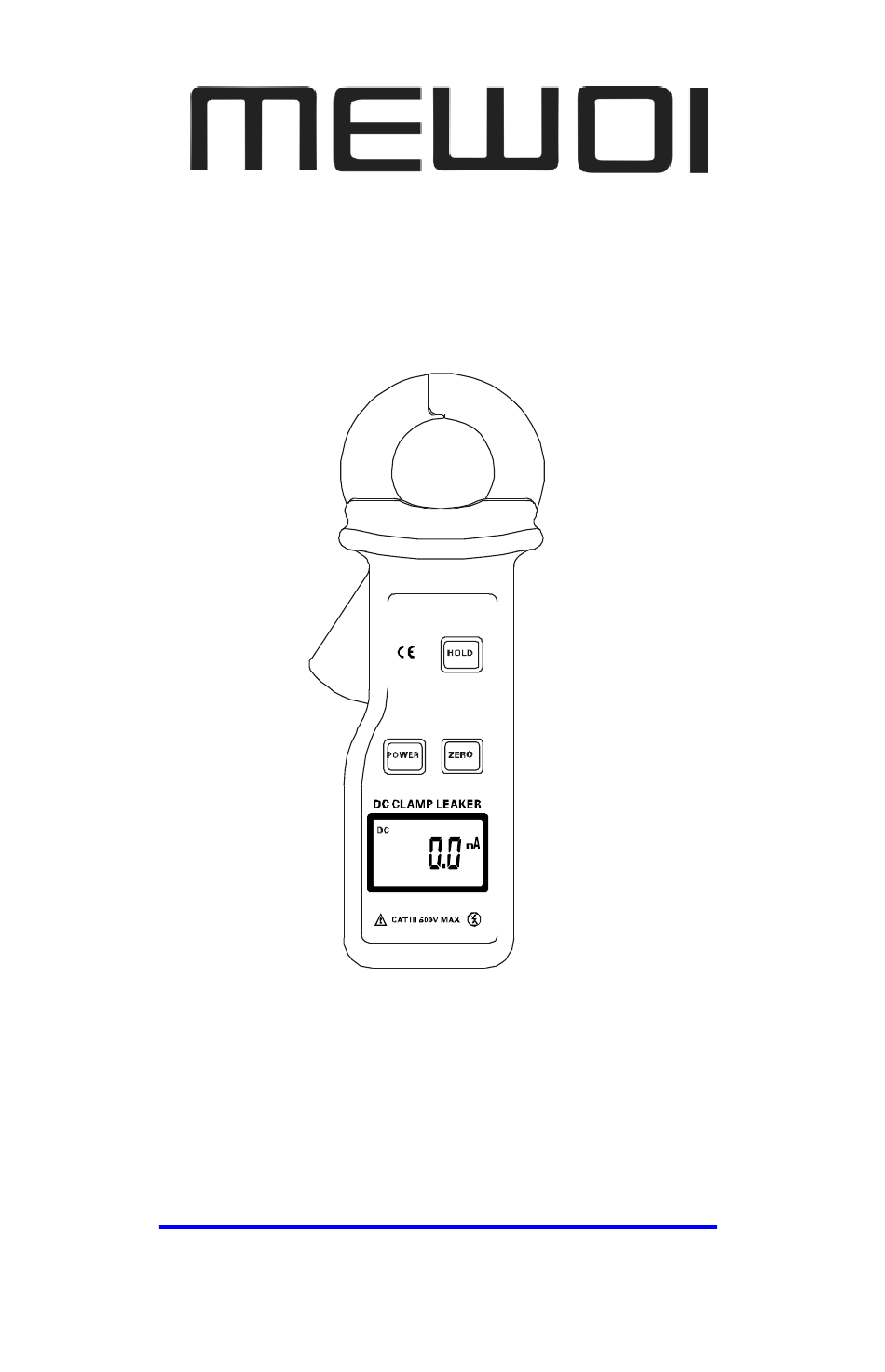

- Page 1 MEWOI7300E DC Clamp Leaker M EWOI 73 00 E www.mewoi.com...
-
Page 3: Table Of Contents
CONTENT Warning ....................... 1 I. Introduction ..................... 2 II. Range and Accuracy ................2 III. Electrical Signs ..................2 IV. Technical Specifications ..............3 V. Structure of the Leaker ................ 4 VI. LCD Display ..................4 VII. Operating Method ................4 1. -
Page 4: Warning
Warning Thank you for purchasing our company's MEWOI7300E DC Clamp Leaker, for better use of this product, please: ——Read carefully the user's manual. ——Follow strictly safety rules and notes listed in this manual. Under any circumstances, please pay special attention to your safety in the course of using this leaker. -
Page 5: Introduction
I. Introduction MEWOI7300E DC Clamp Leaker is specially designed for measurement of DC leakage current，DC low current; which resolution can reach 0.1mA, by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. -
Page 6: Technical Specifications
Warning！Operators shall strictly keep to safety rules; otherwise personal injuries or equipment damages might be caused. Double insulation IV. Technical Specifications Measurement of DC leakage current, DC current, Function car leakage Zn-Mn dry battery,6F22,9V DC，continuous use for Power 60 hours Test Mode Clip-on CT，Magnetic modulation Clamp Size... -
Page 7: Structure Of The Leaker
7.2V.Then the battery have to be changed Weight 120g（including the battery） Working Current 20mA Limit Temperature -10℃～0℃及 40℃～50℃，within 2%rdg Error Working: -10℃～50℃,below 80%rh Temperature and Humidity Storage: -10℃～60℃,below80%rh Insulating AC3700V/rms(between the alloy of the clamp and Strength the housing) IEC1010-1、IEC1010-2-032、Pollution degree 2、 Applicable Safety Rules CAT Ⅲ(600V) -
Page 8: Leaker Measurement
2. Leaker Measurement High voltage, extremely dangerous! Operators shall strictly observe safety rules; otherwise there would be risk of electric shock to cause personal injuries or casualties. Dangerous！Please don’t use it to measure current higher than 300A; otherwise there would be risk of electric shock to cause personal injuries or equipment damages. -
Page 9: Peak Holding
first, and then do the test. Do not test DC current exceed 7A，When the input current is more than 7A, the meter reading may become small, and does display the overrange OL symbol. 3. Peak Holding Pressing key continually in the course of measurement (More than 3 HOLD seconds), the leaker will capture current peak values of lines in this period of time;... -
Page 10: Accessories
IX. Accessories Clamp tester 1 pc USB Com cable 1 pc Software 1 disk User Manual 1 copy Warranty card / Certification 1 copy... - Page 12 esting pecialist...
