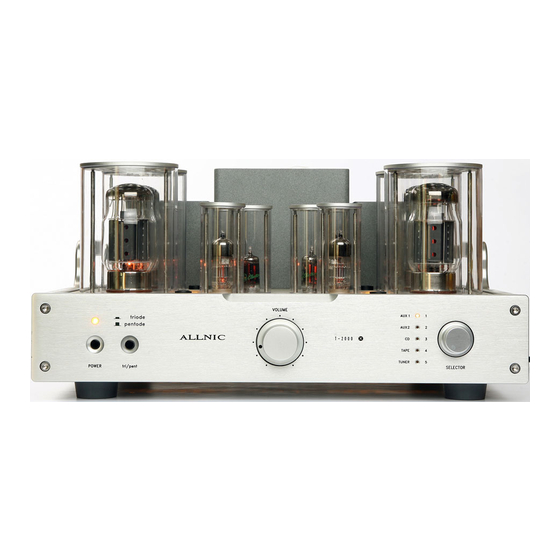

ALLNIC AUDIO T-2000 Owner's Manual

30th anniversary stereo integrated amplifier
Hide thumbs Also See for T-2000:
Table of Contents

Advertisement

Quick Links

Download this manual

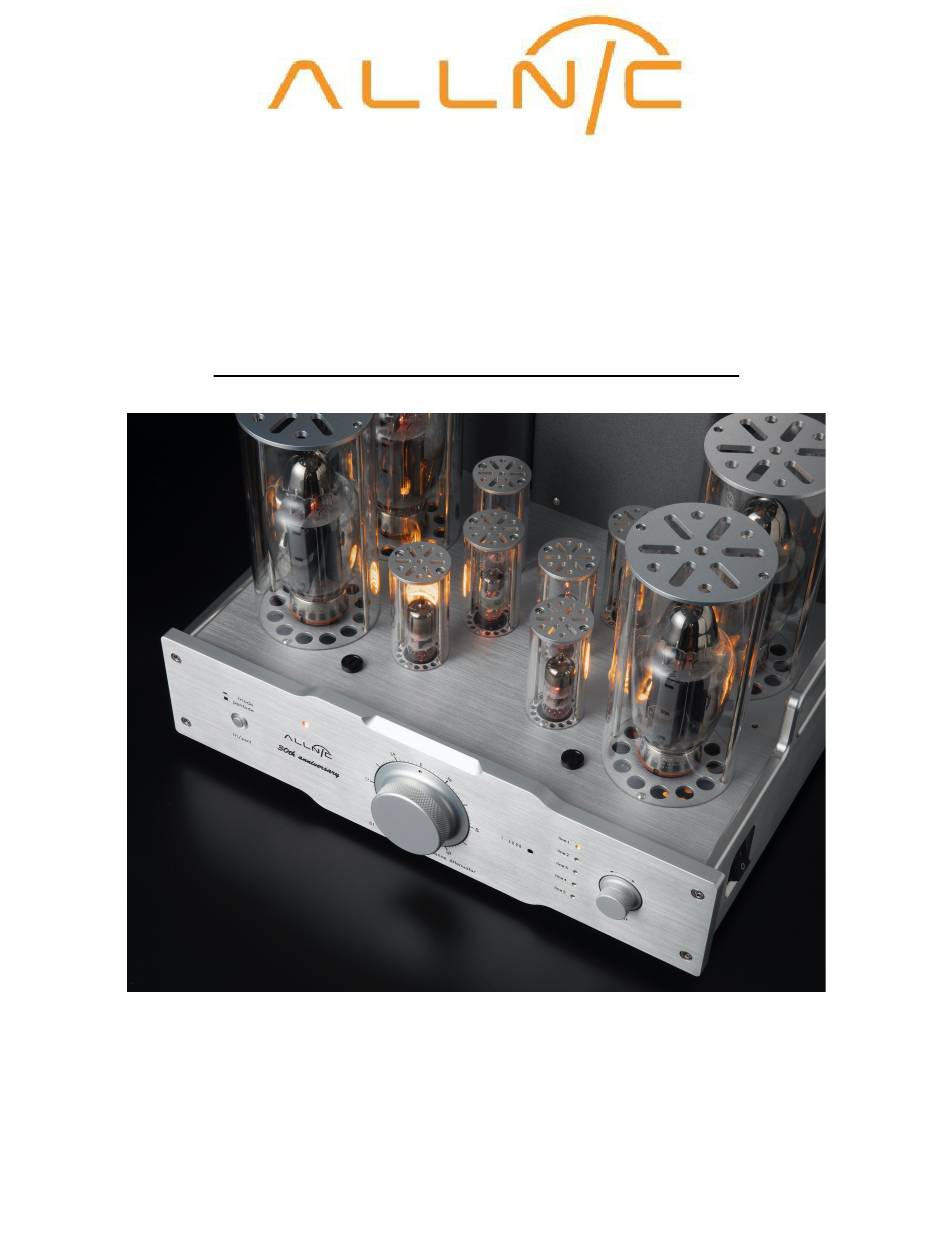

ALLNIC AUDIO
T-2000
30
th
ANNIVERSARY
STEREO INTEGRATED AMPLIFIER
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for ALLNIC AUDIO T-2000

Summary of Contents for ALLNIC AUDIO T-2000

  • Page 1 ALLNIC AUDIO T-2000 ANNIVERSARY STEREO INTEGRATED AMPLIFIER OWNER’S MANUAL...
  • Page 2 T-2000 30th ANNIVERSARY STEREO INTEGRATED AMPLIFIER Thank you for purchasing the Allnic Audio T-2000 30th Anniversary Stereo Integrated Amplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high- quality device, will be rewarded by its excellent operation for years to come.

  • Page 3: Table Of Contents

    WARRANTY SPECIFICATIONS FIGURES Please read about SAFETY before you attempt to use the T-2000 30th Anniversary Stereo Integrated Amplifier - we care about our customers and the equipment, and we want you to enjoy this product for a long time!

  • Page 4: Introducing The T-2000 30Th Anniversary Stereo Integrated Amplifier

    The T-2000 30th Anniversary has the following features: • 120 watts of high-power output per channel in pentode mode and 60 watts in triode. The T-2000 30th Anniversary is a push-pull, triode/pentode switchable integrated amplifier.
  • Page 5 "feel" the differences between this design and other, more conventional, ones. Please imagine, as you listen to the T-2000 30th Anniversary, its sound compared to the sound of an integrated amplifier with conventional 12AU7 or 12BH7's used as drivers, with a load of about 47K ohm, and using 2 to 3mA of current.

  • Page 6: What's In The Box

    We advise that you keep the boxes and other packing materials that your T-2000 30th Anniversary came in. It will be useful if you sell your T-2000 30th Anniversary or in the unlikely event you need to ship it for service.

  • Page 7: Cleaning

    INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio T-2000 30th Anniversary needs to be placed on a solid stand in a location that provides good air circulation around, above and below the stereo amplifier.

  • Page 8: Speaker Terminals

    Please refer to Figure 5. The T-2000 30th Anniversary you have purchased is set internally for AC 110 volt – 60 Hz or 230 volt - 50/60 Hz operation.* It is possible to change this to another AC setting without return of the unit to the factory for re-wiring.

  • Page 9: Tubes And Tube Bias

    The power button on the remote control, at its top left hand corner (refer to Figure 7), is inoperative for the T-2000 30th Anniversary. It is normal for it to take a few minutes for the amplifier to stabilize and the needles of the two meters to rise to their correct position (see the next section, below).

  • Page 10: The Current Meters

    KT170 (Refer to Figure 8). When you turn on the T-2000 30th Anniversary, the needle of the current meter for each KT170 should be between the two parallel lines on the meter face. Any error of current supply to or failure of a KT170 tube is indicated by the needle on the meter moving out from between these two parallel lines.

  • Page 11: Warranty

    Allnic Audio, its dealers and authorized representatives are not responsible for such an outcome. Once a new KT170 and its associated fuse (if required) are installed and the T-2000 30th Anniversary is turned on, following the instructions in “Tubes and Tube Bias” above, use the potentiometer to adjust the bias so the needle of the meter for the new power tube is again between the two parallel lines.

  • Page 12: Specifications

    SPECIFICATIONS FOR THE ALLNIC AUDIO T-2000 30th ANNIVERSARY STEREO INTEGRATED AMPLIFIER Output Power: 120w/channel pentode 60w/channel triode (8 Ω load, at 1KHz) Distortion: 0.17% at 1KHz, 2.83V Frequency Response: 20Hz - 20KHz Flat S/N Ratio: -80dB (CCIR, 1KHz) Damping Factor: 8 at 8Ω...

  • Page 13: Figures

    FIGURES Figure 1 - Square Wave 50Hz Figure 2 - Square Wave 1KHz Figure 3 - Square Wave 10KHz Measured by LEADER LAG-126 Audio Signal Generator and KENWOOD CS-4125 Oscilloscope...
  • Page 14 Figure 4 – T-2000 30th Anniversary Stereo Integrated Amplifier - Front Panel View...
  • Page 15 Figure 5 – T-2000 30th Anniversary Stereo Integrated Amplifier - Rear Panel View...
  • Page 16 Figure 6 – T-2000 30th Anniversary Stereo Integrated Amplifier – Right Side View Figure 7 – T-2000 30th Anniversary Stereo Integrated Amplifier - Remote Control...
  • Page 17 Figure 8 – T-2000 30th Anniversary Stereo Integrated Amplifier - Chassis Top View...
