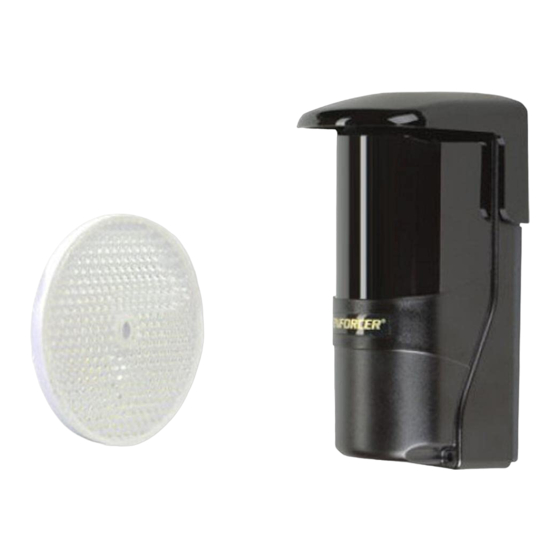

SECO-LARM SLI ENFORCER E-931-S50RRGQ Manual

Reflective photoelectric beam sensor

Table of Contents

Download this manual

50ft Reflective Photoelectric Beam Sensor

 Up to 50ft (15m) sensing range

 Weatherproof (IP55)

 Anti-condensation housing

 12-30V DC/AC 60Hz, 100mA

IMPORTANT: The E-931-S50RRGQ conforms to UL325 for gate operators that use the

N.C. or 10kΩ resistor for monitoring.

Caution:

 This sensor is not designed to prevent bodily injury or loss of life.

 This sensor is not designed for use in environments where explosive gases may be present.

 Use of this sensor in certain security applications may be regulated by local laws or codes.

SECO-LARM is not responsible for compliance with such laws or codes.

E-931-S50RRGQ

Manual

 Form C relay: 0.5A@30VAC/VDC

 Beam status LED

 N.C. Tamper switch:

500mA@30VAC/VDC

Conforms to UL325

Table of Contents

Need help?

Do you have a question about the SLI ENFORCER E-931-S50RRGQ and is the answer not in the manual?

Page 1  This sensor is not designed for use in environments where explosive gases may be present.  Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not responsible for compliance with such laws or codes.
Page 2 12-30V DC/AC Tamper Relay 60Hz, 100mA (Non-Polarity) N.C. N.O. COM N.C.  Polarity does not matter for the power input. Built-in  Connect the N.C. tamper terminal to the 10kΩ resistor tamper circuit of an alarm control panel. SECO-LARM U.S.A., Inc.
Page 3 Alternating flash Poor beam signal sensor. No beam signal, 7. Re-attach the cover, replace the four screws, Solid red triggered and attach the hood to the top of the sensor. SECO-LARM U.S.A., Inc.
Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
