IMC102B-F
Industrial Ethernet Media Converter
User manual
3onedata Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
E-mail: sales@3onedata.com
Website: www.3onedata.com
【Summarize】
IMC102B-F is a type of industrial Ethernet media converter
with 2-port 10/100Base-T(X) Ethernet RJ45 and 1-port
100Base-FX fiber (SC/FC/ST optional). It complies with FCC
and CE standards as well as DIN-rail installation and wide
operating temperature -40~167° F (-40~75° C). This device is
ideal for some industrial environments and provides reliable
and quick solutions for your Ethernet device.
【Packing list】
The Ethernet media converter is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
1. Industrial Ethernet media converter × 1
2. User manual × 1
3. DIN-Rail mounting kit × 1
4. Warranty card × 1
【Feature】
Support IEEE802.3/802.3u/802.3x, store and forward
Support 2-port 10/100Base-T(X) and 1-port
100Base-FX
10/100M, full and half duplex, auto MDI/MDI-X
negotiation
Support -40~167° F (-40~75° C) working temperature
Support 100~240VAC power input
Industrial grade, IP40 protection, metal shell
DIN Rail installation

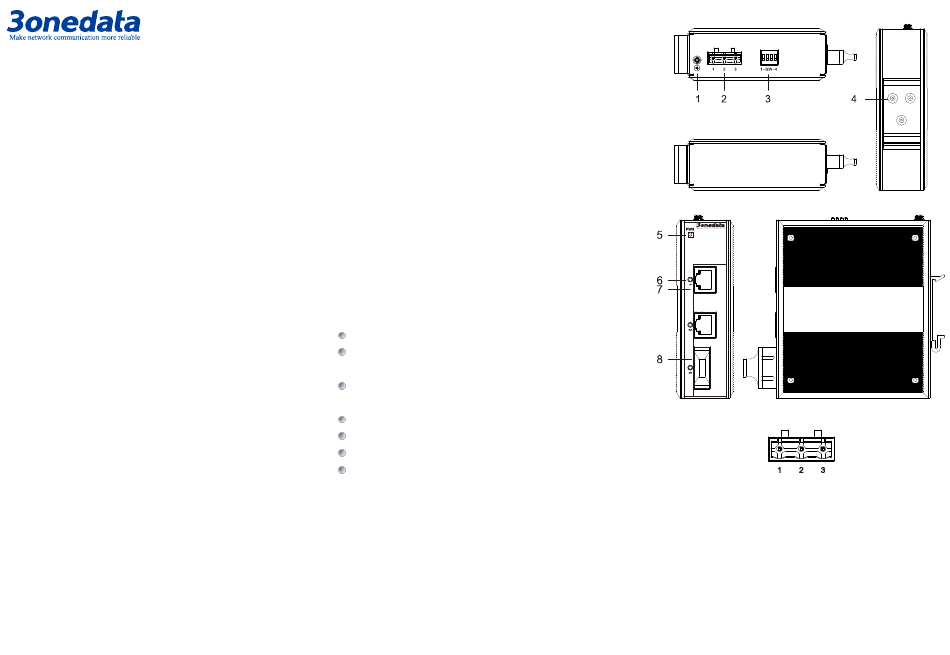

【Panel layout】
1. Ground screw
2. Power input terminal block
3. DIP switch
4. DIN-Rail mounting kit
5. Power indicator
6. Ethernet port link/act indicator
7. 10/100Base-T(X) RJ45 port
8. 100Base-FX (SC/FC/ST) fiber port
- 1 -
Vertical / bottom view
Front view
Side view
【Power supply input】
The converter top panel provides 3-pin power supply input
terminal block, support AC input. Voltage input range is
100~240VAC (terminal block defined as, 1: L/+, 2: FG, 3:
N/-).
Important notice:
1. Power ON operation: insert power cable's terminal block
into device's power port, and then connect power supply
plug to a power source.
2. Power OFF operation: unpin power plug, and then
disconnect the terminal block, please note operation
sequence.
Rear view
