3onedata IMC100 Series Quick Installation Manual

IMC100 Series
Industrial Unmanaged
Media Converter
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the media converter for the first time.
1. Media Converter (with wiring terminal block)
2. Quick installation guide
3. DIN-Rail mounting attachment
4 Warranty card
5 Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series products are industrial media converters. For
convenience, the products of this series adopt the following
number on the left in this guide, please affirm the number of
your product.
Model I. IMC100-1T1F-P48 (1 100M copper port + 1 100M
fiber port + 1 48VDC power supply)
Model II. IMC100-1T1F-P220 (1 100M copper port + 1 100M
fiber port + 1 220VAC power supply)
Model III. IMC100-2T1F-P48 (2 100M copper ports + 1 100M
fiber port + 1 48VDC power supply)
Model IV. IMC100-2T1F-P220 (2 100M copper ports + 1
100M fiber port + 1 220VAC power supply)
Model V. IMC100-1GT1GF-P48 (1 Gigabit copper port + 1
Gigabit fiber port + 1 48VDC power supply)
Model VI. IMC100-1GT1GF-P220 (1 Gigabit copper port + 1
Gigabit fiber port + 1 220VAC power supply)
Model VII. IMC100-1GT1GS-P48 (1 Gigabit copper port + 1
Gigabit SFP + 1 48VDC power supply)
Model VIII. IMC100-1GT1GS-P220 (1 Gigabit copper port + 1
Gigabit SFP + 1 220VAC power supply)
Model IX. IMC100-2GT1GF-P48 (2 Gigabit copper ports + 1
Gigabit fiber port + 1 48VDC power supply)
Model X. IMC100-2GT1GF-P220 (2 Gigabit copper ports + 1
Gigabit fiber port + 1 220VAC power supply)
Model XI. IMC100-2GT1GS-P48 (2 Gigabit copper ports + 1
Gigabit SFP + 1 48VDC power supply)
Model XII. IMC100-2GT1GS-P220 (2 Gigabit copper ports + 1
Gigabit SFP + 1 220VAC power supply)
Model XIII. IMC100-1T1F-2P48 (1 100M copper port + 1
100M fiber port + 2 48VDC power supplies)
Model XIV. IMC100-2T1F-2P48 (2 100M copper ports + 1
100M fiber port + 2 48VDC power supplies)

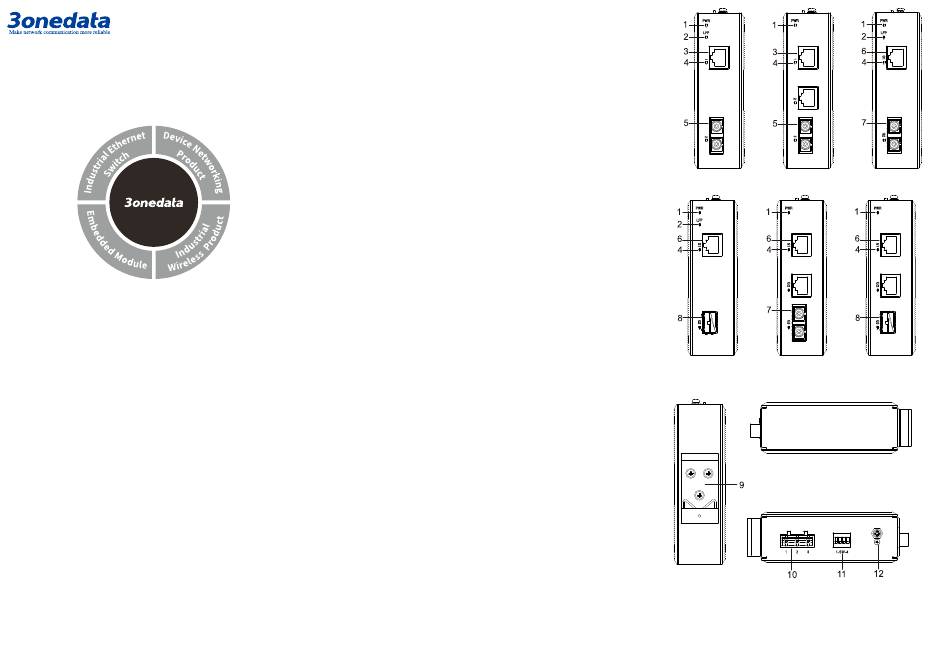

【Panel Design】
Front View

Model I, II, XIII Model III, IV, XIV
Model VII, VIII Model IX, X
Rear view, Bottom view and Top view

Model I-Model XII
Model V, VI
Model XI, XII
