Summary of Contents for Eizo FlexScan L788-i

  • Page 2: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.

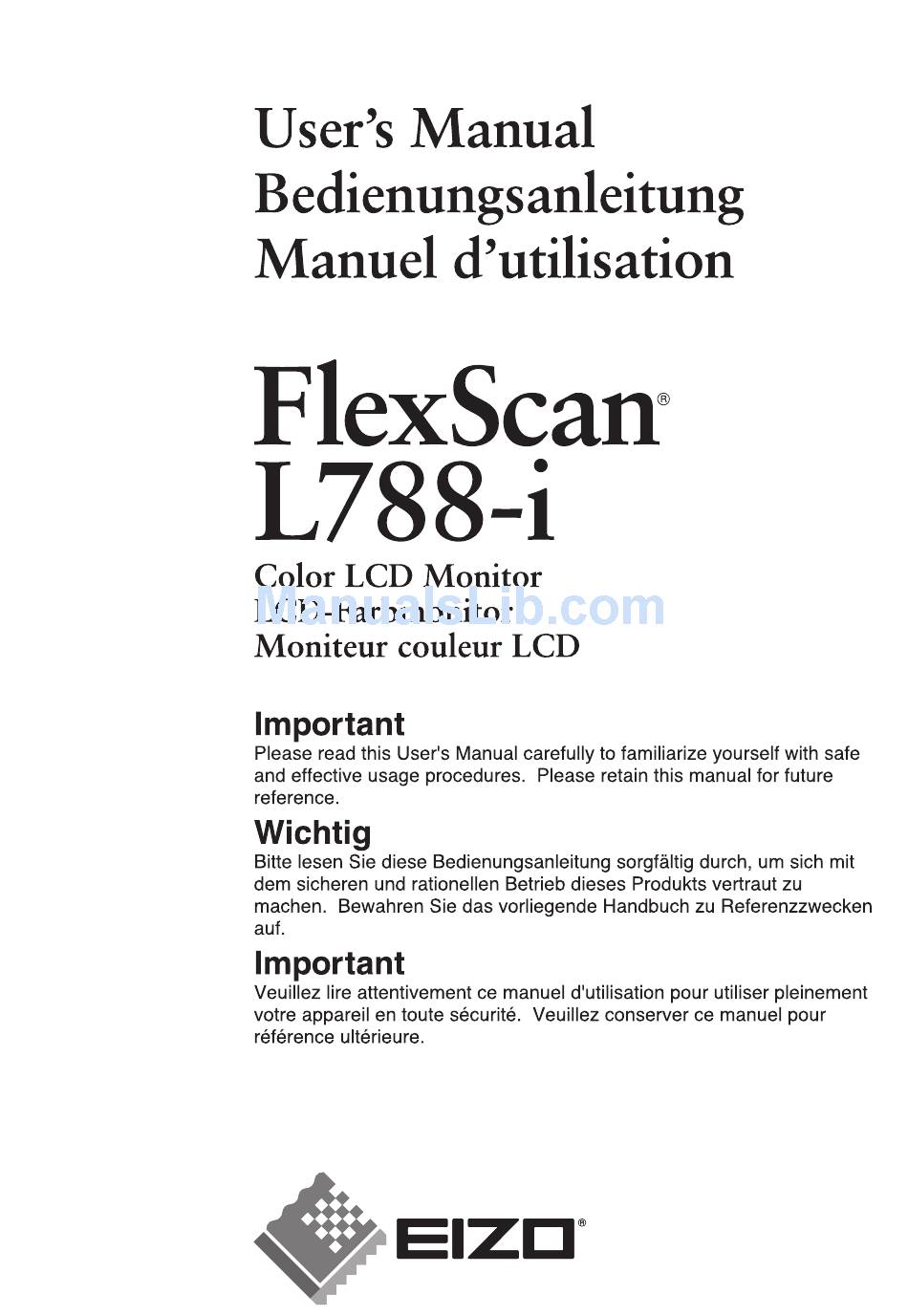

  • Page 3 User’s Manual Color LCD Monitor...

  • Page 4: Safety Symbols

    EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 5: Table Of Contents

    2-2. Connecting the Signal Cable ....... . . 13 2-3. Connecting Two PCs to the Monitor ......16 3.

  • Page 6: Precautions

    English PRECAUTIONS IMPORTANT! This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below).
  • Page 7 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately.
  • Page 8 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
  • Page 9 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 10: Lcd Panel

    English LCD Panel When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation disappears, otherwise it may cause some damages to it.

  • Page 11: Introduction

    INTRODUCTION Thank you very much for choosing an EIZO Color Monitor. 1-1. Features Dual inputs compliant (DVI-I x 2 connecters) DVI (p. 43) Digital input (TMDS (p. 44)) compliant [Horizontal scanning frequency] Analog: 30 - 82 kHz [Vertical scanning frequency] [Resolution] Supports to sRGB (p.

  • Page 12: Controls & Connectors

    English 1-3. Controls & Connectors Front Control Panel ScreenManager Input Signal Selection Button Mode Button* Auto Adjustment Button Enter Button Control Buttons* Power Button Power Indicator* Blue Yellow Flashing yellow (2 times for each) *1 Directly pressing the mode button allows you to switch a color mode between “Custom” and “sRGB”.
  • Page 13 *6 The LCD monitor has the capability of the Portrait/Landscape display (The panel pivots in the clockwise direction 90°.). For the Portrait display, use the software for the portrait. The LCD monitor can be used with an optional arm stand by removing the stand (see page 35).

  • Page 14: Cable Connection

    English CABLE CONNECTION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution (p. 44) and frequency) in accordance with the charts below. NOTE When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 15: Connecting The Signal Cable

    2-2. Connecting the Signal Cable NOTE Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC.
  • Page 16 Plug the power cord into the power connector on the rear of the monitor. Lead the power cord and signal cable into the cable holder at rear of the monitor. NOTE The cables are recommended to lead with slight sag for the smooth motion of the stand and the Portrait/Landscape display.
  • Page 17 Whenever finished, turn off the PC and the monitor. NOTE When turning on the monitor, the kind of the input signal (Signal1 or 2/Analog or Digital) is displayed for a few seconds on the right top corner of the screen.

  • Page 18: Connecting Two Pcs To The Monitor

    English 2-3. Connecting Two PCs to the Monitor Two PCs can be connected to the monitor through the Signal 1 and the Signal 2 on the back of the monitor. Connecting Examples Ex.1 Digital Ex.2 Analog D-Sub mini 15 pin Ex.3...
  • Page 19 Input Signal Selection Button The Priority Input Signal This function is used to select which PC will have priority to control the monitor when utilizing two PCs. The monitor constantly checks the input signals and switches automatically in accordance with the “Input Priority” setting (see table below). Once a priority is set, whenever a change of signal is detected at the selected input, the monitor will switch the input to that signal.

  • Page 20: Screenmanager

    English SCREENMANAGER 3-1. How to use the ScreenManager Entering the ScreenManager Press the Enter Button once to display the main menu of the ScreenManager. Making Adjustments and Settings Select the desired sub menu icon using the Control buttons and press the Enter Button.

  • Page 21: Screenmanager Adjustments And Settings

    Color Mode Management Brightness (Custom)* Contrast Temperature Saturation Gain Reset Power Manager DVI DMPM VESA DPMS EIZO MPMS Sub menu 4-1. Screen Adjustment (p. 23) 4-3. Color Adjustment (p. 29) ** 4-4. Power-save Setup (p. 31) English Reference 3. ScreenManager...
  • Page 22 3. ScreenManager Sub menu 4-2. Displaying Low Resolutions (p. 27) Select the priority input signal. (p. 17) Set the monitor's off timer to on or off. (p. 21) Set the monitor's beeper to on or off. (p. 41) Menu Size Change the size of the menu.

  • Page 23: Useful Functions

    Last 15 min. in “On period” “On period” expired *1 Advance notice (Power Indicator flashing blue) will be given 15 minutes before the monitor automatically enters the “Power Off” mode. To delay entering the “Power Off” mode, press the Power Button during the advance notice period. The monitor will continue to op- erate for an additional 90 minutes.

  • Page 24: Eizo Logo Appearing Function

    Select “Disable”. EIZO Logo Appearing Function When switching on the Power Button on the control panel, the EIZO logo is displayed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.)

  • Page 25: Adjustment

    ADJUSTMENT 4-1. Screen Adjustment NOTE Allow the LCD monitor to stabilize for at least 30 minutes before making image adjustments. The monitor displays the digital input image correctly based on its pre- setting data. Analog Input Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for adjusting the screen to its proper position.
  • Page 26 Run the “Screen adjustment program”. Having read the “Readme.txt” file, run the “Screen Adjustment Program” in the enclosed EIZO LCD Utility Disk. Step by step, adjustment is provided by the wizard guide (If using the Windows, the program can be directly run from the menu screen of the CD-ROM.) .
  • Page 27 The screen position is not incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The <Position> adjustment moves the image to the correct position.
  • Page 28 English Screen image is smaller or larger than the actual screen images. → Adjustment is needed when the input signal resolution and the resolution now being displayed are different. Select <Resolution> and confirm if the resolution now being displayed is the same as the input resolution.

  • Page 29: Displaying Low Resolutions

    4-2. Displaying Low Resolutions The lower resolutions are enlarged to full screen automatically. Using the <Screen Size> function in the <Others> menu enables to change the screen size. Enlarge the screen size when displaying a low resolution. → Select the <Screen Size>. Select the <Screen Size>...
  • Page 30 English Set the brightness of the black area surrounding the displayed image. → Set the <Border Intensity>. In the <Enlarge> mode or <Full Screen> mode, the outer area (border) is usually black. Select <Border Intensity> in the <Others> menu and adjust by using the right and left buttons.

  • Page 31: Color Adjustment

    In the analog input, perform the “Range Adjustment” (p. 26) before making the color adjustments. NOTE Allow the LCD monitor to stabilize for at least 30 minutes before making image adjustments. Performing the <Reset> of the <Color> menu returns the color settings of the selected mode to the default settings.
  • Page 32 English Menu Function Descriptions Temperature To set the color temperature (p. 44) NOTE Setting the value to “Off” presents the natural color temperature of the panel. The values shown in the Kelvin are available only as a reference tool. Setting the temperature under 4000 K or over 10000 K invalidates the color temperature setting.

  • Page 33: Power-Save Setup

    Analog Input This monitor complies with the <VESA DPMS> (p. 44) standard and adopts a power saving method, <EIZO MPMS> (p. 43), which works with a blank screen (totally black screen) like “Blank Screen” ScreenSaver software. To use the PC's Power Saving System (VESA DPMS ) [Procedure] Set the PC's power saving settings.

  • Page 34: Digital Input

    English To set the Power Save with ScreenSaver (EIZO MPMS) Software. [Procedure] Set the PC's appropriate ScreenSaver settings or blank the screen (totally black screen). Select “EIZO MPMS” in the <PowerManager> menu. [Power Saving System] Operation Blank the screen (ScreenSaver or Macintosh Energy Saver) [Power Resumption Procedure] Operate the mouse or keyboard to return to a normal screen.

  • Page 35: Making Use Of Usb (Universal Serial Bus)

    (UNIVERSAL SERIAL BUS) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment PC equipped with USB ports or another USB hub connected to the USB compliant PC Windows 98/Me/2000/XP // Mac OS 8.5.1 or later...
  • Page 36 English After setting up, the monitor's USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Examples 5. MAKING USE OF USB (Universal Serial Bus) Monitor Mouse Keyboard Downstream Ports Downstream ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc.

  • Page 37: Attaching An Arm

    ATTACHING AN ARM The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor. Use an arm or stand of EIZO option. NOTE When attaching an arm or stand, follow the instructions of their user’s manual.

  • Page 38: Troubleshooting

    English TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. No picture problems → See No.1 ~ No.2 Imaging problems → See No.3 ~ No.13 Other problems → See No.14 ~ No.16 USB problems → See No.17 ~ No.18...
  • Page 39 Please select one of the two. Adjust the <Brightness> (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.) Do you use the screen saver or timer when...

  • Page 40: 38 7. Troubleshooting

    Check the downstream ports by connecting the peripherals to other downstream ports. If the problem is solved by doing this, contact an EIZO dealer. (For details, refer to the manual of the PC.) Try executing the following method. Restarting the PC - Restarting the PC...

  • Page 41: Cleaning

    CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 42: Specifications

    English SPECIFICATIONS LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration Plug & Play Dimensions Dimensions (without stand) Weight...

  • Page 43: Default Settings

    Auto Adjustment Button pressed. ScreenManager data-save executed. Monitor not connected correctly. PC turned off. Monitor received unsupported signal frequency. Monitor is in the advance notice mode of the Off Timer. The power will be off within fifteen minutes. 9. SPECIFICATIONS English Digital input...

  • Page 44: Pin Assignment

    Ground (return for +5V, Hsync and Vsync) Hot Plug Detect TMDS Data 0- TMDS Data 0+ TMDS Data0/5 Shield Downstream Series A EIZO i·Sound L3 EIZO ScreenCleaner Signal TMDS Clock shield TMDS Clock+ TMDS Clock- Analog Red Analog Green Analog Blue...

  • Page 45: Glossary

    (EIZO Monitor PowerManager Signaling) EIZO MPMS, “EIZO Monitor PowerManager Signaling” also enables power saving on the monitor side. EIZO MPMS recognizes video signals from the PC when the PC is in a power saving mode and reduces energy consumption of the monitor.
  • Page 46 Computer monitors generally give best performance at high temperature settings. 5000K: Often used in printing industry. 6500K: Good for video-image display. 9300K: Default setting for your EIZO monitor. TMDS (Transition Minimized Differential Signaling) A signal transition method for the digital interface...

  • Page 47: Appendix/Anhang/Annexe

    Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme). Signaux ont été enregistrés en usine dans le microprocesseur du moniteur, conformément au diagramme de synchronisation ci-dessous.
  • Page 48 Dot Clock Mode VESA 56.3 800 × 600 @ 85 Hz VESA 65.0 1024 × 768 @ 60 Hz VESA 75.0 1024 × 768 @ 70 Hz VESA 78.8 1024 × 768 @ 75 Hz VESA 94.5 1024 × 768 @ 85 Hz VESA 108.0 1152 ×...
  • Page 49 Congratulations! The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.
  • Page 50 Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 51 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
  • Page 52 Hinweis zur Ergonomie : Dieser Monitor erfüllt die Anforderungen an die Ergonomie nach EK1-ITB2000 mit dem Videosignal, 1280 × 1024 RGB analog, 0,7 Vp-p und mindestens 60,0 Hz Bildwiederholfrequenz, non interlaced. Weiterhin wird aus ergonomischen Gründen empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.)
  • Page 53 Vous trouverez toutes les informations sur le recyclage dans les sites Web suivants: Återvinningsinformation för kunder i EU: All information om återvinning finns på följande webbsidor: http://www.swico.ch http://www.eizo.de http://www.eizo.se Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com...
