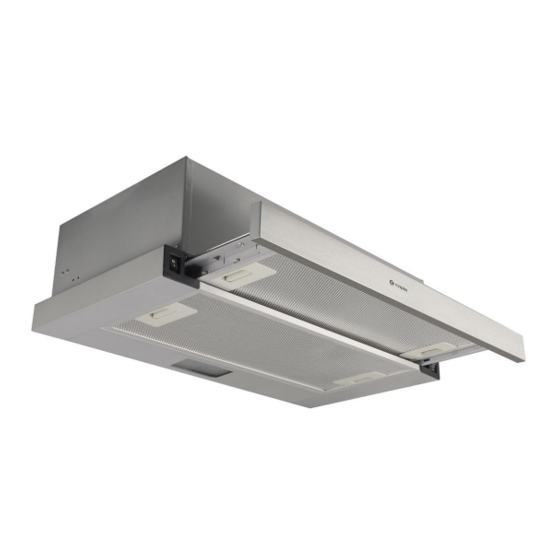

- Page 1 Te l e s c o p i c H o o d I n s t r u c t i o n M a n u a l T SCH 6 01 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety Instructions Environmental Protection Installation Installing the Charcoal Filter Operation Care and Maintenance Troubleshooting Product Dimensions Caple Contact Details Instruction manual TSCH601 Please keep this instruction manual for future reference... -
Page 3: Introduction
To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple extractor should give you years of trouble- free use. To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here. - Page 4 This appliance must only be used for the purpose it is intended. Other types of use are not permitted and may prove dangerous. Caple will not be held liable for any damage caused by the incorrect use of the appliance.
- Page 5 I M P O R T A N T Caple cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that Caple reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance.
-
Page 6: Safety Instructions
- Regulations concerning the discharge of air have to be conformed to. - Do not flambé under the cooker hood. - Never leave frying pans unattended during use as over- heated fats and oils may catch fire. Instruction manual TSCH601 Please keep this instruction manual for future reference... - Page 7 - Never immerse the appliance in water. - To avoid all risk, if the power cable is damaged, it must only be replaced by a Caple appointed engineer. Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 8 N.I.C.E.I.C who will comply with the I.E.E and local regulations. Electrical information can be found on the rating plate. Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 9 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual TSCH601 Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 11: Installation
If 3 or more burners are used simultaneously. Never operate the gas hob without pans situated on the burners as the excess heat can damage the extractor. Instruction manual TSCH601 Please keep this instruction manual for future reference... - Page 12 7. Fix the cooker hood with the safety screws. The two holes are positioned on the back casing, with diameter of 6mm (see b.) Attach the one-way valve to the cooker hood. Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 13 4 screws supplied. N OT E : The ducting is an optional accessory, it is not supplied. Remove the protection film before installation. Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 14 22mm adjustment back and forth. › Fix the hood into the bottom of the cabinet with the 4*30mm screws. Instruction manual TSCH601 Please keep this instruction manual for future reference ...
-
Page 15: Installing The Charcoal Filter
We recommend replacing these filters every 6 months. Replacement filters (CAP61CF) can be purchased directly from www.caple.co.uk We recommend replacing these filters every 6 months. filters (CAP61CF) can be purchased directly from www ... -
Page 16: Operation
Light button: located on the left side of the hood, switches the light on and off. Speed button: located on the right side of the hood. “=”: high speed level. “-”: Low speed level. “o”: Off. Instruction manual TSCH601 Please keep this instruction manual for future reference... -
Page 17: Care And Maintenance
We recommend replacing them at least every 6 months. This extractor uses CAP60CF charcoal filters. Filters can be purchased directly from www.caple.co.uk. Instruction manual TSCH601 Please keep this instruction manual for future reference... - Page 18 L I G H T S O U R C E E N E R G Y C L A S S This product contains a light source of energy efficiency class G. Instruction manual TSCH601 Please keep this instruction manual for future reference...
-
Page 19: Troubleshooting
Replace the charcoal filter (if in recirculation mode). If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk Instruction manual TSCH601... -
Page 20: Product Dimensions
D I M E N S I O N S P R O D U C T D I M E N S I O N S TSCH601 200mm 40mm Instruction manual TSCH601 Please keep this instruction manual for future reference... - Page 21 Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 22 N OT E S : Instruction manual TSCH601 Please keep this instruction manual for future reference...
- Page 23 N OT E S : Instruction manual TSCH601 Please keep this instruction manual for future reference...
-
Page 24: Caple Contact Details
Caple Service BS11 8DW Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk...
