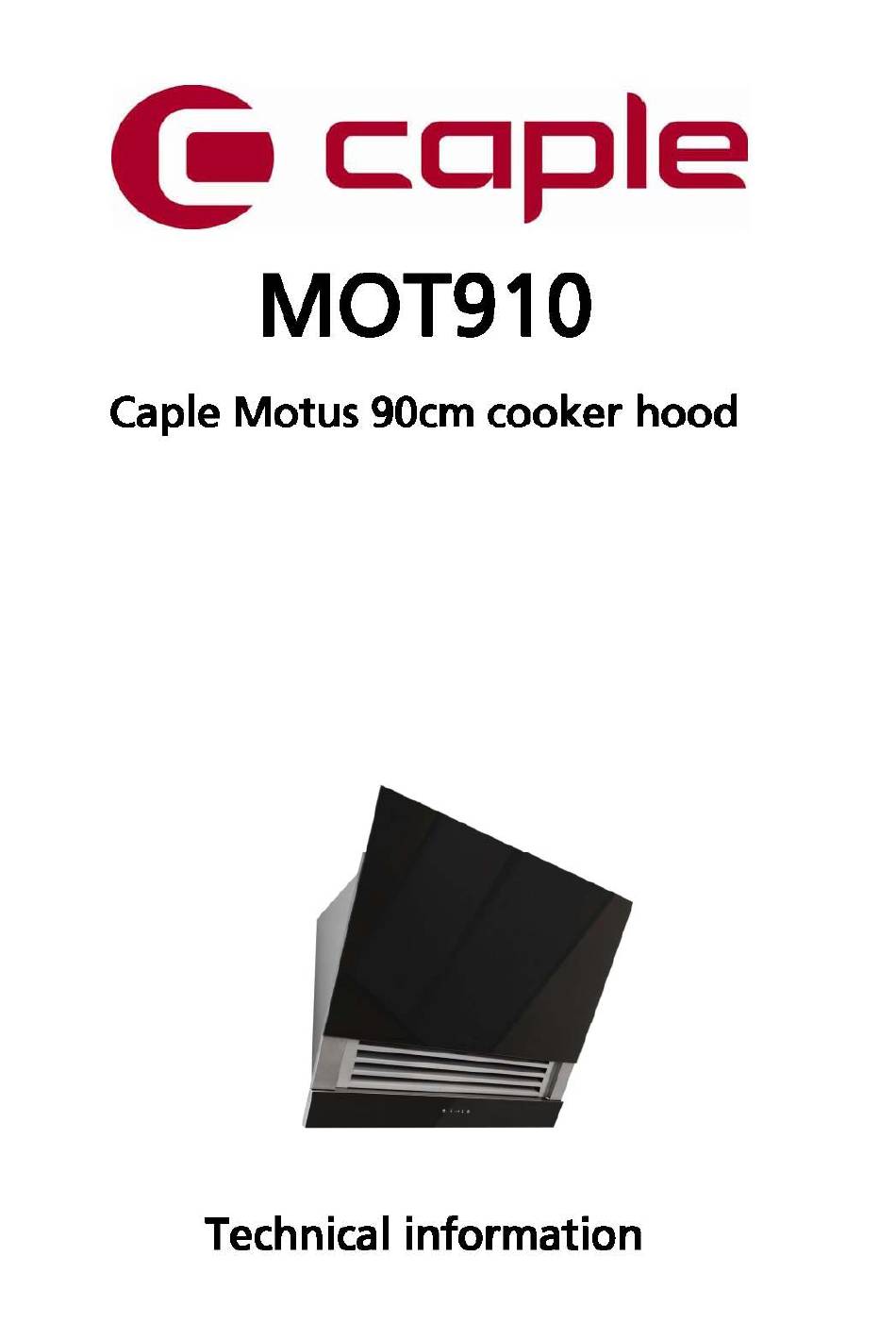

Caple Motus MOT910 Technical Information

Caple Motus MOT910 Technical Information

90cm cooker hood
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Motus MOT910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple Motus MOT910

Summary of Contents for Caple Motus MOT910

  • Page 3 MAIN BOARD S-DD1 POWER 44001599999 S-DD2 WIRING BOX 75072600100 SCHEDA IMP. ELETTRICO SLTC/ATT. 44023000027 M/F FLAT CABLE SDD4/5 44024999366 ASS. R. VETRO SLTC75 90 CAPLE ASS-N256 BLACK 75421207256 MAGNET 20X5 COUNTERSUNK 60041091553 FLAT MILLED HINGE 60186303003 GREASE FILTER SL73 LFI-M001 60080730000 TRASFORMATORE EL.
  • Page 6 SLTR75 WIRING DIAGRAM PAG.4 SLTC75 WIRING DIAGRAM PAG.5 LINE DRAWING PAG.6 EXPLODED VIEW + SPARE PART LIST SLTR75 PAG.7 EXPLODED VIEW + SPARE PART LIST SLTC75 PAG.8 TROUBLE SHOOTING PROBLEM THE HOOD DOES NOT WORK PAG.9 CHECK IF THE HOOD IS PROPERLY CONNECTED PAG.
  • Page 7 ANTI CRUSH SENSOR DOES NOT WORK PAG. 65 20 REPLACE THE TRANSFORMER OF THE ACTUATOR PAG. 65 THE HOOD WORK BUT THE DISPLAY IS OFF PAG. 69 21. REPLACE THE DISPLAY PAG. 69 THE HOOD GOES UP TO 4/5 cm THAN IT GOES DOWN AGAIN PAG.
  • Page 8 The hood does not work 6. CHECK IF THE HOOD IS PROPERLY CONNECTED. Check if the circuit braker or the corresponding switch inside the house is in the correct position and is working properly. b. Check if the tension in the house correspond to that one in the rating plate of the product.
  • Page 9 The hood does not work 7. CHECK IF THE RED BUTTON «RESET» IS PUSHED In the upper side of the hood there is a red button that has the function of turn off the hood. This button must be pushed down.
  • Page 10 The hood does not work 8. CHECK THE FUNCTIONING OF THE PUSHBUTTON When the hood is turned on, the speed indicators of the pushbutton light up. Therafter they turn off but the other remain with low intensity. (in the SLTR version this function is in the display)
  • Page 11 The hood does not work b. lift up the glass for 20 cm in order to activate the security. At this point the glass should open automatically and the motor stay off.
  • Page 12 The hood does not work If the glass lift up, (if not go to chapter 9) c. The problem is in the pushbutton.
  • Page 13 The hood does not work 9. How to replace the touch control SLTC a. Remove the stainless steel grill.
  • Page 14 The hood does not work d. Unscrew the two screw on the magnet.
  • Page 15 The hood does not work e. After removing the magnet, the front panel opens...
  • Page 16 The hood does not work f. in order to remove the pushbutton is necessary to unscrew by using a tool of 5.5 the two nut in the back of the panel.
  • Page 17 The hood does not work g. later, remove the stainless steel the cover of the pushbutton by pulling outwards.
  • Page 18 The hood does not work h. Remove the external wiring board and disconnect the flat cable.
  • Page 19 The hood does not work i. Now remove the wiring board glued on the glass. It is recommended to heat the wiring board with a Phon in order to facilitate the removal. to remove the wiring board use a small screwdriver.
  • Page 20 The hood does not work l. to glue the new wiring board making sure to place the square in correspondance of the symbol on the glass.
  • Page 21 The hood does not work m. Repeat all the steps backwards to reactivate the pushbutton: 1: Reconnect the flat cable, 2: place the upper wiring board making sure that the two red connectors concide, 4: replace the stainless steel cover, 5: replace the protection and screw the nut.
  • Page 22 The hood does not work 10. HOW TO REPLACE THE ROTARY BUTTON (SLTR) a. Remove the stainless steel grill.
  • Page 23 The hood does not work d. Unscrew the two screw on the magnet.
  • Page 24 The hood does not work e. After removing the magnet, the front panel opens...
  • Page 25 The hood does not work f. Disconnect the flat cable and the encoder cable...
  • Page 26 The hood does not work g. Remove the band in the clamp adhesive...
  • Page 27 The hood does not work h. Remove the 4 screw and remove the rotative button.
  • Page 28 The hood does not work i. remove the 3 screw on the wiring board.
  • Page 29 The hood does not work l. Remove the rectangular fairlead...
  • Page 30 The hood does not work m. Remove the wiring board assembly.
  • Page 31 The hood does not work n. Remove the bush holding the knob by using an Allen key 2.5mm .
  • Page 32 The hood does not work o. Remove the four screw holding the wiring board and the connectors the replace with a new one and repeat all the step to reinstate the assembly.
  • Page 33 The hood does not work p. Attn: the knob must be positioned perfectly concentric to the hole otherwise could not rotate easily. NOT OK...
  • Page 34 The hood does not work 11. HOW TO REPLACE THE FLAT CABLE if after the replacement of the pushbutton the problem is not solved, it is recommended to replace the flat cable of the pushbutton, both that of the main print and that of wiring board.
  • Page 35 The hood does not work 12. HOW TO ACCESS TO THE ELECTRICAL BOX This step could be required to carry out several assistance operation. a. Remove the two screw securing the LED strip panel.
  • Page 36 The hood does not work b. Remove the panel and disconnect the two poles connector in the LED strip.
  • Page 37 The hood does not work c. Unscrew the two screw securing the bracket of the electrical system.
  • Page 38 The hood does not work d. Remove the electrical system by pulling downward.
  • Page 39 The hood does not work If the glass does NOT lift up 13. CHECK IF THE POWER CABLE OF THE ACTUATOR IS PROPERLY CONNECTED. a. Open the glass manually and keep it open by using some paper tape.
  • Page 40 The hood does not work b. Remove the screw of the magnet (as in chapter 6 c-d-e) and check if the two poles connector with blue and brown cable are connected properly.
  • Page 41 The hood does not work c. Carry out the same test for the 9 poles connector...
  • Page 42 The hood does not work 14. CHECK IF IN THE MAIN PRINT ALL THE CONNECTORS ARE PROPERLY CONNECTED. a. After removing the bracket holding the electrical system (Cap.8), open the cover of the electrical boxes and check if ALL the connectors are properly connected to the wiring board.
  • Page 43 The hood does not work 15. HOW TO REPLACE THE MAIN PRINT a. Before disconnectiong the connectors of the main print it is recommended to take note of the connection on a paper or to take a picture to avoid to reconnecting wrongly the new main print. Check the connections on the wiring diagram at the beginning of this manual.
  • Page 44 The hood doesn’t work and the lights turn on 16. REPLACE THE TRANSFORMER CONNECTED TO THE ACTUATOR. a. After removing the holding bracket of the electrical system (Cap.8), disconnect the cable of the transformer and replace it with a new one. Pay attention to riconnect them accurrately. Primary Secondary...
  • Page 45 The hood doesn’t work and the lights turn on 17. REPLACE THE CLOSING MICRO SWITCH a. lift the glass manually and open the hood as shown in Chap. 6 c-d-e. b. Remove the cover of actuator assembly...
  • Page 46 The hood doesn’t work and the lights turn on c. Remove the 2 screws of the micro switch and extract it.
  • Page 47 The hood doesn’t work and the lights turn on d. Desolder the cables and unscrew the micro switch from its assembly, replace it with a new one soldering the cables.
  • Page 48 The hood doesn’t work and the lights turn on e. Reassemble the micro switch in its own bracket and secure it in the hood by positioning the bracket in the centre of the loop (att: this adjustment is needed to determine the lower end of the glass)
  • Page 49 The hood doesn’t work and the lights turn on f. Remove the insulating tape and close manually the glass until complete closure. Now turn on the hood and carry out the functioning test.
  • Page 50 The hood doesn’t work and the lights turn on 18. REPLACE THE MOTOR a. Remove the aesthetic chimney, if there is any . b. Remove the screws securing the motor in the upper side of the hood. (ATT. If the motor is pointed towards the posterior side, it is necessary to remove the hood).
  • Page 51 The hood doesn’t work and the lights turn on c. disconnect the 6 poles connector of the motor and replace the suction unit.
  • Page 52 The hood doesn’t work and the lights turn on 19. REPLACE THE ACTUATOR a. To facilitate the operation, positioning the glass half way and block it with insulating tape.
  • Page 53 The hood doesn’t work and the lights turn on b. Keep the front panel open by using some wood slats tailor made...
  • Page 54 The hood doesn’t work and the lights turn on c. Remove the metal cover removing the 6 screws.
  • Page 55 The hood doesn’t work but the light turns on d. Disconnact the net, the 9 poles connection, the encoder connection and only for SLTR, also the flat on the display. Solo SLTR...
  • Page 56 The hood doesn’t work but the light turns on e. Remove the six screws fixing the actuator holder...
  • Page 57 The hood doesn’t work but the light turns on f. Through the two slots, remove the two M4 screws fixing the glass support...
  • Page 58 The hood doesn’t work but the light turns on g. Remove the actuator holder...
  • Page 59 The hood doesn’t work but the light turns on h. Remove the actuator holder. Attention: regarding SLTR it is necessary to remove the flat cable of the pulling it out from the cable gland. Solo SLTR...
  • Page 60 The hood doesn’t work but the light turns on i. Remove the bracket holding the micro switch.
  • Page 61 The hood doesn’t work but the light turns on l. Using two wrenches 17mm large and an allen wrench 5mm large, unscrew the two allen wrenches on the upper part.
  • Page 62 The hood doesn’t work but the light turns on m. Remove the screw and the nut holding the actuator on the lower side.
  • Page 63 The hood doesn’t work but the light turns on n. Remove the actuator and replace it with a new one.
  • Page 64 Anti-crushing sensor doesn’t work 20 Test the security circuit Control that the cable with the yellow and grey wires is rightly connected to the 9 poles plug and socket connector and to the board. In order to do that fit the tip of the tester together with CN115 connector, cnsequuently open the glass manually.
  • Page 65 b. In order to replace the security micro switch, it is necessary to remove the actuator (See chap.15), than remove the bracket holding the micro.
  • Page 66 c. Remove the two screws on the back of the bracket...
  • Page 67 d. Unscrew the screws holding the micro switch, cut the wire and replace the micro welding the wires again...

  • Page 68: Display Replacement

    The hood works and the display is off (only for SLTR) DISPLAY REPLACEMENT a. Remove the stainless steel cover removing the three screws...
  • Page 69 The hood doesn’t work and the display is off (only for SLTR) b. Remove the upper wiring board and desconnect the flat cable...
  • Page 70 The hood doesn’t work and the display is off (only for SLTR) c. Disconnect the control board from the glass (if necessary use a phon in order to soften the glue and easily detach the board)
  • Page 71 The hood doesn’t work and the display is off (only for SLTR) d. Place the new board paying attention to center perfectly the symbols on the board with the simbols on the glass. If the problem persists replace the Flat Cable.
  • Page 72 The hood goes up to 4/5 cm than it goes down again VERIFY IF THE ENCODER IS WORKING a. Verify if the wires of the encoder are rightly connected (BROWN- GREEN-WHITE) both on the connector and on the wiring board.
  • Page 73 The hood goes up to 4/5 cm than it goes down again b. In case of SLTR verify if the encoder is connected to the rotary button wiring board, c. If the problem persists replace the actuator (See chap. 17)
  • Page 74 THE LIGHT DOESN’T TURN ON VERIFY THAT THE LED BAR IS WORKING a. Unscrew the two screws on the lower side of the hood in order to remove the panel.
  • Page 75 THE LIGHT DOESN’T TURN ON b. Disconnect the connector and check if there is 12 Vcc. Power when you turn the light on.
  • Page 76 THE LIGHT DOESN’T TURN ON REPLACE THE BALLAST a. If the transformer’s output voltage is 12V, replace the LED bar pushing it outward and replace it with another one that is perfectly interchangeable...
  • Page 77 THE LIGHT DOESN’T TURN ON b. If the transformer’s output voltage is not 12V, replace the transformer of the LED bar. Remove the electrical support equipement as shown on chpater 10. c. Remove the two covers of the tranformer and disconnect the cables of the led transformer.
  • Page 78 THE LIGHT DOESN’T WORK d. Remove the screws fastening the transformer and replace it with a new one.
