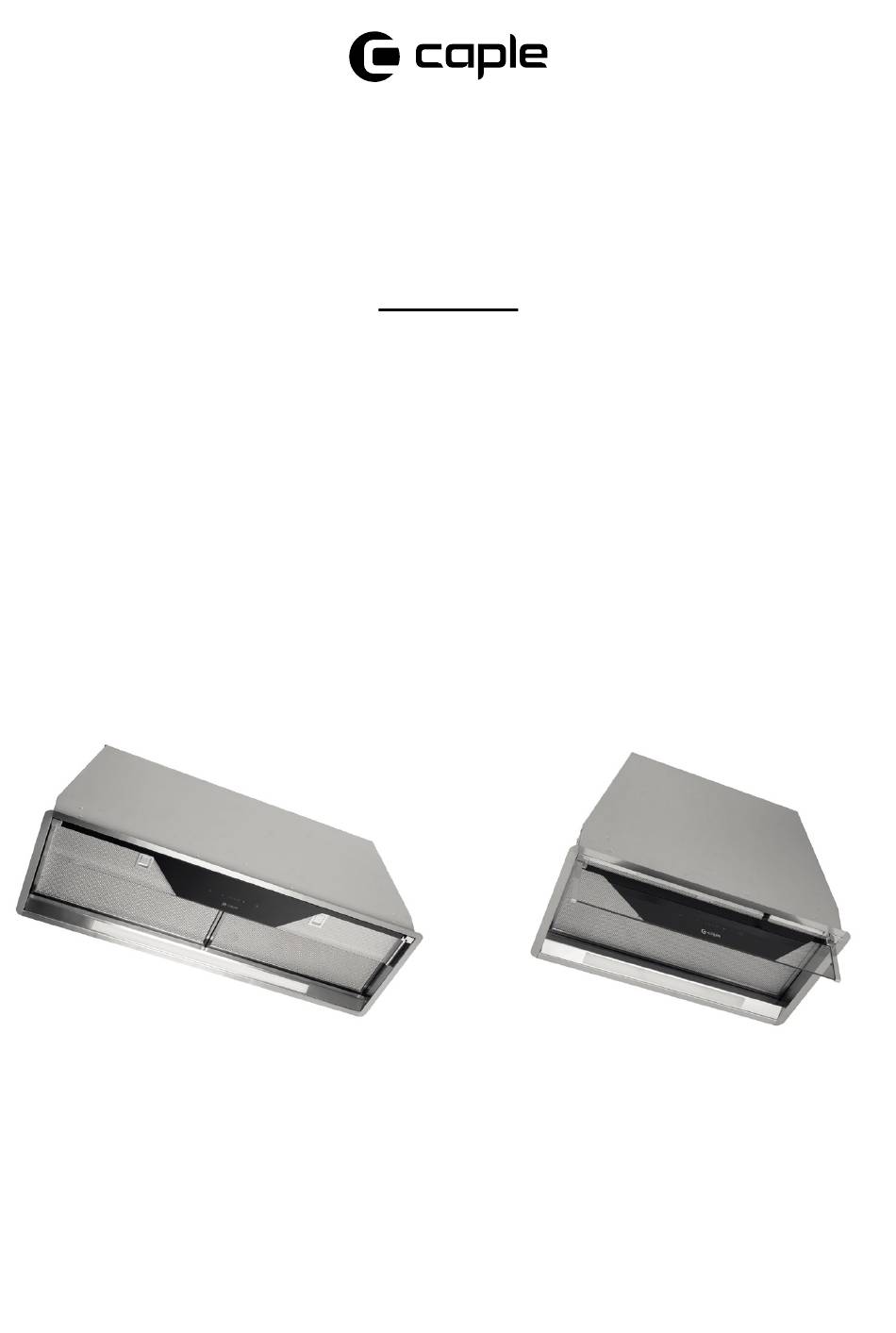

- Page 1 T o u c h C o n t r o l B u i l t - U n d e r H o o d I n s t r u c t i o n M a n u a l TBU 85 0 / TBU5 20 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Safety Instructions Environmental Protection Uses Installation Control Panel Timing Cleaning and Maintenance Caple Contact Details Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 3 Therefore the room should be provided with air-intakes to allow a constant flow of fresh air. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 4 - This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 5 These are a fire hazard and do not guarantee the required safety of the appliance. - The cooker hood can get very hot during cooking due to heat rising from the hob. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 6 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 7 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
- Page 8 This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 9 › In ducted mode (Fig.2), fumes are directly conveyed outside, through an evacuation duct connected from the extractor to the outside. Both charcoal filter and air deflector are not necessary in this case. Fig.1. Fig.2. FIG.3 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 10 Open the glass by rotating it (Fig.3). Then, remove the grease filters by pushing the special filter handle and pulling it downwards so to unfasten it from its slot (Fig.4). FIG.3 FIG.4 10 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 11 › Connect the flange with appropriate ducting to convey the air to the top of the cabinet. › Connect the appliance to the electrical mains through the supply cord. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 12 › Rotate the motor to have the air outlet on the rear side and then fix the screws previously removed (Fig.1 FIG.9 FIG.10 F I G. 9 F I G. 1 0 C O N T R O L PA N E L 12 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 13 In the meantime, the operation may be incorrect. The appliance has an electronic device which allows it to automatically switch off after 4 hours working from the last operation. Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 14 › If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after 7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W. 14 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 15 › The active charcoal filter will need replacing depending on the use, but at least every six months. To purchase replacement charcoal filters (TBU520: 2 x CAP78CF, TBU850: 2 x CAP42CF) please visit www.caple.co.uk. › To clean the appliance itself, tepid water and neutral detergent are recommended, while abrasive products should be avoided.
- Page 16 › If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. FIG.6 FIG.6 FIG.7 FIG.7 FIG.12 FIG.4 FIG.12 FIG.4 FIG.8 FIG.8 FIG.8 FIG.8 16 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 17 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 18 N OT E S : 18 Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 19 N OT E S : Instruction manual TBU850 / TBU520 Please keep this instruction manual for future reference...
- Page 20 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
