SRM Ergometer Manual

4. Settings SRM Ergometer Software

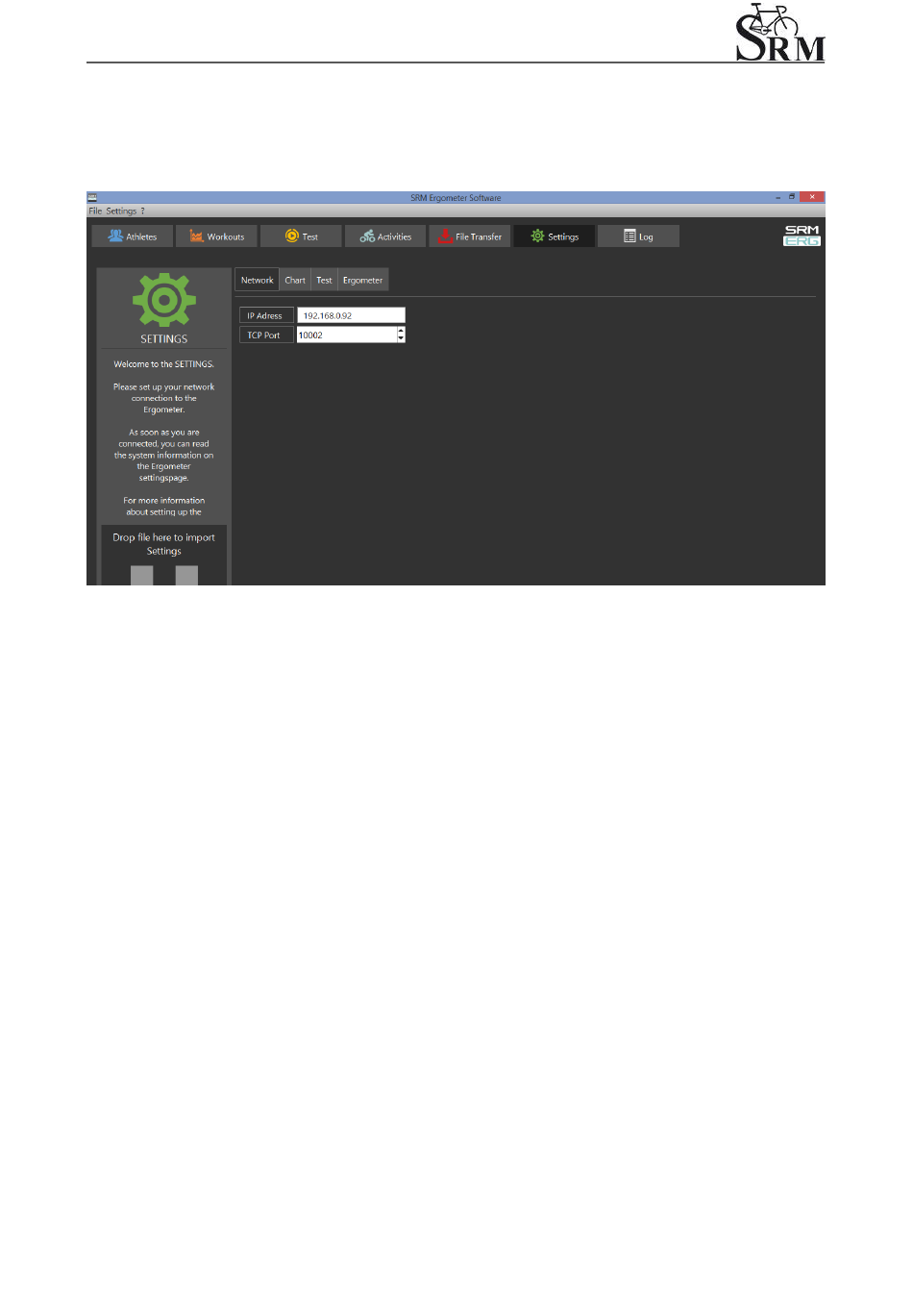

Network

Choose a free and valid IP address (192.168.0.x) for your computer in the
same sub network as the SRM Ethernet Torque Analysis Box (To install
the Torque Analysis Box see the manual of the Torque Analysis).
If you are using MS Windows: Press "Start" button, open "Control Panel",
open "Network and Internet", select "Network and Sharing Center", click
"View Network Connections", click on the connection you need to change
(i.e. LAN), open "Properties", double click on "Internet Protocol Version 4
(TCP/IPV4)" and insert the chosen IP address.
Please insert a different IP address than that of the Torque Box. Just
change the last or the last two numbers of the Torque Box IP (e.g.
192.168.0.89). Otherwise there will be a conflict of the IP addresses.
5
