Mechanical adjustment & positioning of the athlete
Optimizing individual positioning is quickly achieved by adjusting the
saddle and handlebar vertically and/or horizontally. To do so you have to
open the locking lever. Because of a ruler which is attached to the saddle
post you can reproduce your perfect positioning.
If adjusted correctly, it should be easy to move the vertical and horizontal
stems when the quick release is open. A 5 mm Allen key situated on the
saddle and handlebar mounts allows for further rigidity.

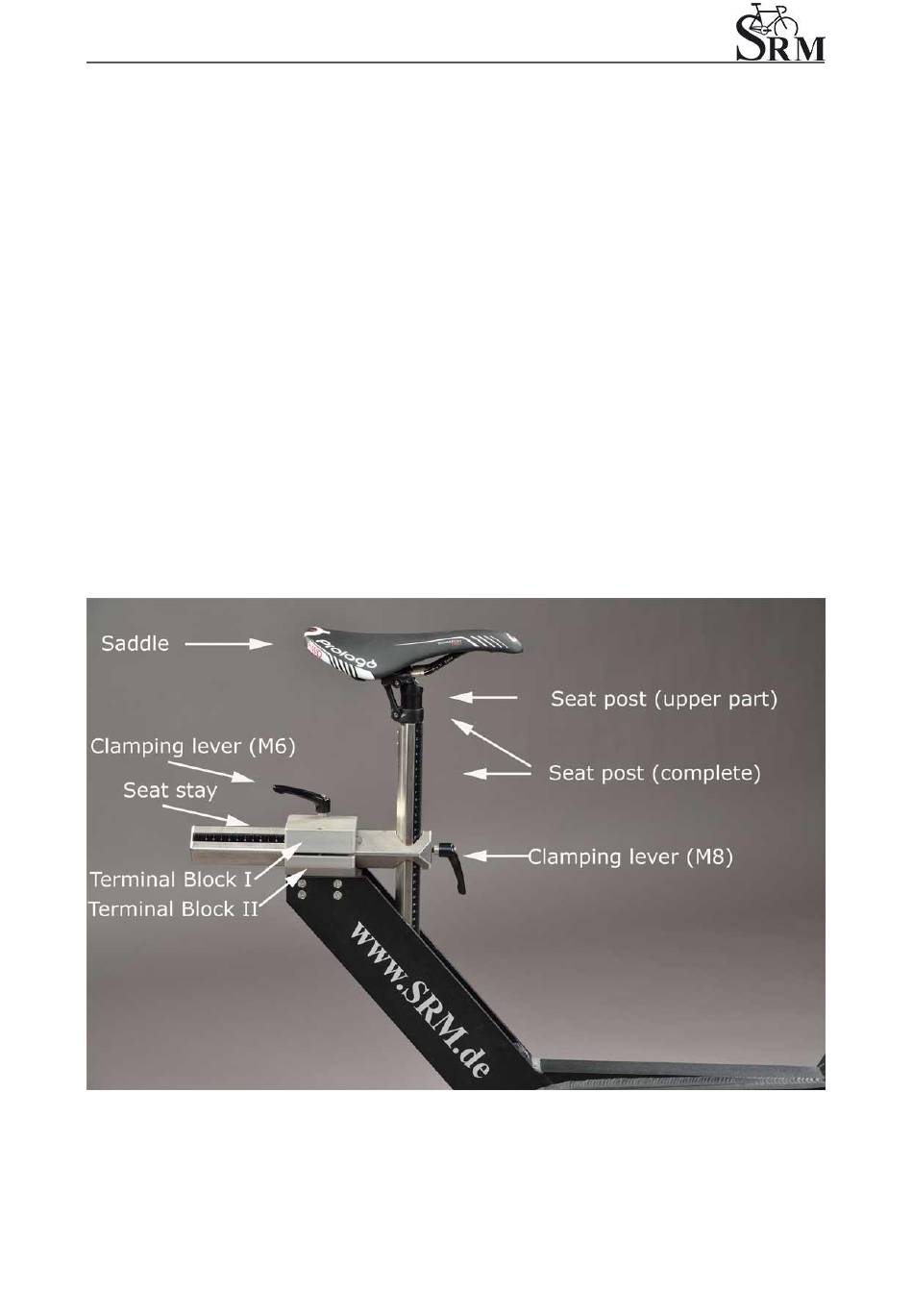

Horizontal & Vertical Positioning of the saddle
The ruler which is integrated in the seat stay gives you the distance
between the center of the bottom bracket and the front of the saddle. The
distance in cm can be read from the left hand side of the seat stay.
