1. General preparation for performance diagnostics

• Power-on spiroergometry (30min before beginning of test)
• Power-on ergometer's power supply
• Preparation diagnostic devices (Lactate analysis, etc.) 30min beginning
of test
• Room temperature (18 – 24°C) should measured
• Relative air humidity should measure (30 – 60%) in room
• Check position of ventilator

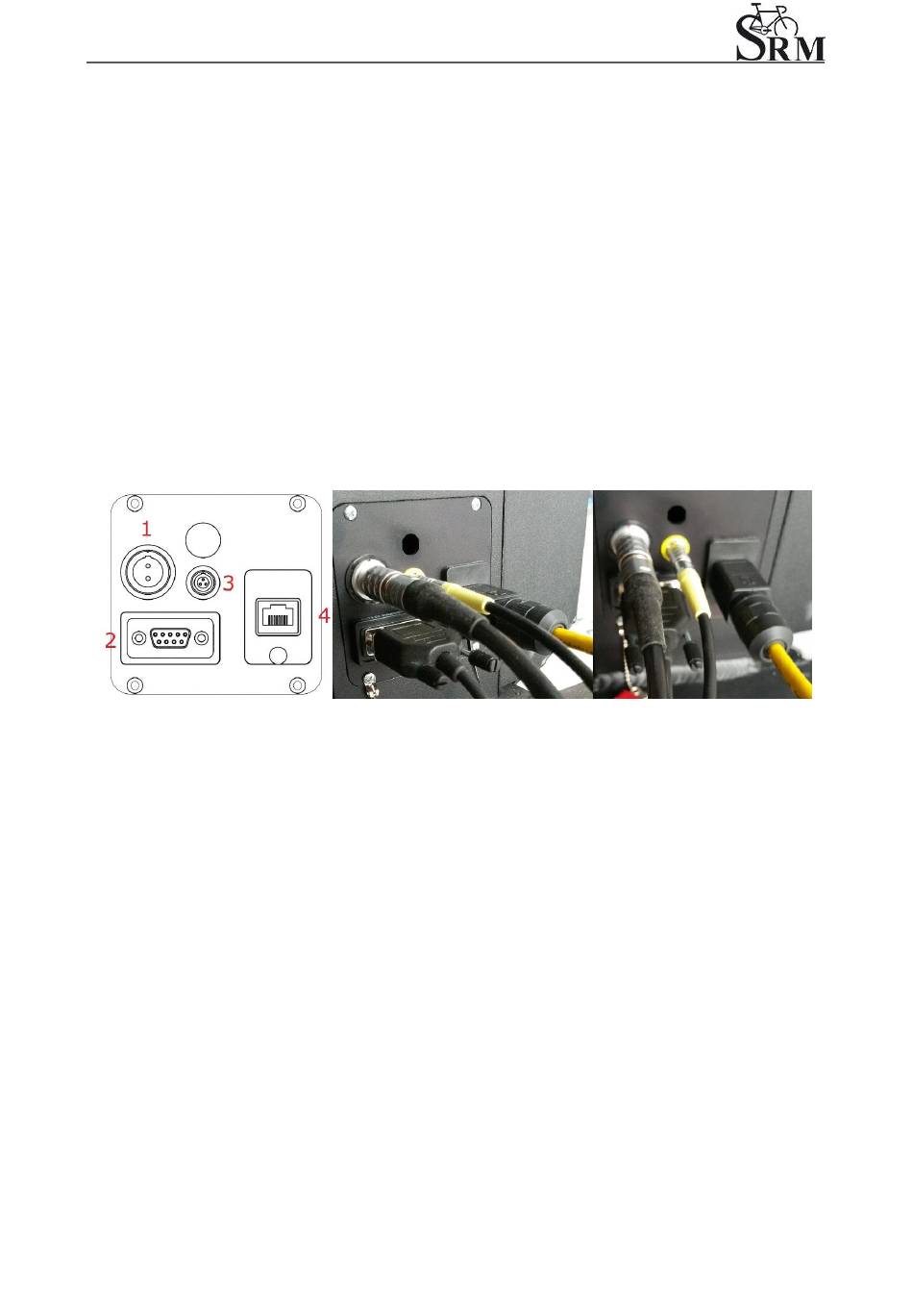

2. Connecting the Ergometer (Ports)

1- Power Supply
2- Serial Port
The serial port is only for the external control by CPX/CPET, EKG
or other medical devices by the so called "ergoline" protocol. The
idea is to specify the protocols in the CPX/CPET or EKG software
to be independend of the SRM Ergometer software.
Please connect the SRM ergometer via the serial port and the
USB-to-Serial Adapter to the controlling computer.
Please note: If you like to control the protocol by an external
device don't start the performance diagnostics in the SRM
ergometer software.
3- Torque Analysis
4- Ethernet Ergometer
