Short Manual

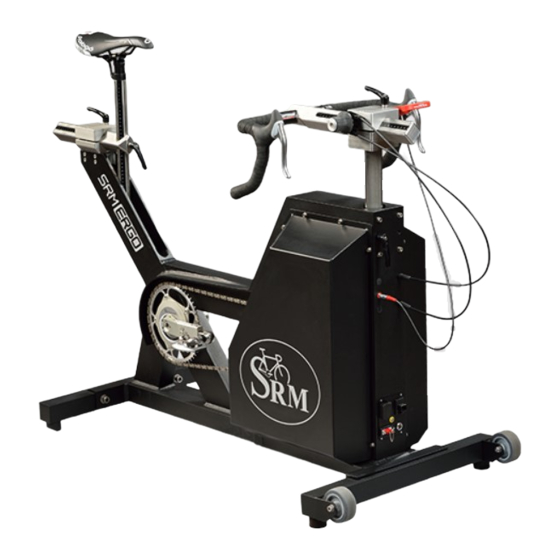

SRM - Ergometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ergometer and is the answer not in the manual?

Questions and answers

Related Manuals for SRM Ergometer

Summary of Contents for SRM Ergometer

  • Page 1 Short Manual SRM - Ergometer...

  • Page 2: Table Of Contents

     Verify Zero Offset ............8 SRM Online-Mode ......... 10 Client / Test person ........11 Settings SRM - Ergometer ......12  Bike fitting: transfer settings of client’s own bike to the sitting position ............... 13 Warm-up ............. 14 Setup of test protocol ........

  • Page 3: General Preparation

    Short Manual SRM – Ergometer General preparation • Power-on spiroergometry (30min before beginning of test) • Power-on ergometer’s power supply • Preparation diagnostic devices (Lactate analysis, etc.) 30min beginning of test • Room temperature (18 – 24°C) should measured • Relative air humidity should measure (30 –...
  • Page 4 Short Manual SRM – Ergometer...

  • Page 5: Settings Powercontrol Iv

    Short Manual SRM – Ergometer Settings Powercontrol IV  SRMWin-Software: On menu bar choose PC IV (Drop-down)  SRMWin-Software: Powercontrol – Setup...
  • Page 6 Short Manual SRM – Ergometer  Interval of storage: 1 second  Slope of Powermeter: see ,,Verify Slop” (page 5)  Circumference of tire: 1000 mm...

  • Page 7: Verify Slope (Slope Of Powermeter)

    Short Manual SRM – Ergometer  Verify slope (Slope of PowerMeter) Verify the slope before every test-day. The slope in the PowerControl and in the SRMWin-Software should correspond to the slope of the PowerMeter. You can find the correct PowerMeter slope located-at: 1.

  • Page 8: Verify Zero Offset

    Short Manual SRM – Ergometer  Verify Zero Offset Push, simultaneously, MODE and SET to switch the PowerMeter’s display to calibration mode For a manual comparison turn the unloaded crank in a clockwise direction to switch the PowerMeter Wait a few seconds...
  • Page 9 Short Manual SRM – Ergometer  Verify memory capacity and charge of battery of the PowerControl PowerControl: Push simultaneously MODE and PRO  If the memory capacity is full clear memory by:  SRMWin-Software – Powercontrol – Setup – Clear memory...

  • Page 10: Srm Online-Mode

    Short Manual SRM – Ergometer SRM Online-Mode  Change to the online mode by clicking on the icon ergometer...

  • Page 11: Client / Test Person

    • Data storing of the SRM to automatically save test data at the end of the test SRM – ergometer - software: Options – Extra – At Testend – Save Data – on  Click on Apply to save your settings Client / Test person •...

  • Page 12: Settings Srm - Ergometer

    Short Manual SRM – Ergometer Settings SRM - Ergometer • Verify gear (gear 9 red point corresponding) • Mount client’s pedals • Crank length set-up: Recommendation: if possible use same crank length as on client’s bicycle  Please consider maximum torque of the...

  • Page 13: Bike Fitting: Transfer Settings Of Client's Own Bike To The Sitting Position

    Short Manual SRM – Ergometer  Bike fitting: transfer settings of client’s own bike to the sitting position Saddle height The heel with the extended leg should reach the lowest position in the pedaling cycle. Saddle setback In the horizontal...

  • Page 14: Warm-Up

    Short Manual SRM – Ergometer Warm-up • Recommendation of at least 3 - 4 min with a low workload (e.g. 75-100W)  predefined warm-up • Check the correct settings for: Heartrate Cadence Power Speed...

  • Page 15: Setup Of Test Protocol

    Short Manual SRM – Ergometer Setup of test protocol • Determine the test protocol SRM – ergometer - software: Options - Mode Start Test by: Start Button or cadence Ergometer Mode: Predefined File Stop Test by: End Button or no cadence Training File: Open –...

  • Page 16: Start Performance Diagnostics

    Short Manual SRM – Ergometer Start performance diagnostics • Start by beginning to pedal or pushing the Start Button • Check the values displayed on the computer screen...

  • Page 17: End Of The Test

    Short Manual SRM – Ergometer End of the test • Stop the test SRM - ergometer - software: hit “Brake is on” button (continous recording of the heartrate - client can continue pedaling without resistance and cool down) SRM – ergometer - software: End Button Comment: entry file name then press Save •...

  • Page 18: Service

    Short Manual SRM – Ergometer Service Recommendation:  crank: send in for service every two years  ergometer: send in for service every four years 1. Could not found PowerControl at Computer  check that the USB Driver is correctly installed and working ...
  • Page 19 Short Manual SRM – Ergometer Contact person: Mirco Smerecnik Support SRM Ergometer SRM Performance Center Rudolf-Schulten-Str. 6 52428 Jülich Germany mobile: +49 (0)176 28 08 81 95 irco@srm.de eMail: m skype: mirco.smerecnik www.srm.de...
