Summary of Contents for Champion Power Equipment C44020

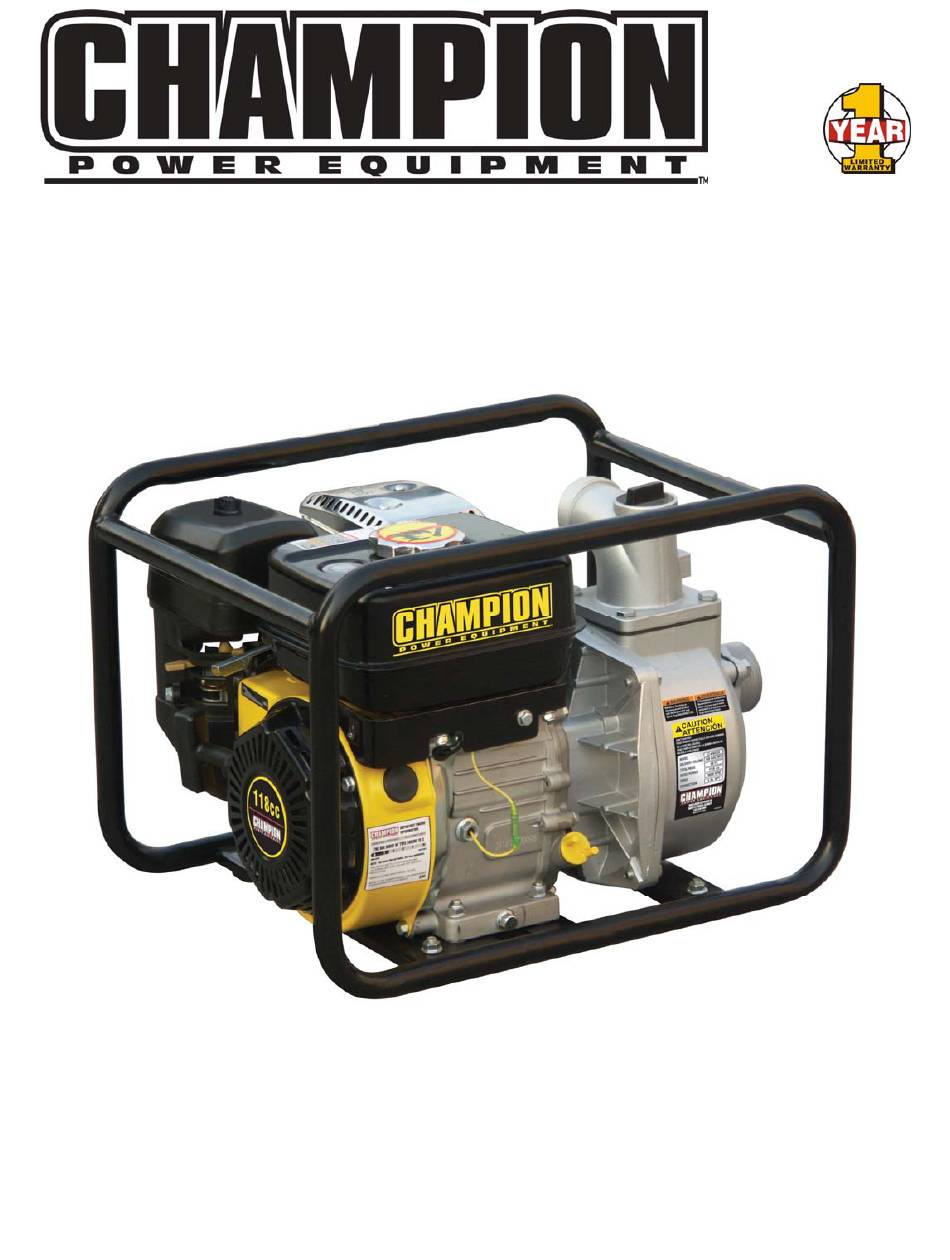

- Page 1 C44020 Rev C44020-20080908 10006 Santa Fe Springs Road Santa Fe Springs, CA 90670 USA Made in China Owner’s Manual and Operating Instructions 2” Semi-Trash Pump...
-
Page 3: Table Of Contents
Table of Contents Introduction ........1 Specifications ......... 13 2” Semi-Trash Pump ........ 1 Engine Specifications ......13 Accessories ..........1 Semi-trash pump Specifications ..... 13 This Booklet ..........1 Fuel ............13 ... -
Page 5: Introduction
Introduction Introduction Accessories Champion Power Equipment manufactures Congratulations on your purchase of a and sells accessories designed to help you Champion Power Equipment semi-trash get the most from your purchase. To find out pump. CPE designs and builds semi-trash more about our covers, hose kits and other pumps to strict specifications. -
Page 6: Manual Conventions
NOTE If you have questions regarding your semi-trash pump, we can help. Please call our help line at WARNING 1-877-338-0999. WARNING indicates a potentially hazardous could situation which, if not avoided, result in death or serious injury. Rev C44020-20080908... -
Page 7: Safety Rules
Operate semi-trash pump outdoors only in a well ventilated area DO NOT operate the semi-trash pump inside any building, enclosure or compartment. DO NOT allow exhaust fumes to enter a confined area through windows, doors, vents or other openings. Rev C44020-20080908... - Page 8 Water pumped through this unit shall not be moisture, dust, or dirt. used as drinking water. DO NOT allow any material to block the cooling slots. DO NOT use the semi-trash pump if: Equipment sparks, smokes or emits flames Equipment vibrates excessively Rev C44020-20080908...
-
Page 9: Controls And Features
Low Oil Sensor– Senses the level of oil in Pump Housing (7) – Impeller-based the crankcase and shuts the engine down if pump the level falls too low Oil Filler Cap (8) – Check and fill engine oil level Rev C44020-20080908... -
Page 10: Parts Included
Controls and Features Parts Included Your Model C44020 Gasoline Powered Semi-Trash pump ships with the following part: Oil Funnel 1 piece Rev C44020-20080908... -
Page 11: Assembly
3. Add 0.63 qt (0.6 L) of oil and replace oil DO NOT overfill the fuel tank. fill cap/dipstick. DO NOT light cigarettes or smoke when filling the 4. Check engine oil level daily and add as fuel tank. needed. Rev C44020-20080908... -
Page 12: Operation
Connecting Hoses (Not Included) Hoses are not included the following are examples of how to connect the hose to the water pump. Attach and thread the connector to the threaded flange (Figure 1). Figure 3 Rev C44020-20080908... -
Page 13: Starting The Engine
6. Pull the starter cord slowly until resistance is felt and then pull rapidly. 7. As engine warms up, move the choke lever to “Run” (to the right). 8. Move the throttle lever (Item A) to the “Fast” position. Rev C44020-20080908... -
Page 14: Maintenance
2. Allow the oil to drain completely. 3. Replace the drain plug. 4. Remove oil fill cap/dipstick to add oil. 5. Add 0.63 qt (0.6 L) of oil and replace oil fill cap/dipstick. 6. Dispose of used oil at an approved waste management facility. Rev C44020-20080908... -
Page 15: Cleaning
Follow the service intervals indicated in the schedule below. Service your semi-trash pump more frequently when operating in adverse conditions. Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer for your semi-trash pump or engine maintenance needs. Rev C44020-20080908... -
Page 16: Storage
5. Store the unit in a clean, dry area. forming. 6. Store in a clean, dry place out of direct 4. Add a fuel stabilizer into the fuel tank. sunlight. 5. Change the oil. Rev C44020-20080908... -
Page 17: Specifications
Intake 0.13-0.17mm (0.005 – 0.007 in.) Exhaust 0.18-0.22mm (0.007 – 0.009 in.) Fuel Fuel capacity is 0.6 US gallons (2.25 L). Use regular unleaded gasoline with a minimum octane rating of 85. Oil capacity is 0.63 qt (0.6 L). Rev C44020-20080908... -
Page 18: Parts Diagram
Specifications Parts Diagram Rev C44020-20080908... -
Page 19: Parts List
Plug “O” Seal WP-20-1000207 Plug WP-20-1000209 Non return Vale WP-20-1000206- CPE Flume(NPT) GB5789-86- M8×20 Flange Bolt M8×20 WP-20-1000204 Seal Packing WP-20-1000203- CPE Elbow Draft Tube(NPT) GB5780-86- M8×25 Flange Bolt M8×25 WP-20-2000001 Flame Rubber GB6177-86- M8 Nut M8 WP-20-2000100- M Flame Rev C44020-20080908... -
Page 20: Troubleshooting
Suction hose out of water Place suction hose under the surface of the water Head limit exceeded Relocate pump so suction head is less than discharge head (maximum 98 feet) Air leak Tighten connectors and clamps or replace seal packing Rev C44020-20080908... -
Page 21: Warranty
Warranty Qualifications This warranty excludes: Cosmetic defects such as paint, decals, etc. Champion Power Equipment (CPE) will register this Wear items such as filter elements, o-rings, etc. warranty upon receipt of your Warranty Registration Accessory parts such as starting batteries, storage Card and a copy of your sales receipt from one of CPE's covers and hose kits. -
Page 22: Notes
Notes Notes Rev C44020-20080908...
