OWNER'S MANUAL & OPERATING INSTRUCTIONS
2 IN. WATER TRANSFER PUMP WITH
HOSE KIT
Capable of solids up to 9/16 in. diameter (Semi-Trash)
MODEL NUMBER
66520
12039 Smith Ave.
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 66520-20160315
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion Power Equipment 66520
Summary of Contents for Champion Power Equipment 66520

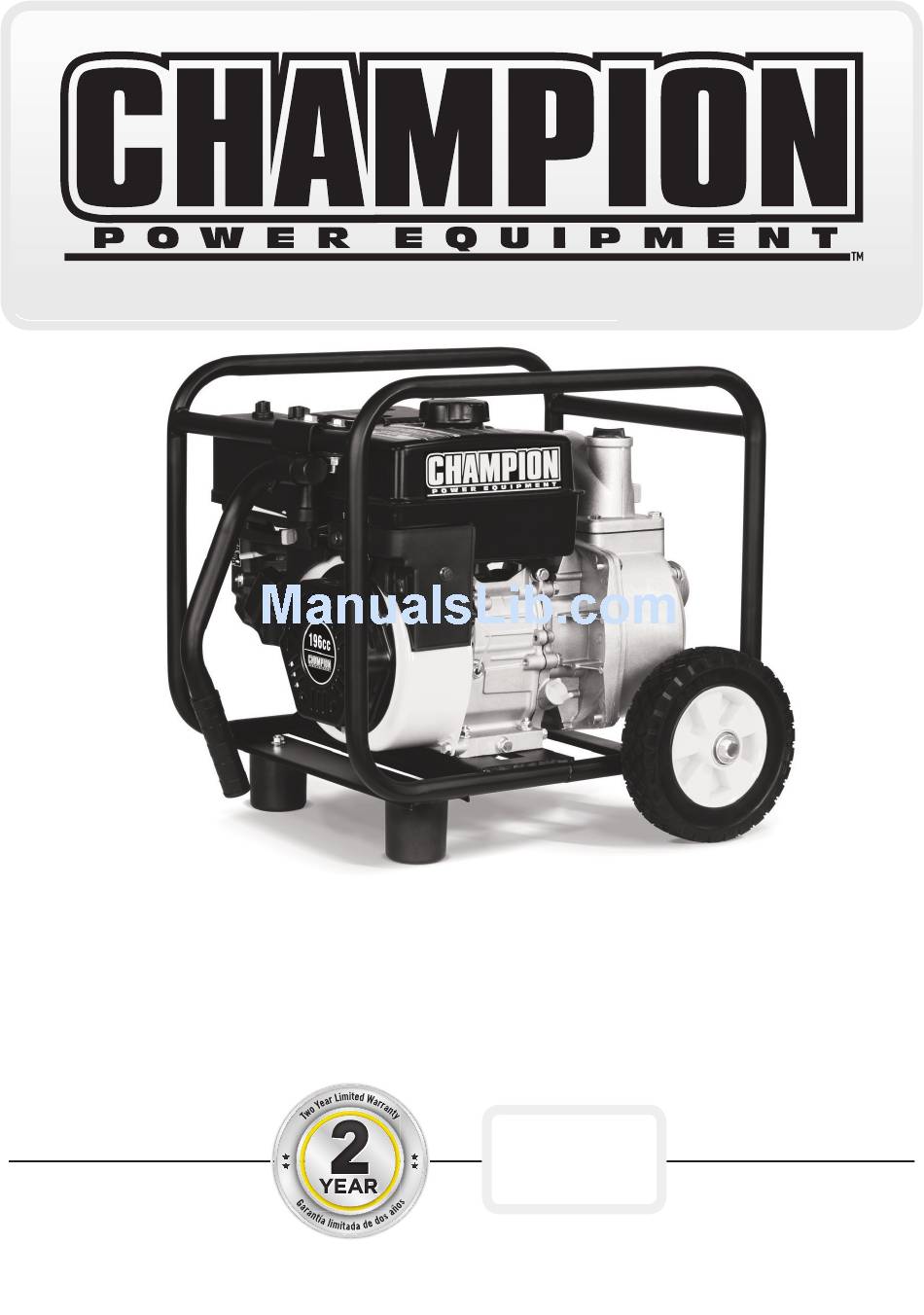

- Page 1 Capable of solids up to 9/16 in. diameter (Semi-Trash) MODEL NUMBER 66520 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 66520-20160315 www.championpowerequipment.com...
- Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
66520 2 IN. WATER TRANSFER PUMP WITH HOSE KIT Capable of solids up to 9/16 in. diameter (Semi-Trash) TABlE OF CONTENTS Introduction ...... -
Page 4: Introduction
It is designed to pump clear water only. Record the model and serial numbers as well as date and place of purchase for future reference. Have this information available when ordering parts and when making technical or warranty inquiries. Champion Power Equipment Support 1-877-338-0999 Model Number... -
Page 5: Manual Conventions
66520 ENGLISH MANUAl CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 6: Safety Rules
66520 ENGLISH SAFETy RUlES WARNING DANGER Read this manual thoroughly before operating your Rotating parts can entangle hands, feet, hair, water transfer pump. Failure to follow instructions clothing and/or accessories. could result in serious injury or death. Traumatic amputation or severe laceration can result. - Page 7 66520 ENGLISH SAFETy RUlES WARNING DANGER DO NOT pump salt, sludge, sewer, sea, or any other Fuel and fuel vapors are highly flammable and extremely explosive. type of water containing solid material. Fire or explosion can cause severe burns or death.
-
Page 8: Controls And Features
66520 ENGLISH CONTROlS AND FEATURES Read this owner’s manual before operating your water transfer pump. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Water Transfer Pump Fuel Tank – 0.9 gal. (3.4 L) capacity fuel tank. -
Page 9: Parts Included
66520 ENGLISH CONTROlS AND FEATURES Parts Included Your model 66520 gasoline powered Water transfer pump ships with the following parts: Wheel Kit – 8 in. (20.3 cm) Wheel .... -
Page 10: Assembly
66520 ENGLISH ASSEMBly Install the Vibration Mounts Your water transfer pump requires some assembly. This unit ships from our factory without oil. It must be 1. Attach the support leg with rubber vibration mounts properly serviced with fuel and oil before operation. -
Page 11: Add Engine Oil
66520 ENGLISH ASSEMBly Add Engine Oil Add Engine Oil Cont’d. CAUTION CAUTION DO NOT attempt to crank or start the engine before The engine is equipped with a low oil shut-off and it has been properly filled with the recommended will stop when the oil level in the crankcase falls type and amount of oil. -
Page 12: Add Fuel
66520 ENGLISH ASSEMBly Add Fuel Add Fuel Cont’d. 1. Use clean, fresh, regular unleaded fuel with a NOTE minimum octane rating of 85 and an ethanol content of less than 10% by volume. Our engines work well with 10% or less ethanol 2. -
Page 13: Operation
66520 ENGLISH OPERATION Water Transfer Pump location Connecting a Hose Kit Cont’d. Place the water transfer pump in a well ventilated area. DO NOT place the water transfer pump near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. -
Page 14: Priming Pump
66520 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Priming the Pump Cont’d. Located on the outlet flange is the priming plug. Remove the priming plug and fill pump body to the very top of outlet flange with water. Reinstall the priming plug. -
Page 15: Stopping The Engine
To alleviate high altitude issues other than the natural the “Run” position for up to the next 3 pulls of the power loss, Champion Power Equipment can provide a recoil starter. Too much choke leads to spark plug high altitude carburetor main jet. The alternative main... -
Page 16: Maintenance And Storage
66520 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. NOTE WARNING Once oil has been added, a visual check should show oil about 1-2 threads from running out of the fill hole. Never operate a damaged or defective water pump. -
Page 17: Air Filter
CAUTION Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer DO NOT spray engine with water. for your water pump or engine maintenance needs. Water can contaminate the fuel system. -
Page 18: Storage
66520 ENGLISH MAINTENANCE AND STORAGE Storage Water transfer pump Storage For longer term storage, please follow these guidelines. 1. Allow the water pump to cool completely before storage. NOTE 2. Turn off the fuel supply at the fuel valve. Engine switch should be in the “OFF” position while pulling 3. -
Page 19: Specifications
OEM spark plug: NHSP F6RTC An Important Message About Temperature Replacement spark plug: NGK BPR6ES or equivalent Your Champion Power Equipment product is designed Make certain the spark plug gap is 0.7 - 0.8 mm or and rated for continuous operation at ambient (0.028 - 0.031 in.). -
Page 20: Parts Diagram
66520 ENGLISH SPECIFICATIONS Parts Diagram... -
Page 21: Parts List
66520 ENGLISH Parts list Part Number Description 26.109 Engine 202.251303.00 Pump Base 1.5789.0855 Flange Bolt M8 × 55 202.251002.00 Washer Ø8, Copper 202.250002.02 Seal, Water Seal 202.250300.02 Water Seal 202.251301.02 Friction Piece 202.251302.00 Seal, Friction Piece 202.251106.00 Impeller 202.251202.00 Cover, Impeller 202.251203.00... -
Page 22: Engine Parts Diagram
66520 ENGLISH SPECIFICATIONS Engine Parts Diagram... -
Page 23: Engine Parts List
66520 ENGLISH Engine Parts list Part Number Description Part Number Description 1.5789.0608 Flange Bolt M6×8 1.5789.0855 Flange Bolt M8×55 22.061100.00.2 Recoil Starter Cover, Black 23.040017.00 Oil Seal, Valve 21.061005.00 Recoil Starter Spring 21.040003.00 Valve Spring 2.10.003 Rope (Ø5×1550) 21.040007.00 Retainer, Exhaust Valve Spring (Up) 21.061001.01... -
Page 24: Troubleshooting
66520 ENGLISH TROUBlESHOOTING Problem Cause Solution Water transfer pump will not start No fuel Add fuel Faulty spark plug Replace spark plug Water transfer pump will not start; Water Low oil level Fill crankcase to the proper level; place transfer pump starts but runs roughly... -
Page 25: Customer Service
Warranty Qualifications – Failures due to acts of God and other force majeure events Champion Power Equipment (CPE) will register this warranty upon beyond the manufacturer’s control. receipt of your Warranty Registration Card and a copy of your sales –... - Page 26 United States Environment Protection Agency (U.S. EPA) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2016 small off-road engine and engine powered equipment.
- Page 27 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 28 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
