Champion Power Equipment 100113 Owner's Manual

2 inch semi-trash water transfer pump with hose kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

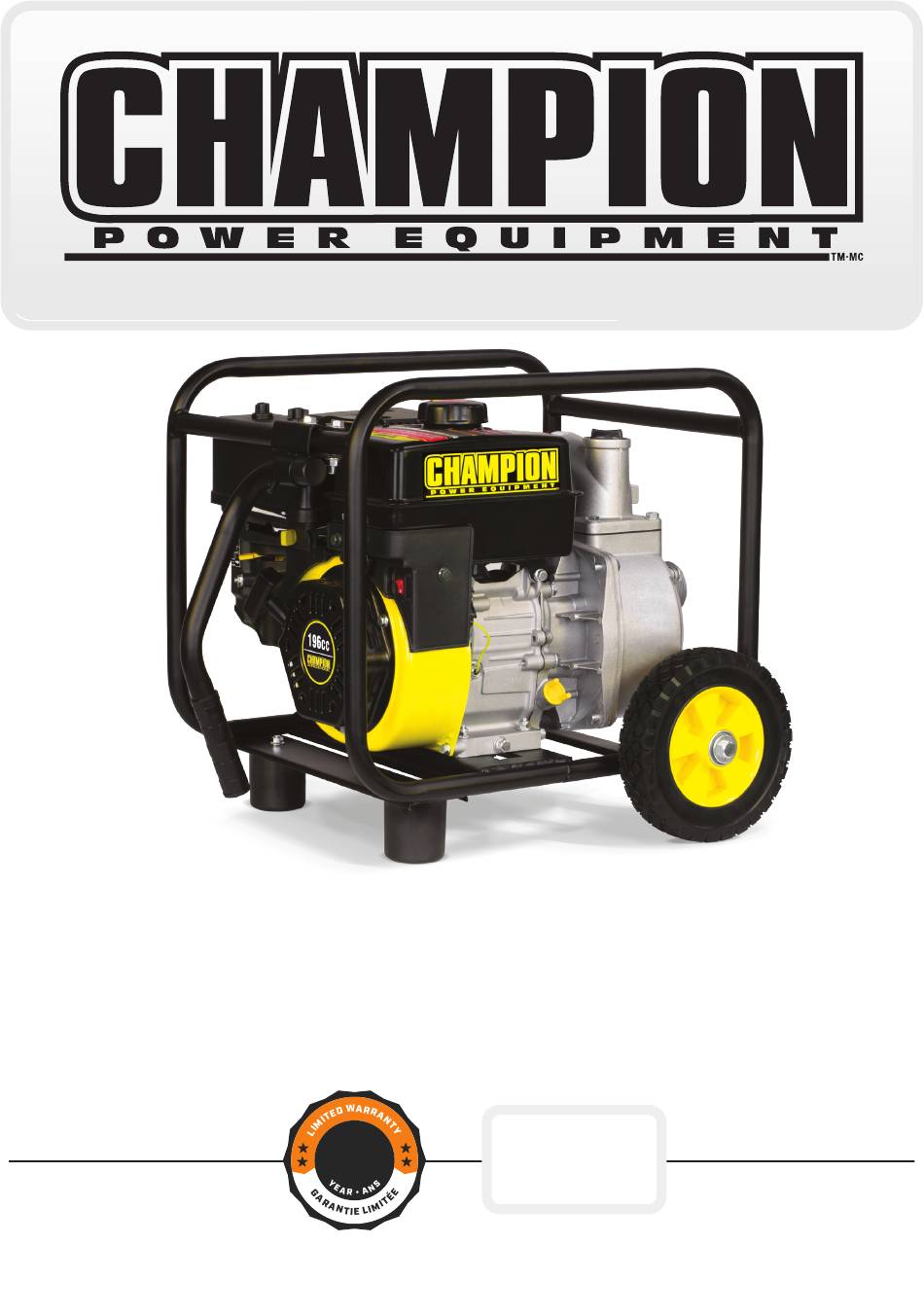

2 INCH SEMI-TRASH WATER TRANSFER
1
PUMP WITH HOSE KIT
1
SAVE THESE INSTRUCTIONS
Important safety instructions
are included in this manual.
WARRANTY
Scale = 1.5-1.75 in. diameter
2
2
2
3
3
3
MODEL NUMBER
100113
REV 100113-20201029
OWNER'S MANUAL
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Champion Power Equipment 100113

Summary of Contents for Champion Power Equipment 100113

  • Page 1 Scale = 1.5-1.75 in. diameter 2 INCH SEMI-TRASH WATER TRANSFER SPANISH PUMP WITH HOSE KIT MODEL NUMBER 100113 FRENCH 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important safety instructions USA / 1-877-338-0999 are included in this manual. REV 100113-20201029 www.championpowerequipment.com...
  • Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.

  • Page 3: Table Of Contents

    100113 2 INCH SEMI-TRASH WATER TRANSFER PUMP WITH HOSE KIT TABlE OF CONTENTS Introduction ......

  • Page 4: Introduction

    ENGLISH INTRODUCTION Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.

  • Page 5: Manual Conventions

    100113 ENGLISH MANUAl CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.

  • Page 6: Safety Rules

    100113 ENGLISH SAFETy RUlES WARNING DANGER Read this manual thoroughly before operating your Rotating parts can entangle hands, feet, hair, semi-trash pump. Failure to follow instructions clothing and/or accessories. could result in property damage, serious injury or Traumatic amputation or severe laceration can result.
  • Page 7 100113 ENGLISH SAFETy RUlES WARNING DANGER DO NOT pump salt, sludge, sewer, sea, or any other Fuel and fuel vapors are highly flammable and extremely explosive. type of water containing solid material. Fire or explosion can cause severe burns or death.

  • Page 8: Controls And Features

    100113 ENGLISH CONTROlS AND FEATURES Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Semi-trash pump Fuel Tank – 0.9 gal. (3.4 L) capacity fuel tank.

  • Page 9: Parts Included

    100113 ENGLISH CONTROlS AND FEATURES Parts Included Your model 100113 gasoline powered semi-trash pump ships with the following parts: Wheel Kit – 8 in. (20.3 cm) Wheel ....

  • Page 10: Assembly

    100113 ENGLISH ASSEMBly Install the Vibration Mounts Your semi-trash pump requires some assembly. This unit ships from our factory without oil. It must be properly 1. Attach the support leg with rubber vibration mounts serviced with fuel and oil before operation.

  • Page 11: Add Engine Oil

    100113 ENGLISH ASSEMBly Add Engine Oil Add Engine Oil Cont’d. CAUTION CAUTION DO NOT attempt to crank or start the engine before The engine is equipped with a low oil shut-off and it has been properly filled with the recommended will stop when the oil level in the crankcase falls type and amount of oil.

  • Page 12: Add Fuel

    100113 ENGLISH ASSEMBly Add Fuel Add Fuel Cont’d. 1. Use clean, fresh, regular unleaded fuel with a WARNING minimum octane rating of 87 and an ethanol content of less than 10% by volume. Pouring fuel too fast through the fuel screen may 2.

  • Page 13: Operation

    100113 ENGLISH OperatiOn Semi-trash pump Location Connecting a Host Kit Cont’d. Place the semi-trash pump in a well ventilated area. DO Connect the Discharge Hose (Blue) NOT place the semi-trash pump near vents or intakes 1. Locate (1) of the following: outlet hose adapter (C),...
  • Page 14 100113 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Connecting a Hose Kit Cont’d. Connect the Suction Hose (Green) and Suction 4. Slide the blue discharge hose over the outlet hose Filter fitting. 1. Locate the following: cam lock coupler (coupler and...
  • Page 15 100113 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Connecting a Hose Kit Cont’d. 4. Mark the second rib on the coupler on the hose. NOTICE You may use a small amount of dish soap on the cam lock coupler to help ease the green hose on the fitting.
  • Page 16 100113 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Connecting a Hose Kit Cont’d. 10. Tighten each clamp to 11.1±1.5 lbf-ft (15±2 Nm) 13. Wrap the green inlet clockwise with the Teflon tape ® with a 10mm socket and 3/8” drive ratchet until provided with 4 complete wraps.

  • Page 17: Priming The Pump

    100113 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Connecting a Hose Kit Cont’d. 20. Slide the clamp just before the end of the green NOTICE hose. If the cam levers do not clamp down completely, rotate and align the clamp bolts so you have clearance for the cam levers to lock.

  • Page 18: Starting The Engine

    100113 ENGLISH OPERATION Priming the Pump Cont’d. Starting the Engine Cont’d. Located on the outlet flange is the priming plug. NOTE Remove the priming plug and fill pump body to the very If the engine starts but does not run make certain top of outlet flange with water.

  • Page 19: Operation At High Altitude

    To alleviate high altitude issues other than the natural power loss, Champion Power Equipment can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.

  • Page 20: Maintenance And Storage

    100113 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. NOTE WARNING Once oil has been added, a visual check should show oil about 1-2 threads from running out of the fill hole. Never operate a damaged or defective semi-trash pump.

  • Page 21: Air Filter

    CAUTION Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer DO NOT spray engine with water. for your semi-trash pump or engine maintenance needs. Water can contaminate the fuel system.

  • Page 22: Storage

    100113 ENGLISH MAINTENANCE AND STORAGE Storage Winter Storage Protect your semi-trash pump parts from freezing. For longer term storage, please follow these guidelines. 1. Apply all storage instructions from previous sections. Engine Storage 2. Make sure semi-trash pump hose is free of all water 1.

  • Page 23: Specifications

    .26 ft. (7.9 m) – Max Delivery Volume ..158 gal/min (598 L/min) Your Champion Power Equipment product is designed – Max Solid Waste ..9/16 in. diameter (1.4 cm) and rated for continuous operation at ambient –...

  • Page 24: Parts Diagram

    100113 ENGLISH SPECIFICATIONS Parts Diagram...

  • Page 25: Parts List

    100113 ENGLISH Parts list Part Number Description Part Number Description 26.109 Engine, 196cc 1.5782.10105 Bolt M10 x 105 1.5789.0835 Flange Bolt M8 x 35 202.251303.00 Pump Base 1.5789.0855 Flange Bolt M8 x 55 1.5789.0825 Flange Bolt M8 x 25 252.201400.02 Vibration Mount, Support Leg 202.251002.00...

  • Page 26: Engine Parts Diagram

    100113 ENGLISH SPECIFICATIONS Engine Parts Diagram...

  • Page 27: Engine Parts List

    100113 ENGLISH Engine Parts list # Part Number Description Part Number Description 1.5789.0608 Flange Bolt M6 x 8 21.040003.00 Spring, Valve 22.061100.00.2 Cover, Recoil Starter, Black 21.040007.00 Retainer, Exhaust Valve Spring 21.061005.00 Spring, Recoil Starter 21.040001.00 Retainer, Intake Valve Spring 2.10.003.1...
  • Page 28 100113 ENGLISH TROUBlESHOOTING Problem Cause Solution Semi-trash pump will not start No fuel Add fuel Faulty spark plug Replace spark plug Semi-trash pump will not start; Semi-trash Low oil level Fill crankcase to the proper level; place pump starts but runs roughly...
  • Page 29 Consequential Damage CPE warrants to the original purchaser that the mechanical and Champion Power Equipment disclaims any obligation to cover electrical components will be free of defects in material and any loss of time, use of this product, freight, or any incidental workmanship for a period of two years (parts and labor) from or consequential claim by anyone from using this product.
  • Page 30 AND THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2020 small off-road engine (SORE) and engine powered equipment.
  • Page 31 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 32 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
