Tools Required: Phillips head screwdriver, small wrench or nutdriver
Time Required: About 15 minutes
NOTE: Replacement batteries are fully charged when shipped from LI-COR. After this battery replacement procedure is
completed, the LI-3000C is ready for normal use. The LI-3000C uses a sealed lead-acid battery that should be recycled or
disposed of properly.
Follow these steps to replace the rechargeable battery pack in the LI-3000C:
I
1.

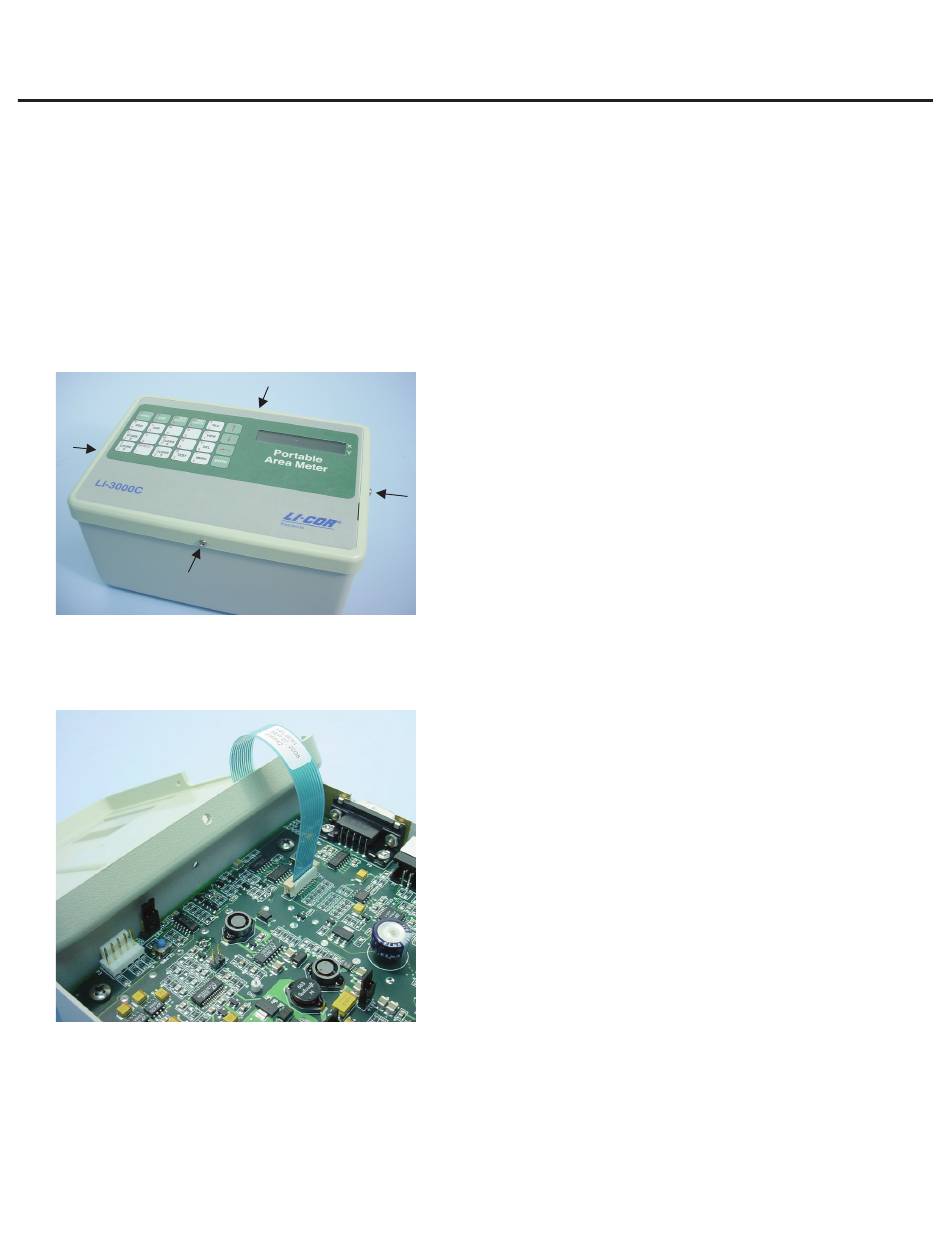

Remove the four screws on each side of the LI-3000C top panel/keypad.
2.
Carefully lift the top panel away from the enclosure; be cautious of the ribbon cable that is connected to the main PC
board.
3.
Lift the retainer clip on the ribbon cable connector, and pull the ribbon cable up and out of the connector. Set the top
panel/keypad assembly aside.

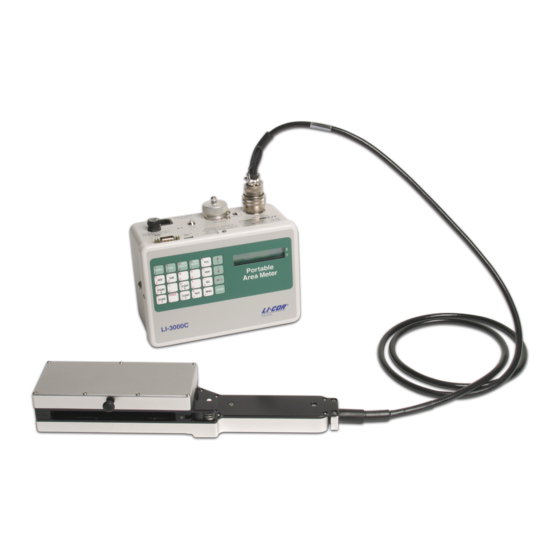

LI-3000C Portable Area Meter
Battery Replacement Instructions
1
