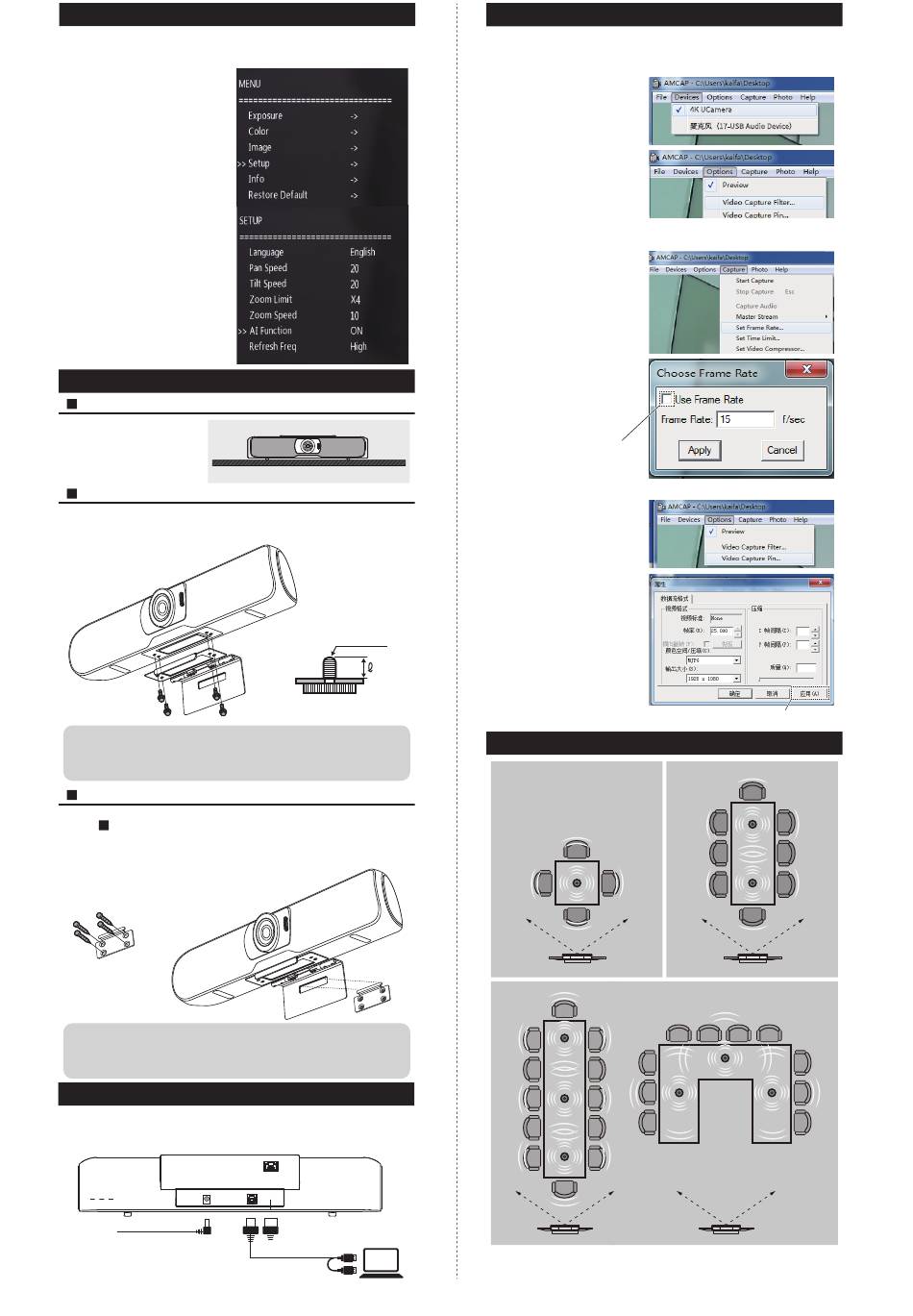

infobit BV40 Quick Start Manual page 2

Auto-Framing
VB40 support Auto-Framing camera control, automatically moves the lens and
adjusts the zoom to comfortably frame meeting participants in rooms of all
shapes and sizes.
❶
Press "Camera functions menu"
(center), select " Setup"
❷
Select " AI Function" to "ON",
Auto-Framing function turns on.
AI "Refresh Freq" is adjustable
"Low/Mid/High".
Installation instruction
1
Desktop installation
Put the device on the table or
screen and make sure the
horizontal installation.
2
Bracket installation
Screw the bracket to the screw hole at the bottom of the device and tighten it.
Then the user can install a bracket at the bottom of the device. The screws of
the bracket must meet the following specifications.
Note:
The bracket must be installed on the flat surface.
①
The screws on the bracket of the video conference camera can't be used
②
on the higher place, just like the ceiling mount or partition mount.
3
Wall mount
❶Install the bracket at the bottom of the camera according to
2
Bracket installation
the .
❷Screw the bracket on the wall, refer to the following picture 1.
❸Fasten the camera with bottom bracket on the wall mount, refer to the
following picture 2.
(Picture 1) (Picture 2)
Note:
The wall mounted bracket must be flat
③
The wall bracket is used in conjunction with the bracket. The device must
④
install the bracket
Connect to the computer
❶
Connect the 12V power supply to the camera.
Connect the standard USB cable with the camera and computer or other host
computer. Refer to the following picture:
DC 12V power supply
Horizontal placement
φ=3mm
L=6mm
Screw specification
LAN(H Series only)
USB 3.0/2.0 cable
Video instruction
This device output video through USB. And it supports standard UVC protocol. All
the software which support the UVC protocol can collect the video of this device.
1) Demonstrate the video usage of the device with common software AMCAP.
❶
Open the AMCAP (available in
the CD) and click the Devices.
Then choose the 4K UCamera
(or the similar option)
❷
Click the Options and choose
Preview. Then the user can
preview the video. Refer to
the right picture.
2) If the frame rate is not enough, the user can check whether the " Use Frame
Rate" is ticked off. If yes, please cancel the tick
❶
Click the Capture and then
choose Set Frame Rate
❷
In Choose Frame Rate, check
whether the "Use Frame Rate"
is ticked off. If yes, please
cancel the tick. And then click
the Apply
Cancel the tick in the frame
3) Change the different resolution and frame.
❶
Click the Options and choose
Video Capture Pin...,
❷
Set the different resolution
and frame according the
user's requirement. And
then click Apply
How is working in meeting rooms ?
1 microphone
4K UCamera
麦克风（17-USB Audio Device）
Click Apply
2 microphones
3 microphones
